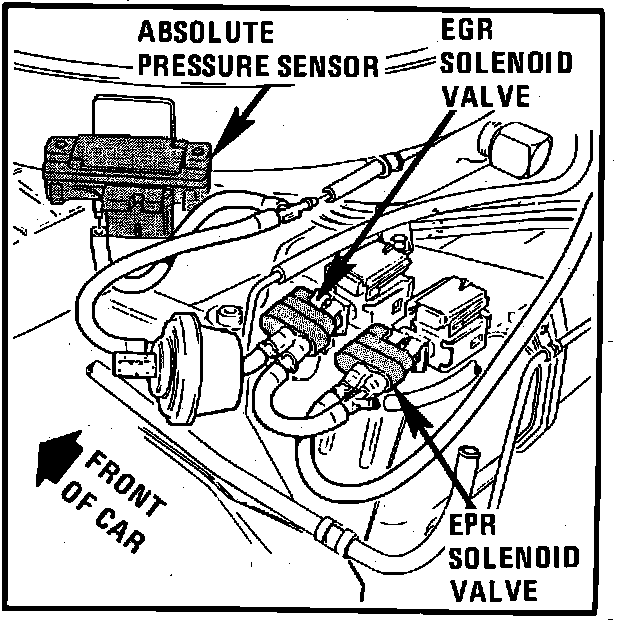

Manifold Pressure/Vacuum Sensor: Locations

Top LH Side Of Engine.:




Upper RH Engine Cowl, On Bracket

Applicable to: 1984 Celebrity w/Diesel
