FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 1983 >> Cavalier L4-121 2.0L VIN P TBI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

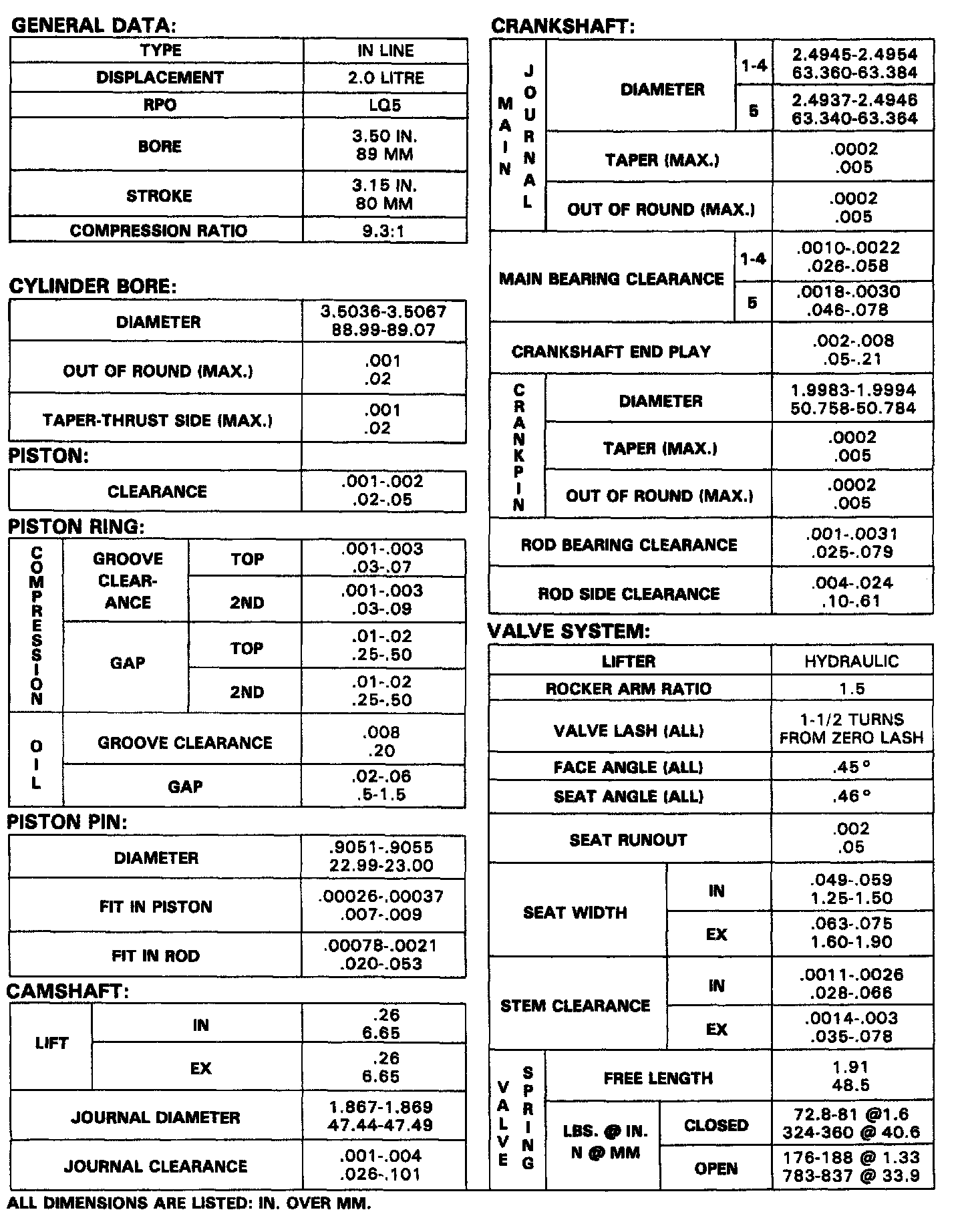

Engine Specifications:

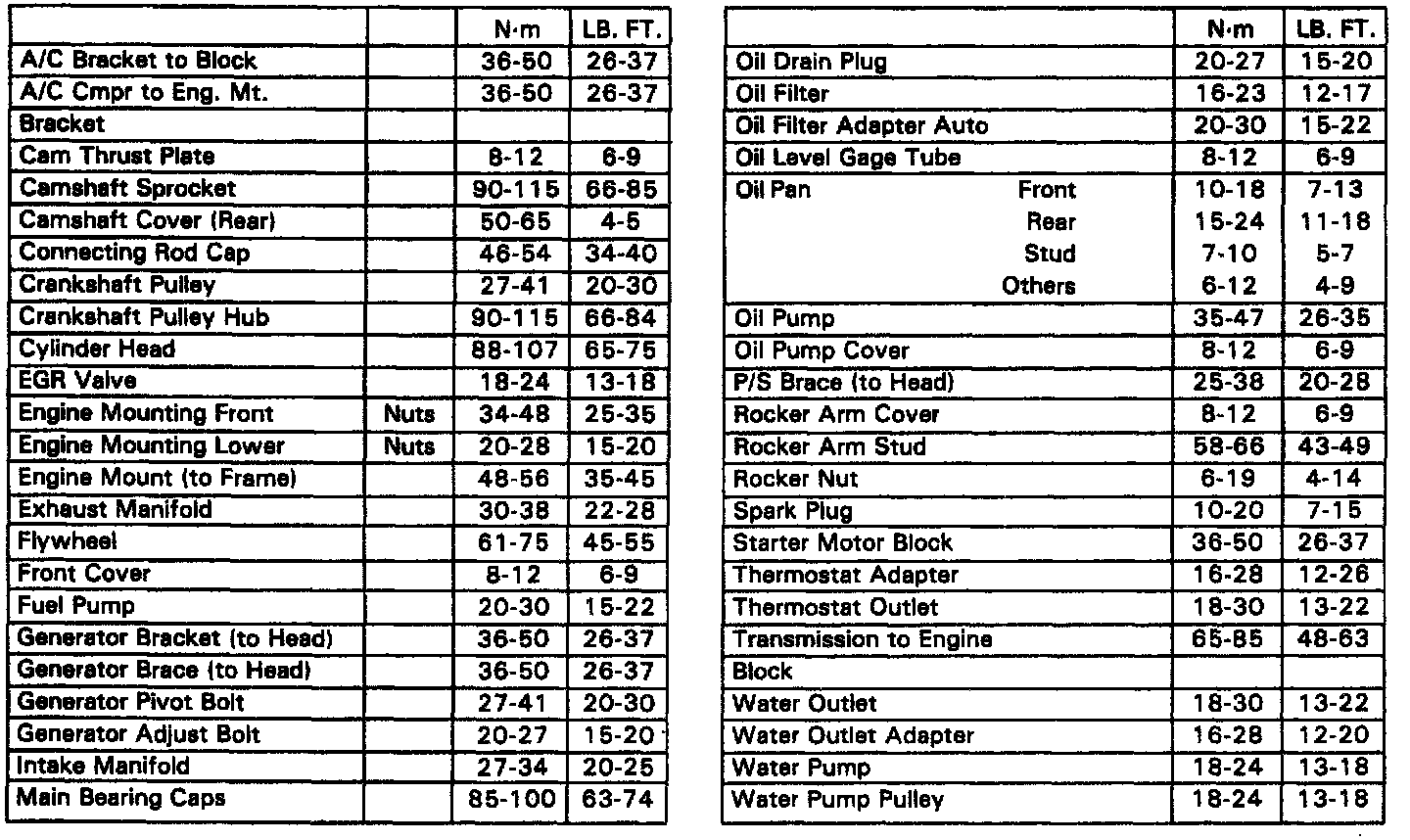

Torque Specifications:

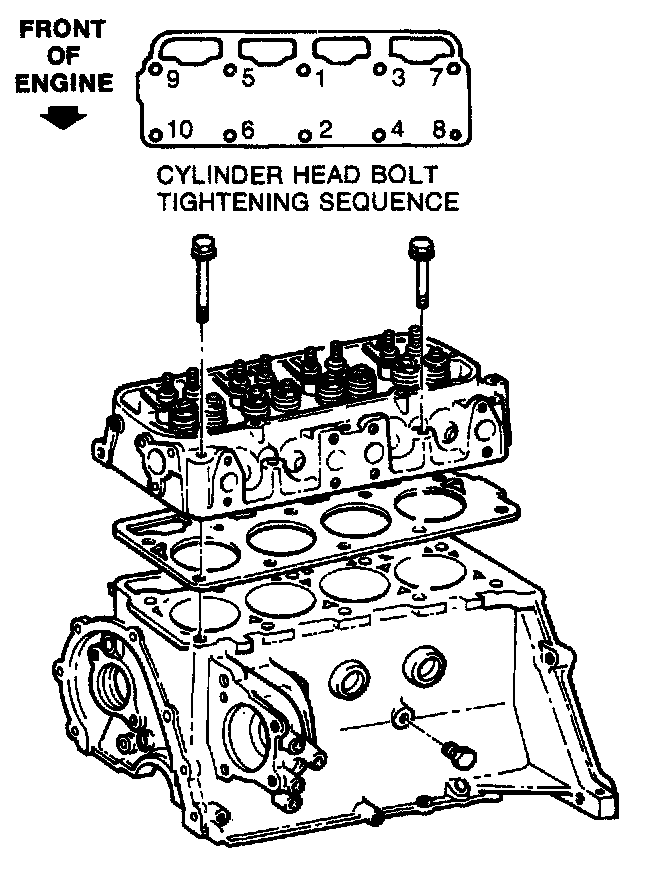

Cylinder Head Sequence:
