FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1982
>>
Chevette L4-111 1.8L DSL
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transmission and Drivetrain
>>
System Specifications
>>
Differential
>>
Clearance and Design Specifications
Clearance and Design Specifications
Specifications

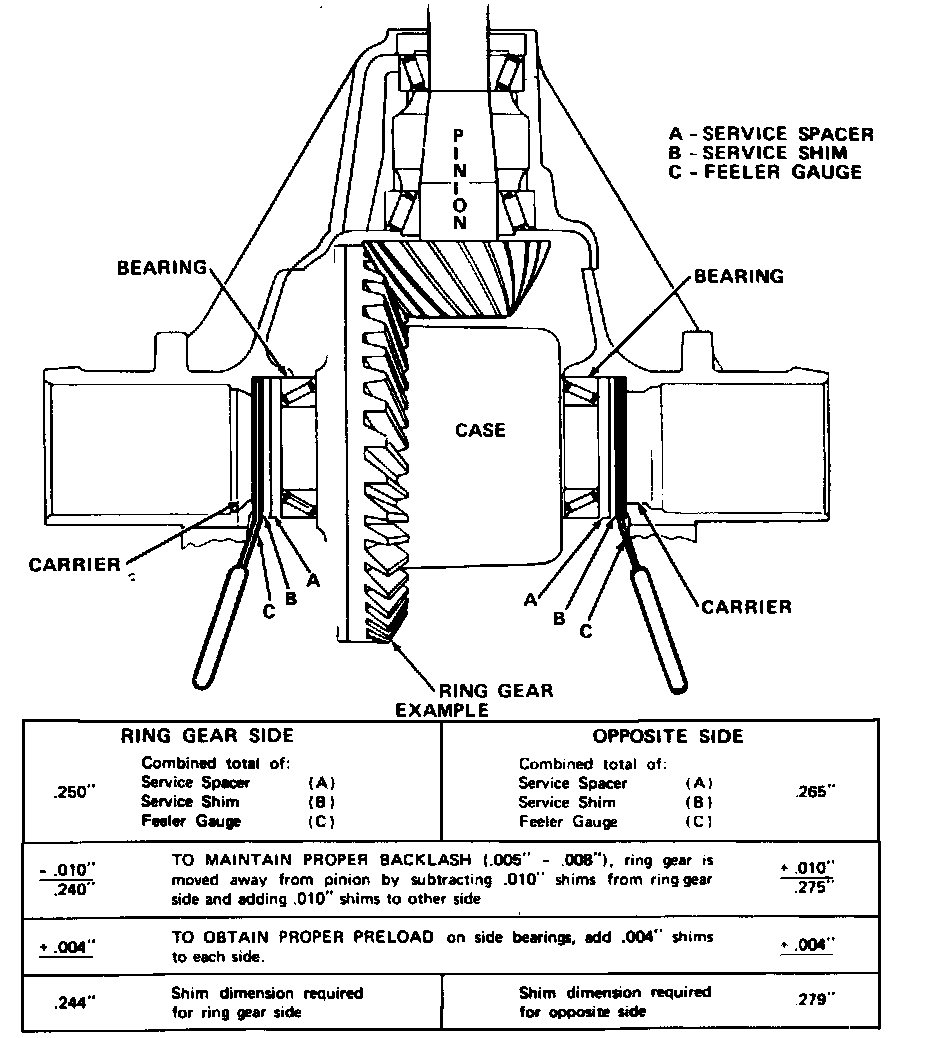

Side Bearing Shim Requirements:
Specifications Chart:

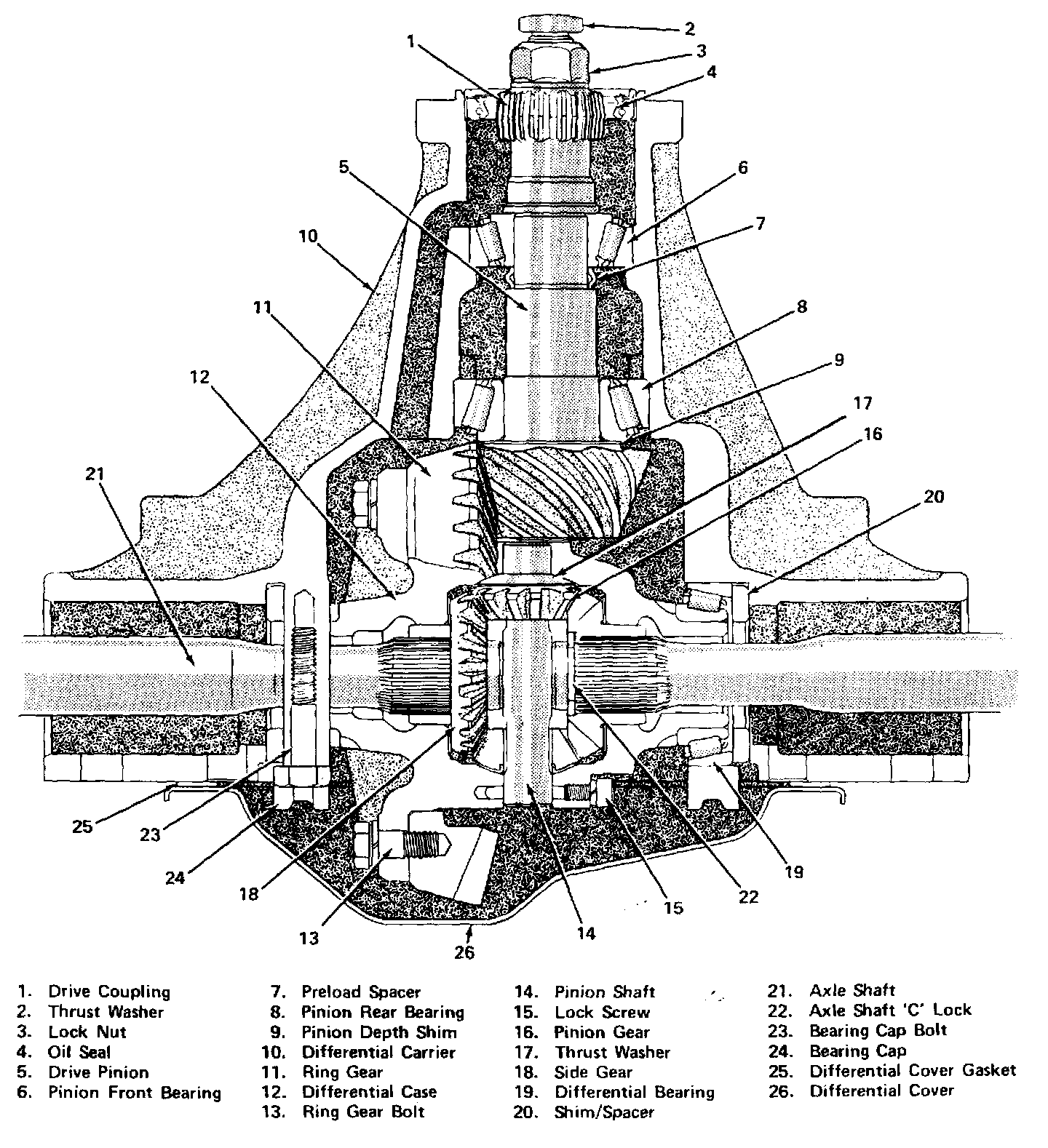

Differential Cross Section:
