Tilt Column - Floor Shift - Without Key Release
Tilt Column - Floor Shift - Without Key Release

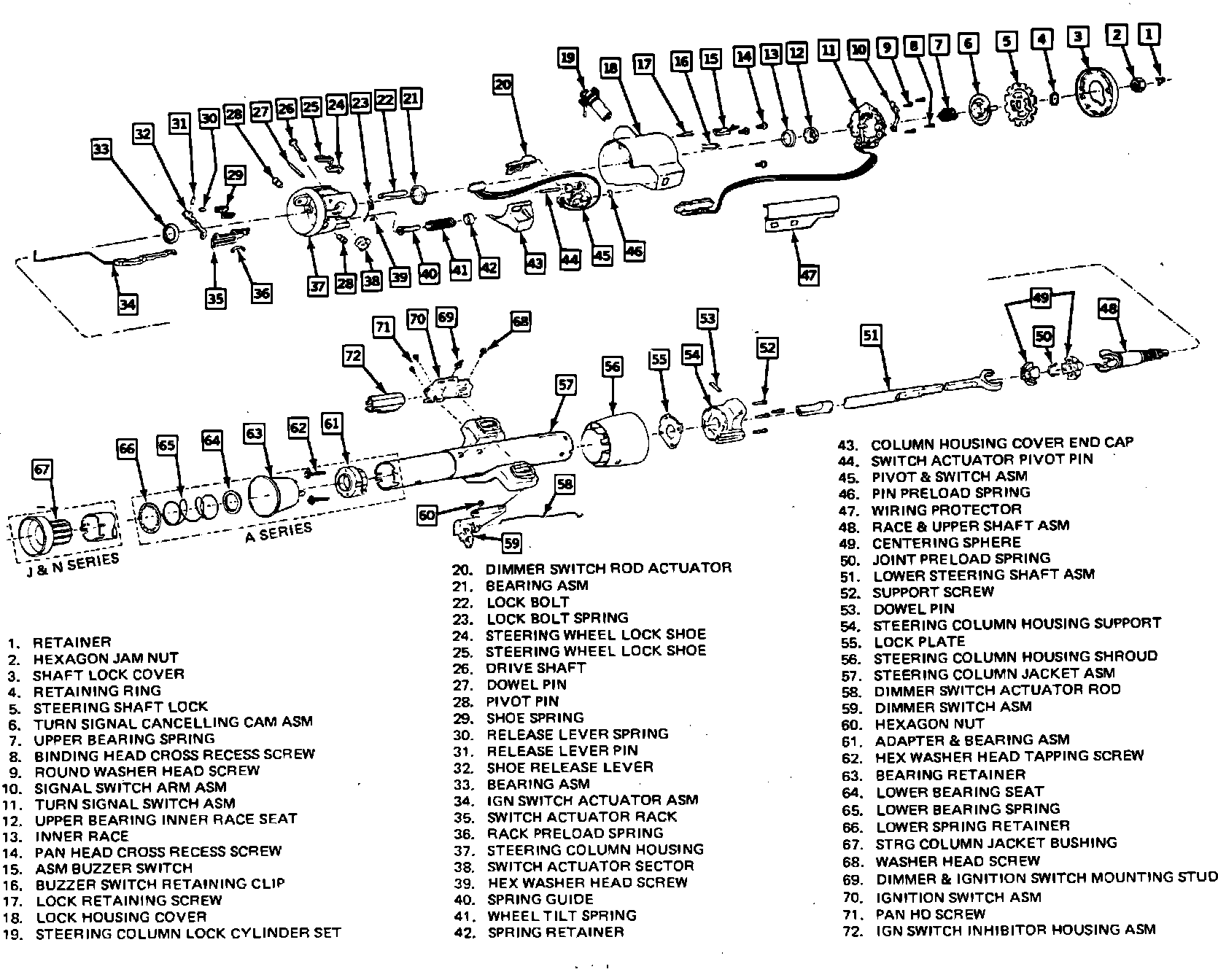

Fig. 23 Tilt steering column exploded view. Models w/floor shift less key release, exc. 1985---88 Nova:
