Torque Specifications



125c

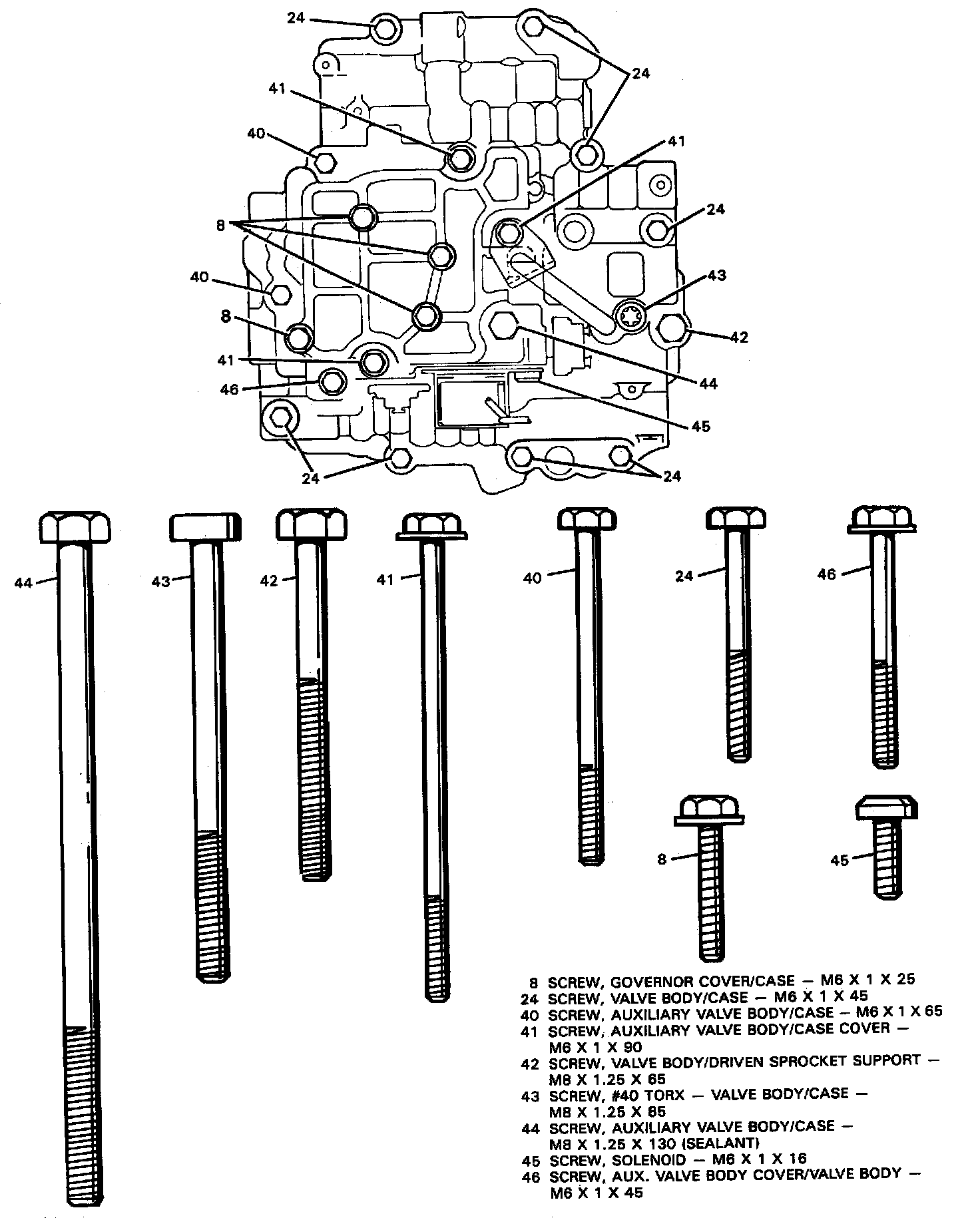

Valve Body Bolt Specifications:





Engine To Transmission Fasteners:

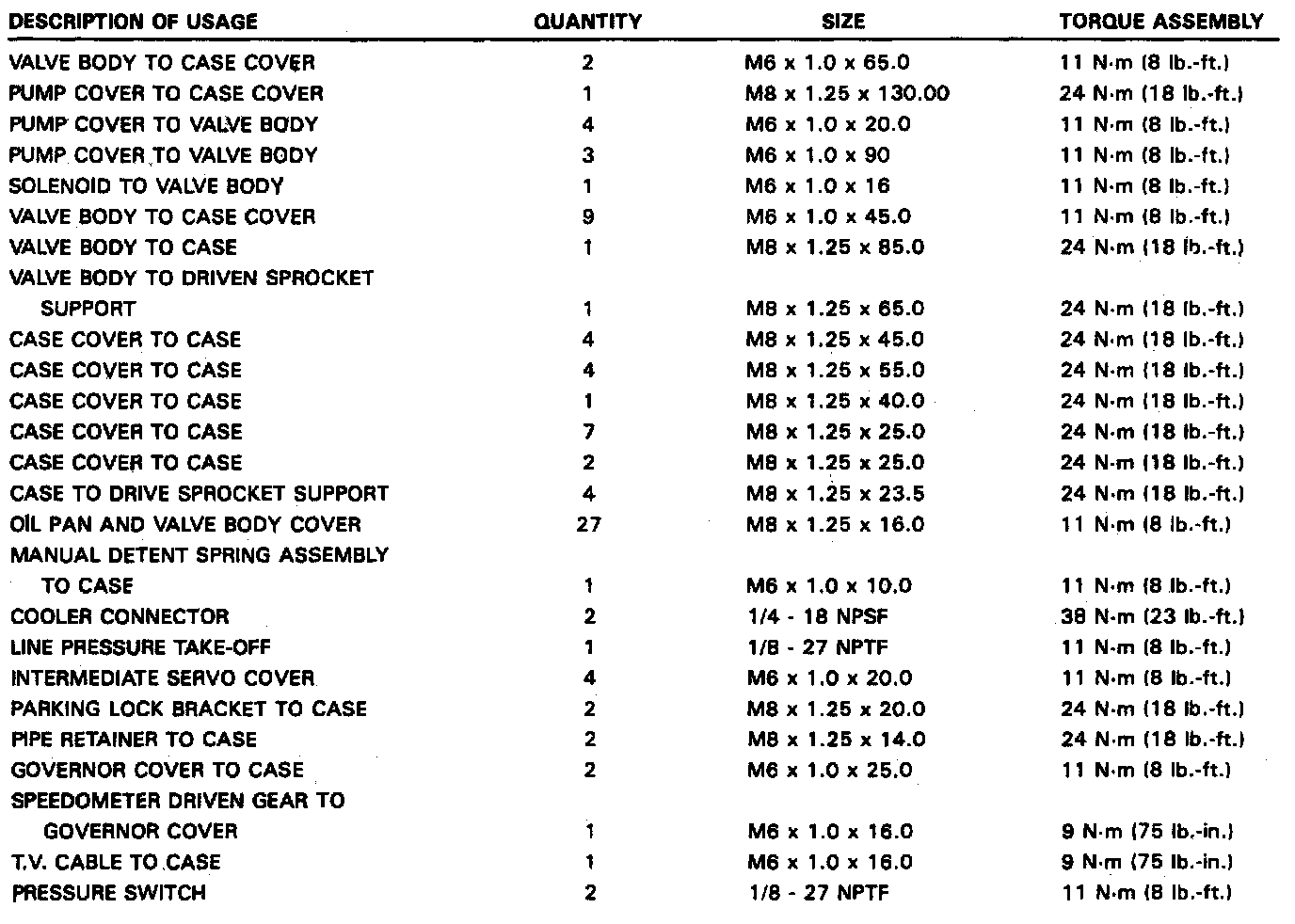

Torque Specifications:
