Compressor Clutch: Locations

Front Of Engine.:




Part Of A/C Compressor

Applicable to: 1984 Celebrity w/Diesel

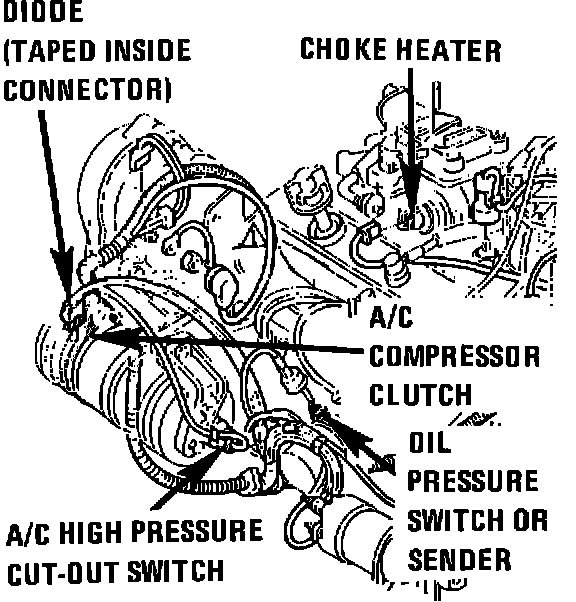

Top RH Side Of Engine.:




Part Of A/C Compressor

Applicable to: 1984 Celebrity
