Compressor Clutch Relay: Locations

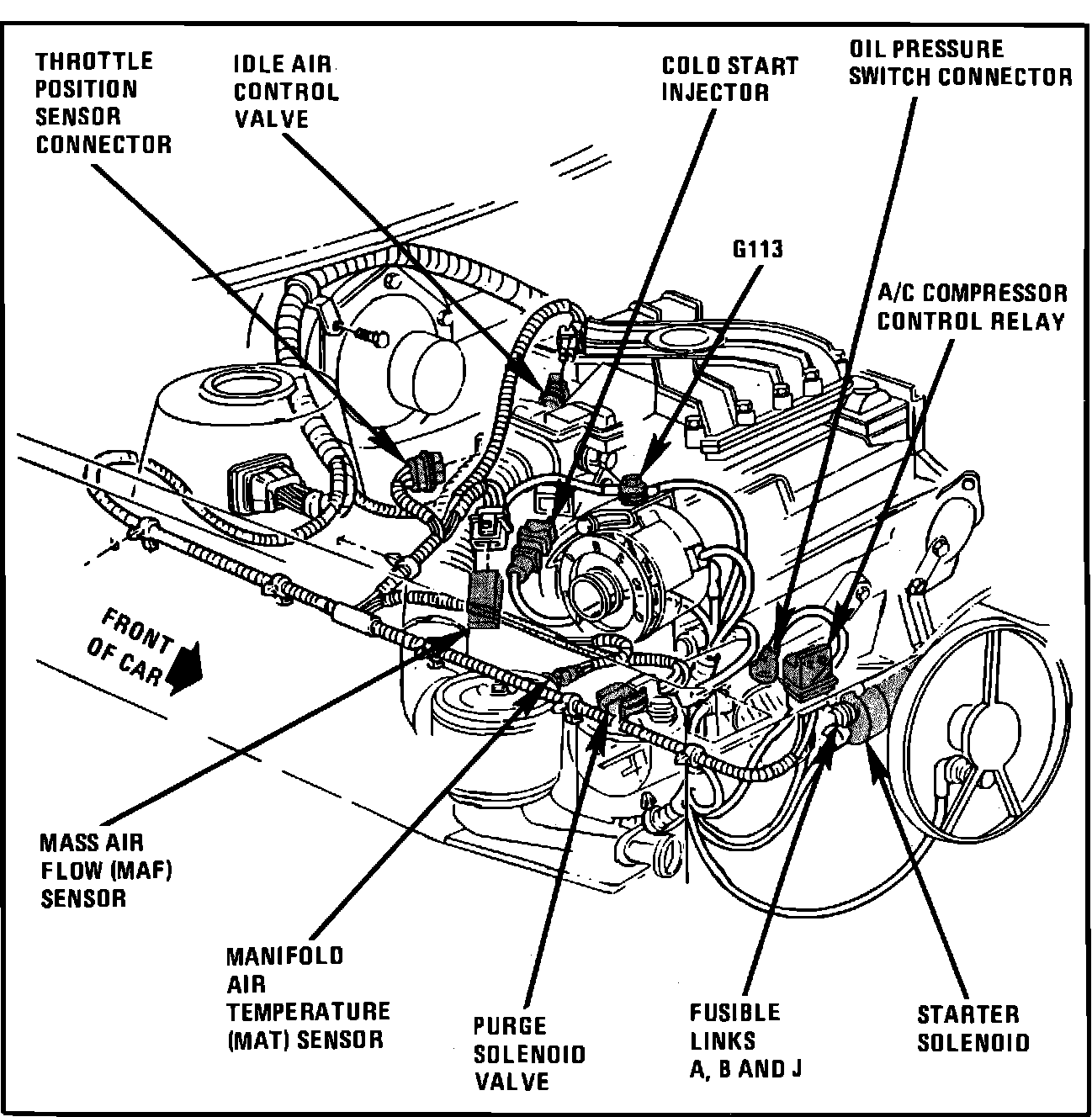

RH Front Of Engine.:




Upper RH Corner Of Engine Dash On Bracket

Applicable to: Celebrity w/V6-173 VIN W
