Home >> Cadillac >> 2009 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Testing and Inspection >> Scan Tool Testing and Procedures >> Headlamp Control Module Scan Tool Information (Scan Tool Parameters)

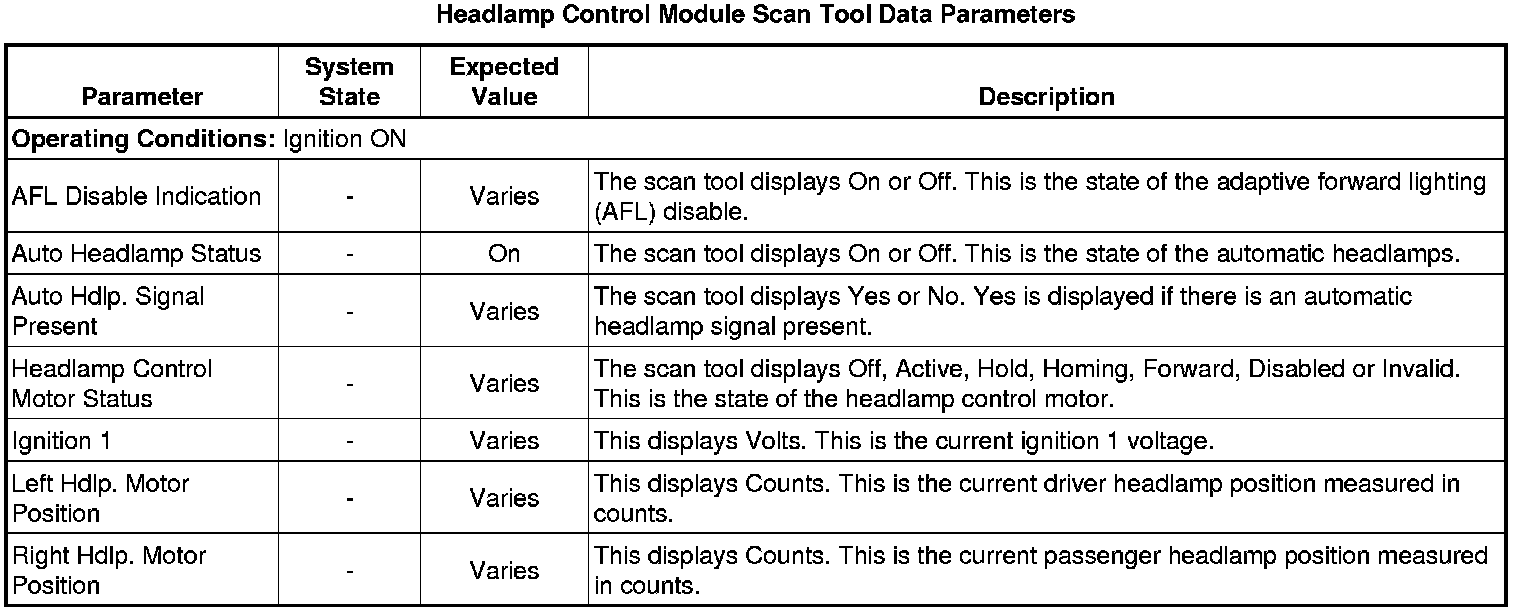

Headlamp Control Module Scan Tool Information (Scan Tool Parameters)




Headlamp Control Module Scan Tool Information (Scan Tool Parameters)
