Remote Control Door Lock Receiver (RCDLR) X2

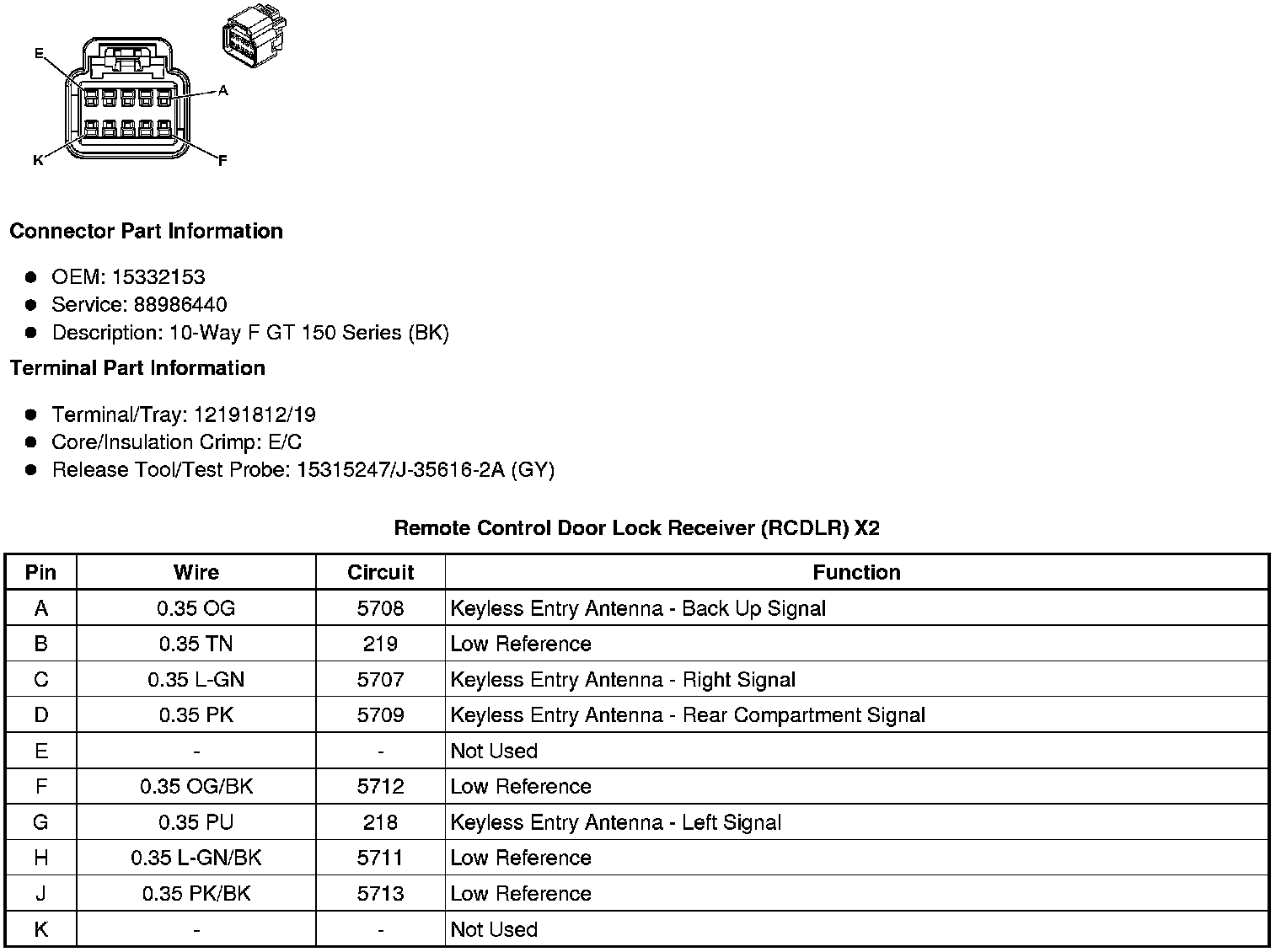

Component Connector End Views

Remote Control Door Lock Receiver (RCDLR) X2
