Manifold Pressure/Vacuum Sensor: Locations

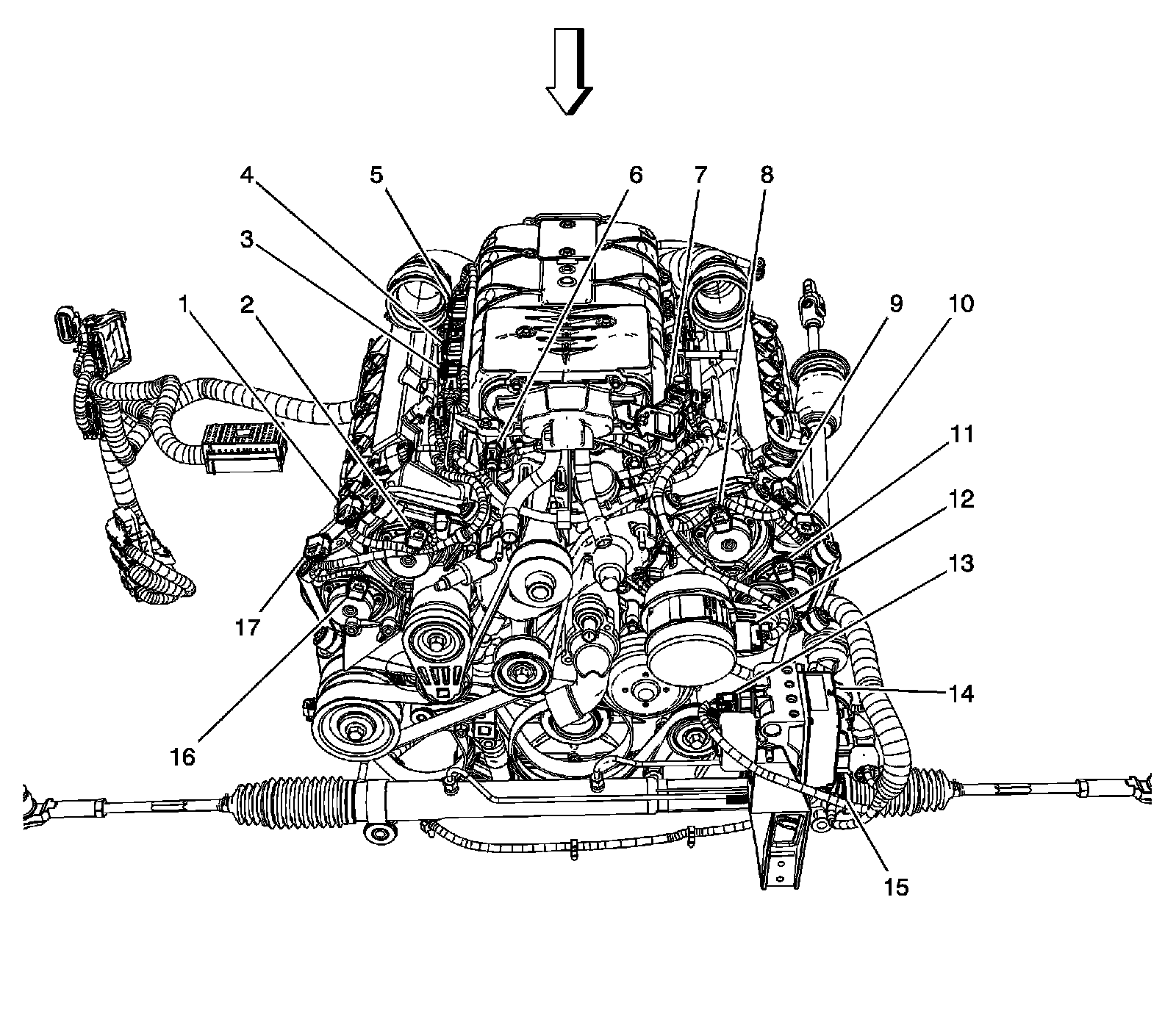

Powertrain Component Views

Front of Engine (LC3)




3 - Manifold Absolute Pressure (MAP) Sensor

Front of Engine (LC3)




5 - Supercharger Air Inlet Pressure Sensor
