Distance Sensor: Diagrams

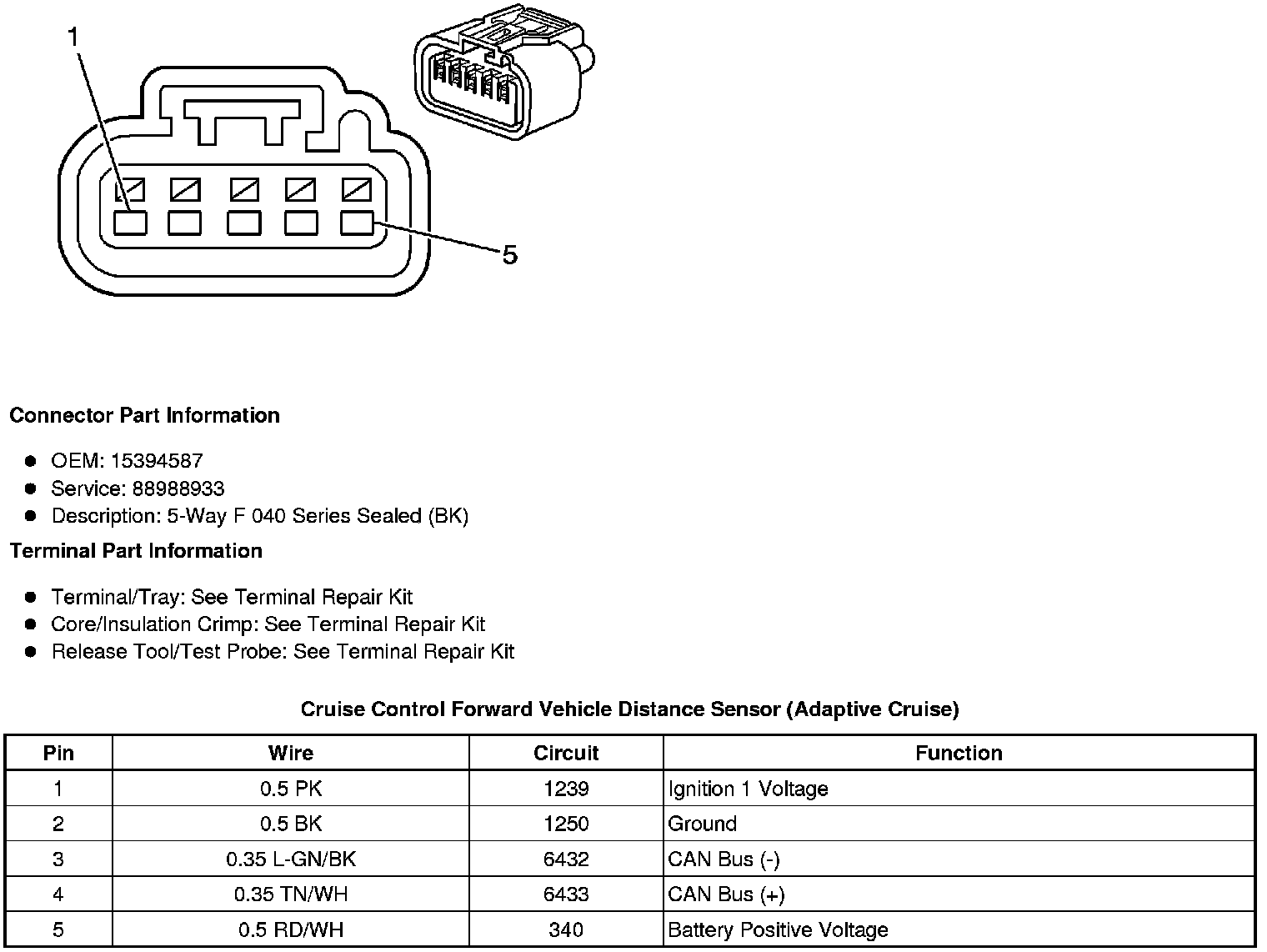

Component Connector End Views

Cruise Control Forward Vehicle Distance Sensor (Adaptive Cruise)
