Home >> Cadillac >> 2009 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Diagrams >> Seat Climate Control Module - Passenger X2

Seat Climate Control Module - Passenger X2

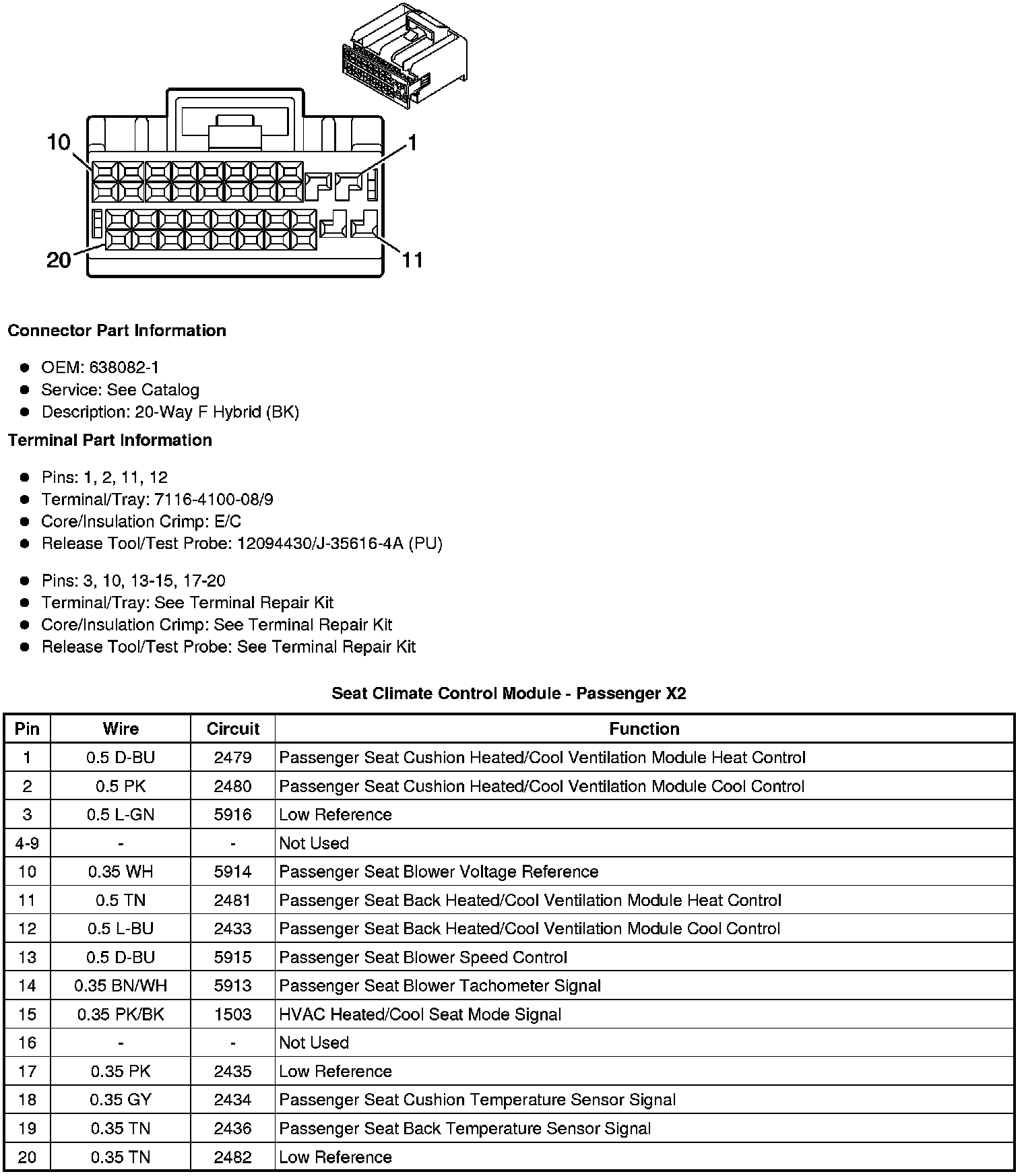

Component Connector End Views

Seat Climate Control Module - Passenger X2
