Suspension Control Pressure Sensor/Switch




Component Connector End Views

Suspension Position Sensor - Left Front (F55)






Suspension Position Sensor - Left Rear (F55)

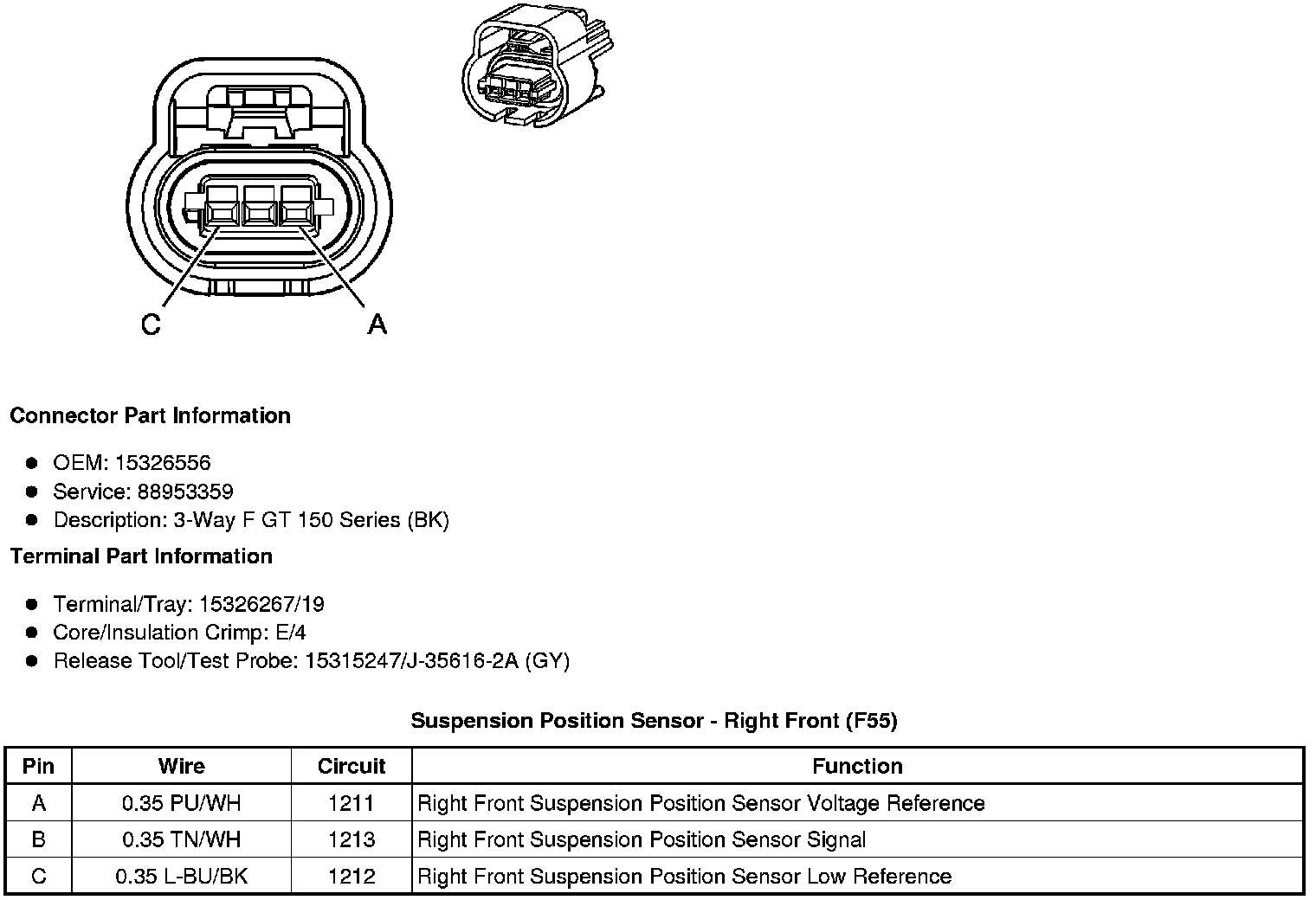

Suspension Position Sensor - Right Front (F55)






Suspension Position Sensor - Right Rear (F55)
