Active Exhaust System Control Module: Diagrams



Component Connector End Views

Exhaust Flow Control Module X1

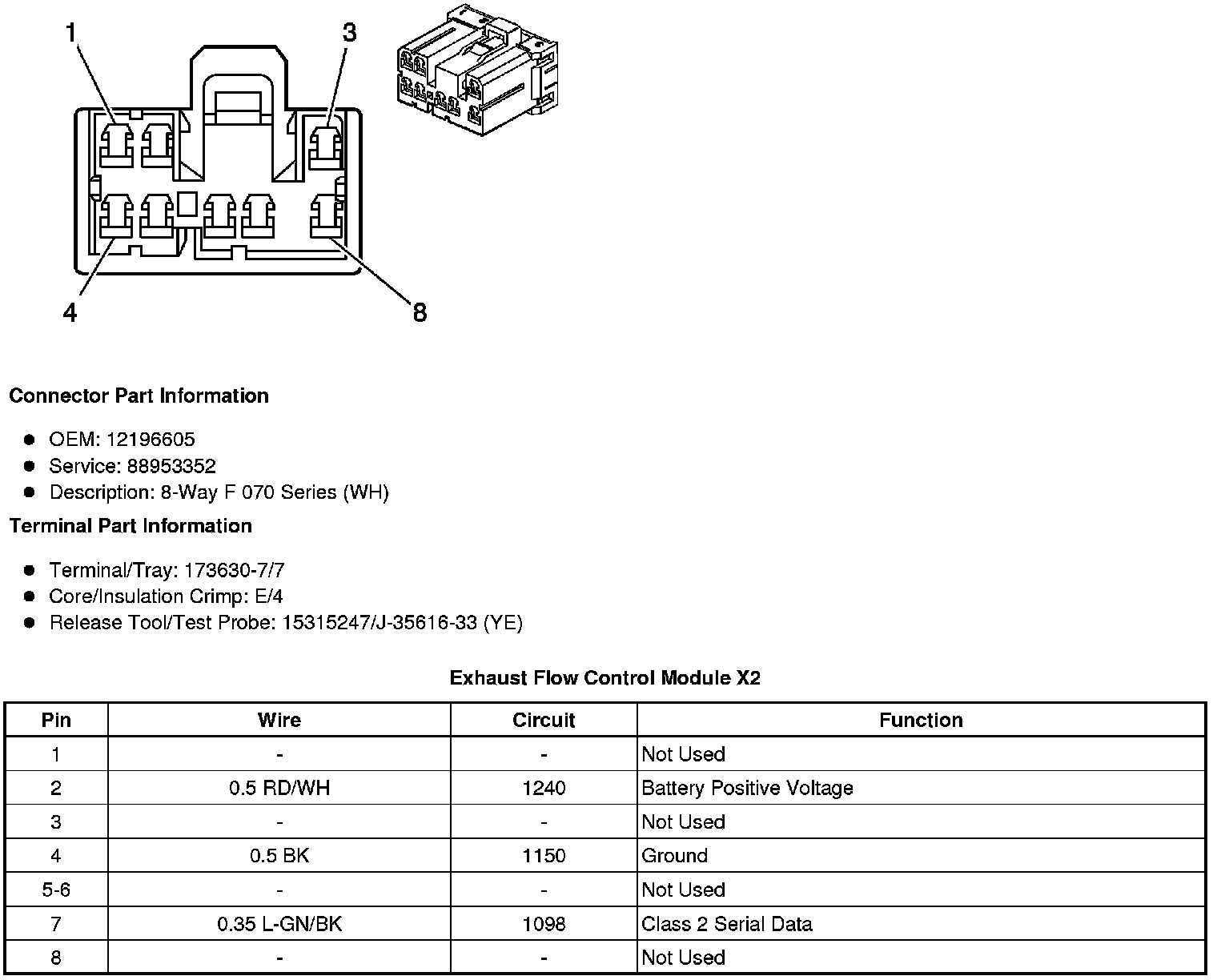

Exhaust Flow Control Module X2
