Underhood Fuse Block



Fuse Block - Underhood Label:

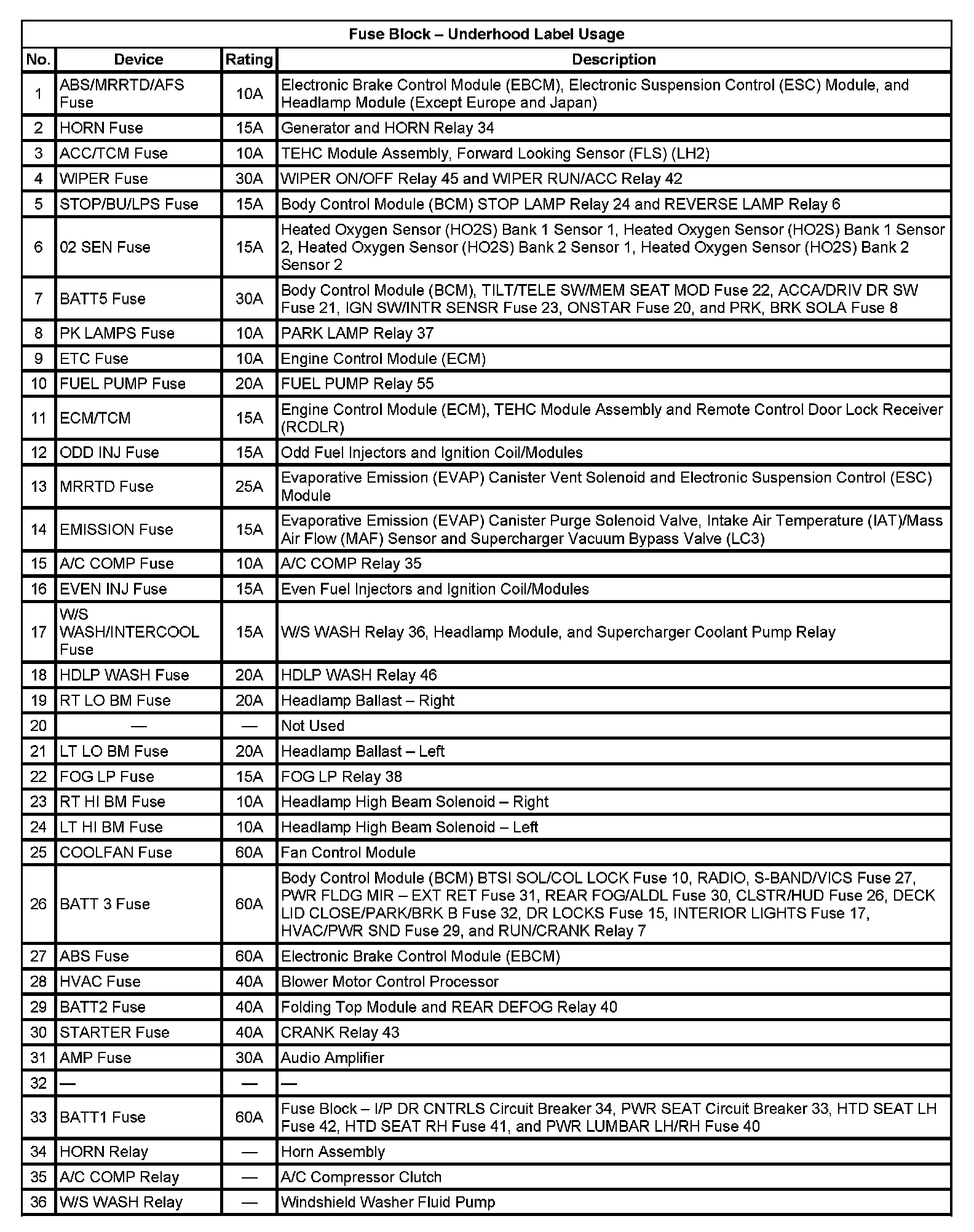

Fuse Block - Underhood Label Usage:

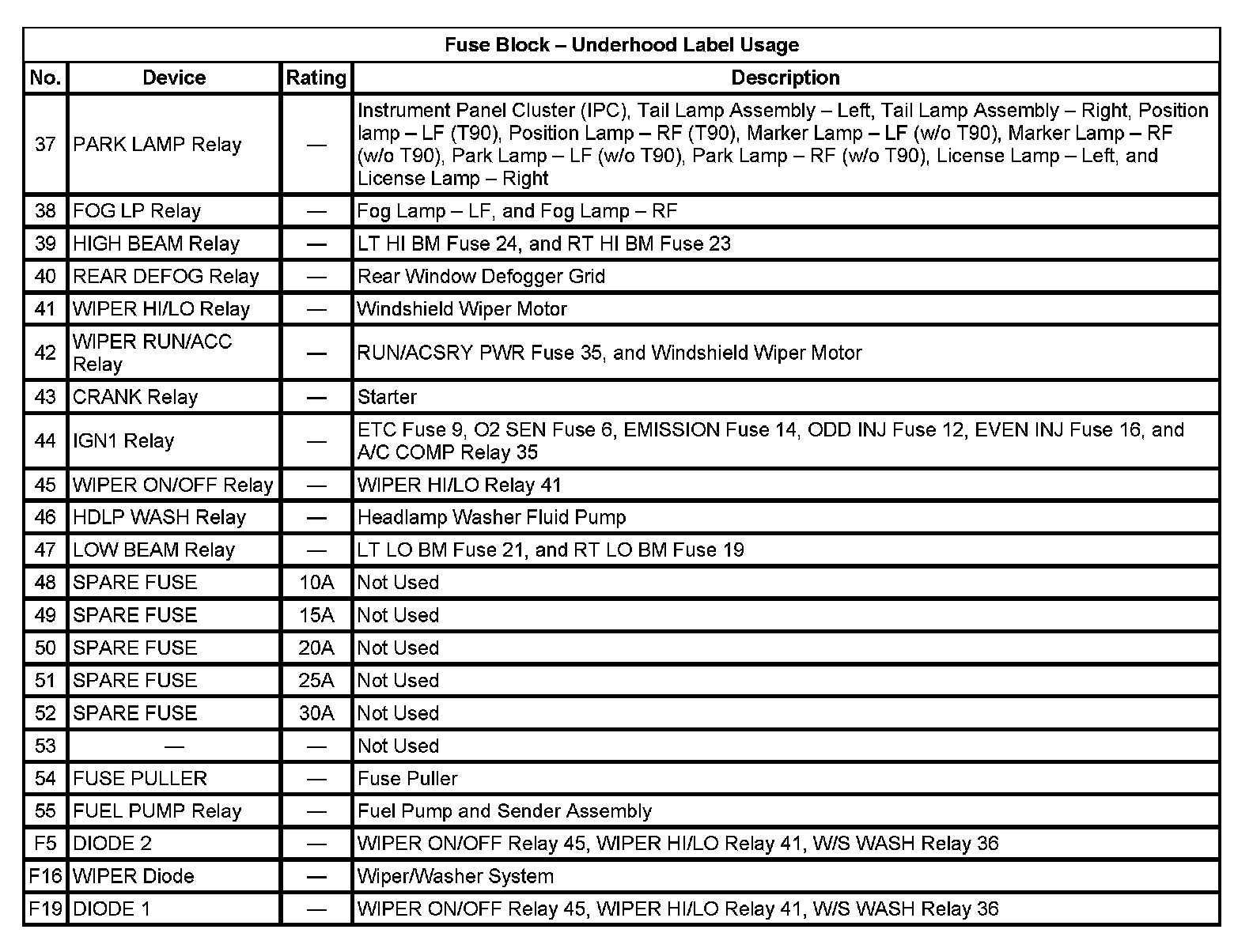

Fuse Block - Underhood Label Usage:
