Home >> Cadillac >> 2007 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module

Suspension Control Module



Electronic Suspension Control (ESC) Module

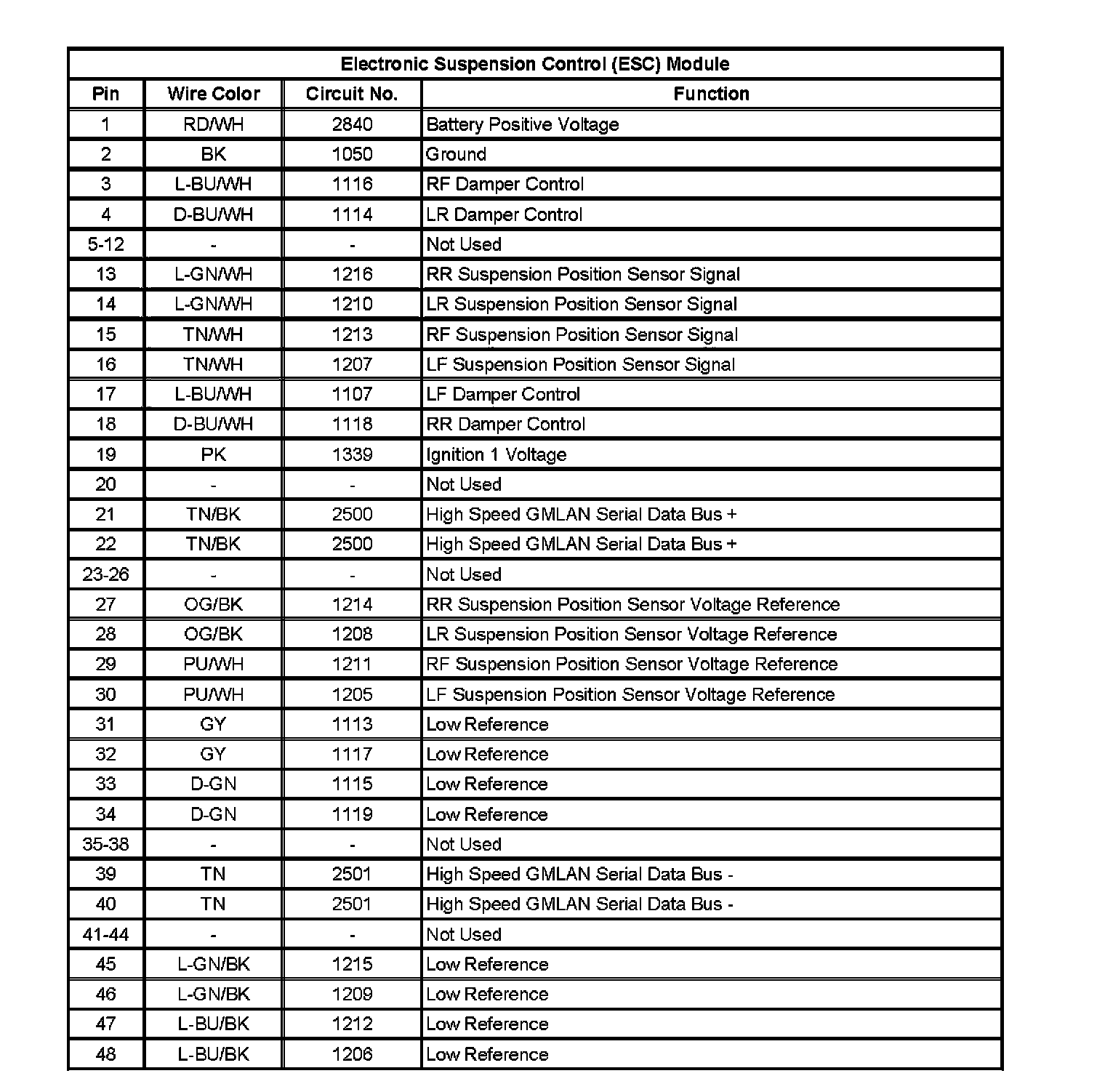

Electronic Suspension Control (ESC) Module:
