Seat Back Heated/Cooled Ventilation Module

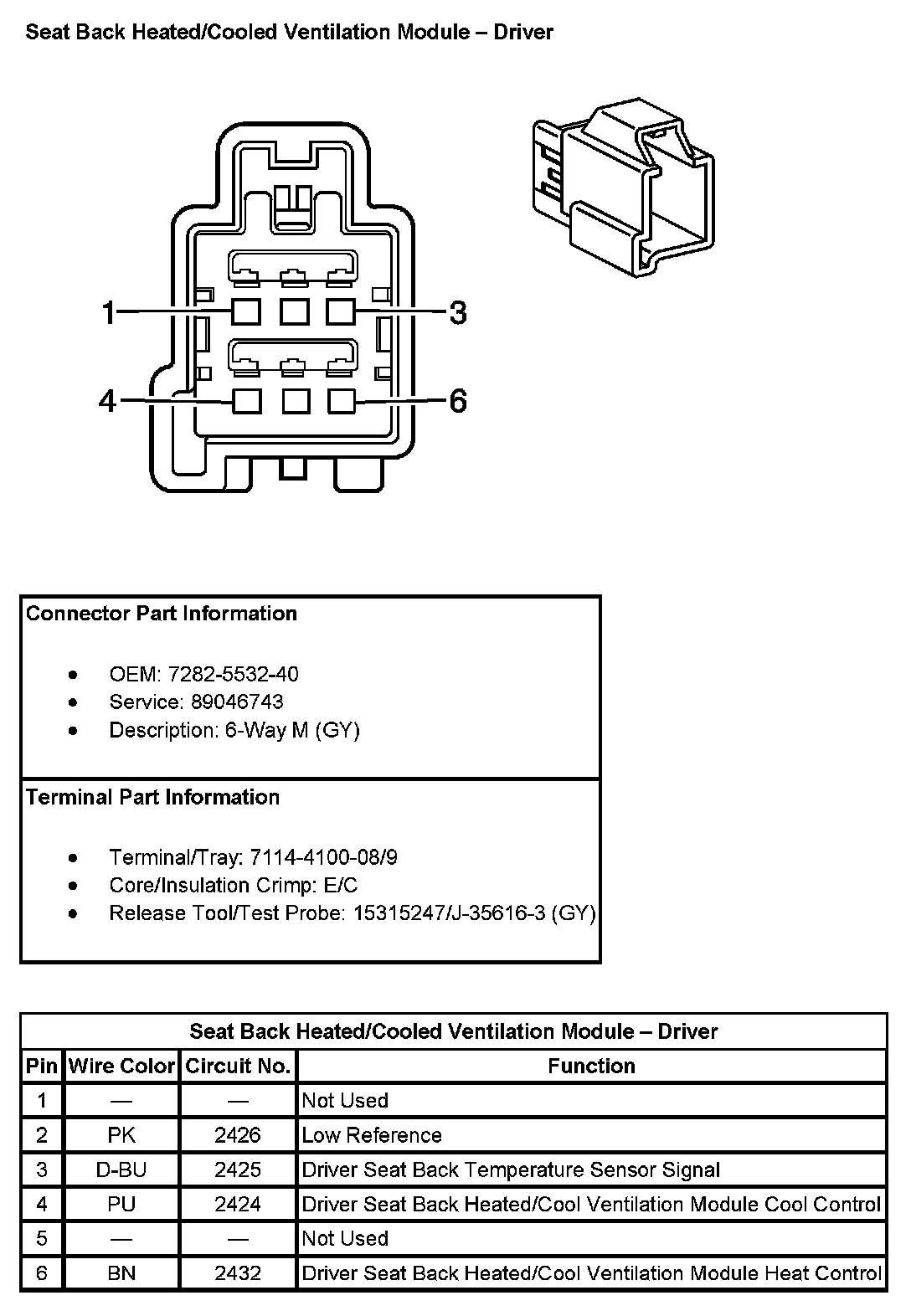

Seat Back Heated/Cooled Ventilation Module - Driver:

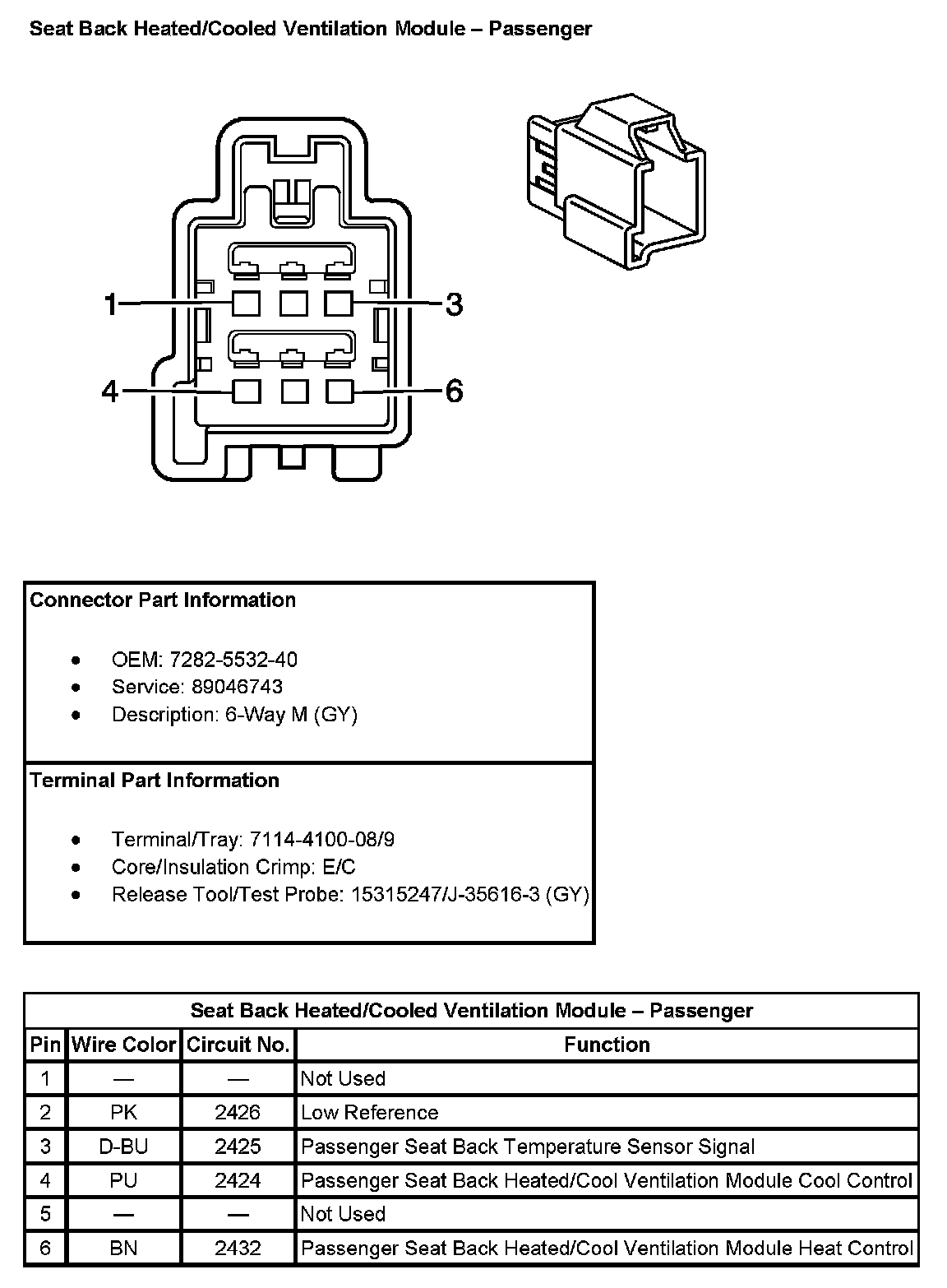

Seat Back Heated/Cooled Ventilation Module - Passenger:
