Scan Tool Data List



Scan Tool Data List

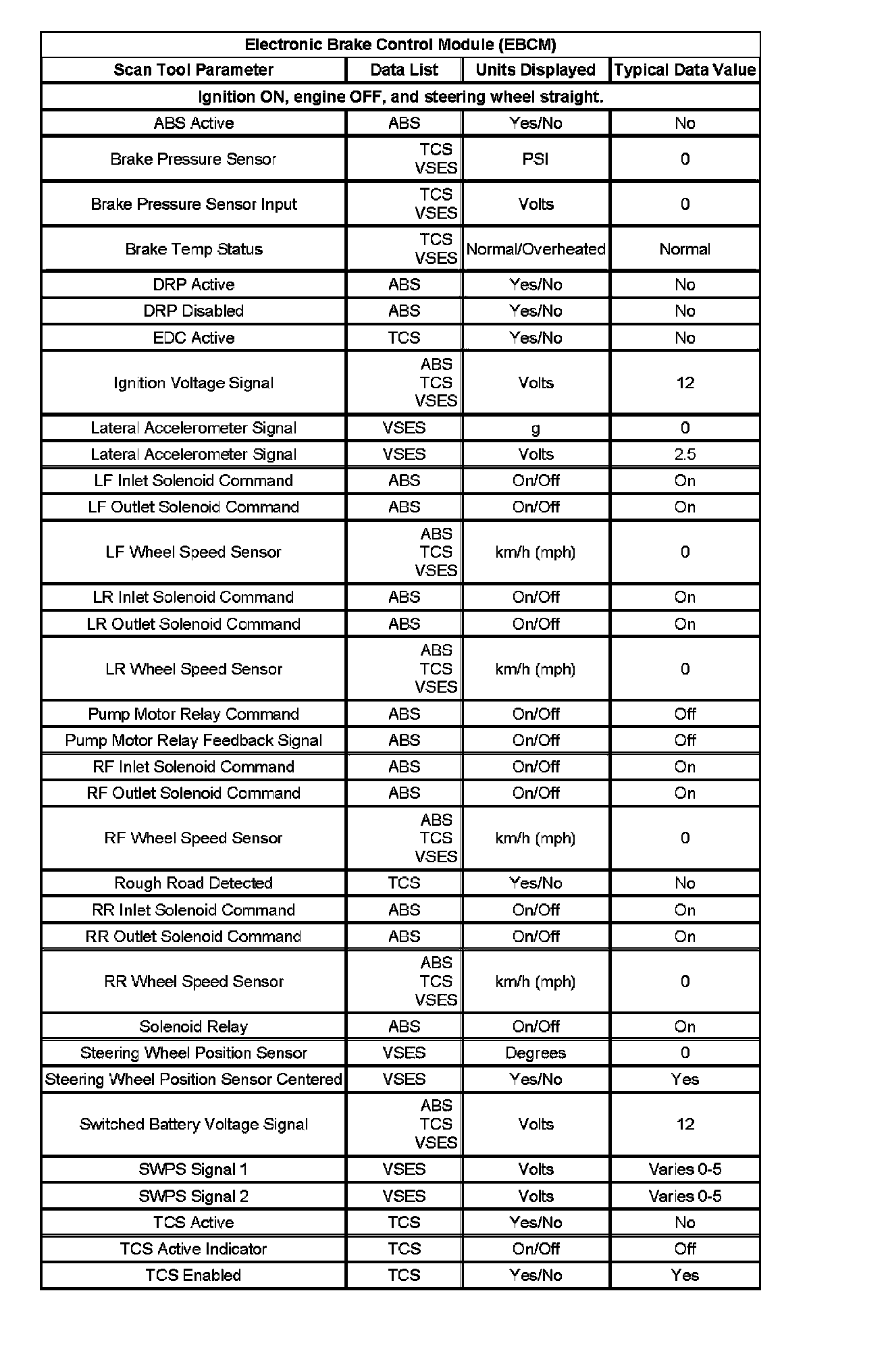

Electronic Brake Control Module (EBCM) (Part 1):




Electronic Brake Control Module (EBCM) (Part 2):




Engine Control Module (ECM):




Body Control Module (BCM):
