Home >> Cadillac >> 2007 >> STS RWD V8-4.4L SC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold

Intake Manifold





Supercharger

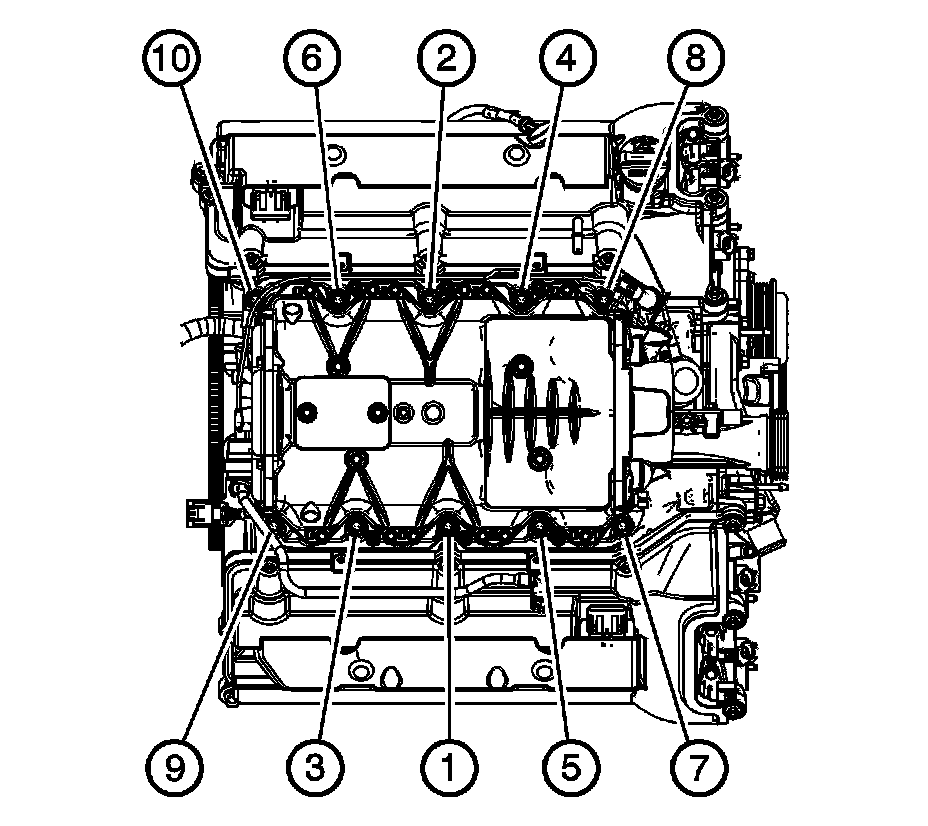

Bolt in Sequence 25 N.m (18 lb ft)

Throttle Body Bolt 10 N.m (89 lb in)
