G401

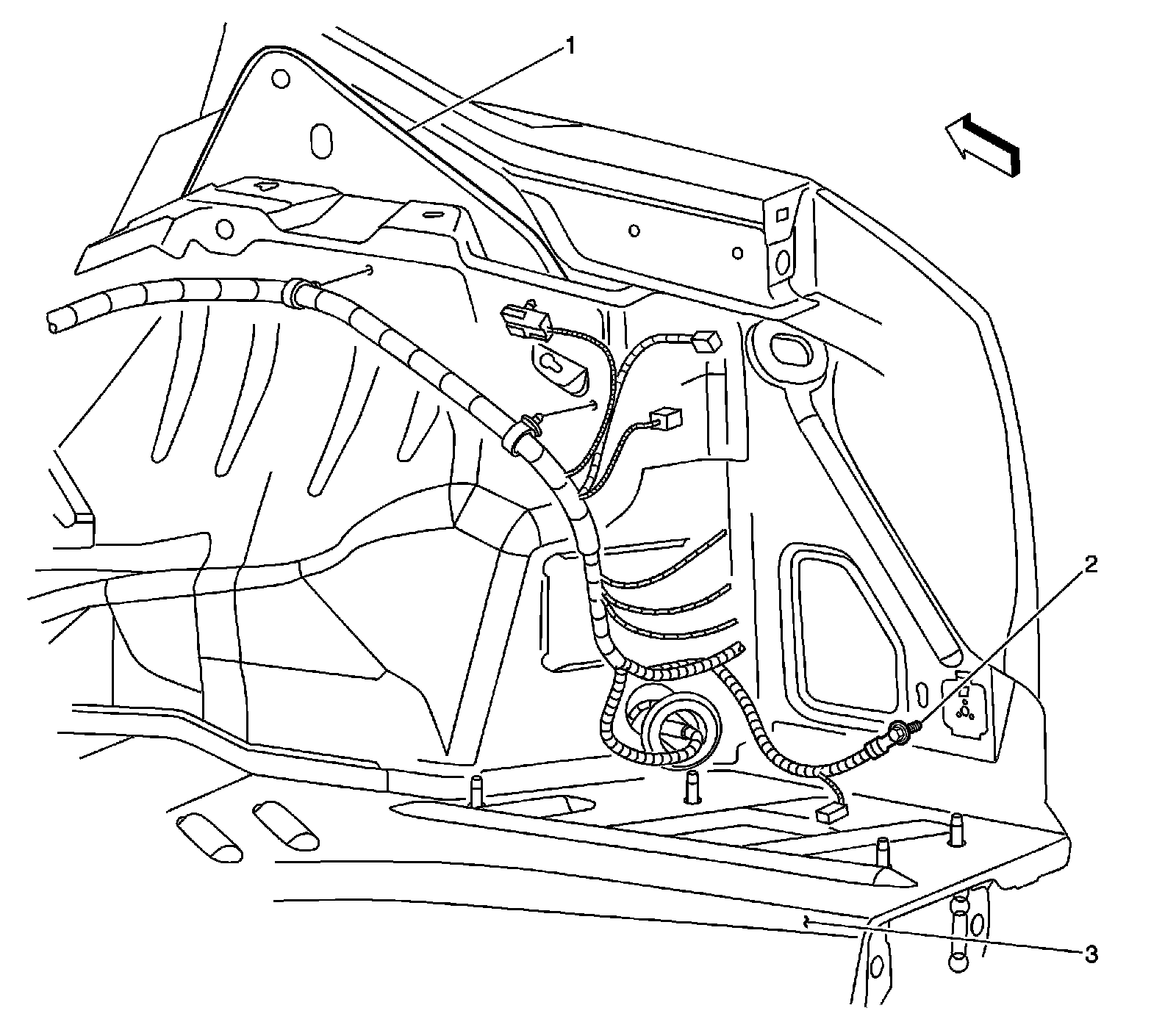

Power and Grounding Component Views

G401




1 - RR Fender
2 - G401
3 - Trunk Compartment Floor Panel
