Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Right Rear Fuse Block
Right Rear Fuse Block
Location View:

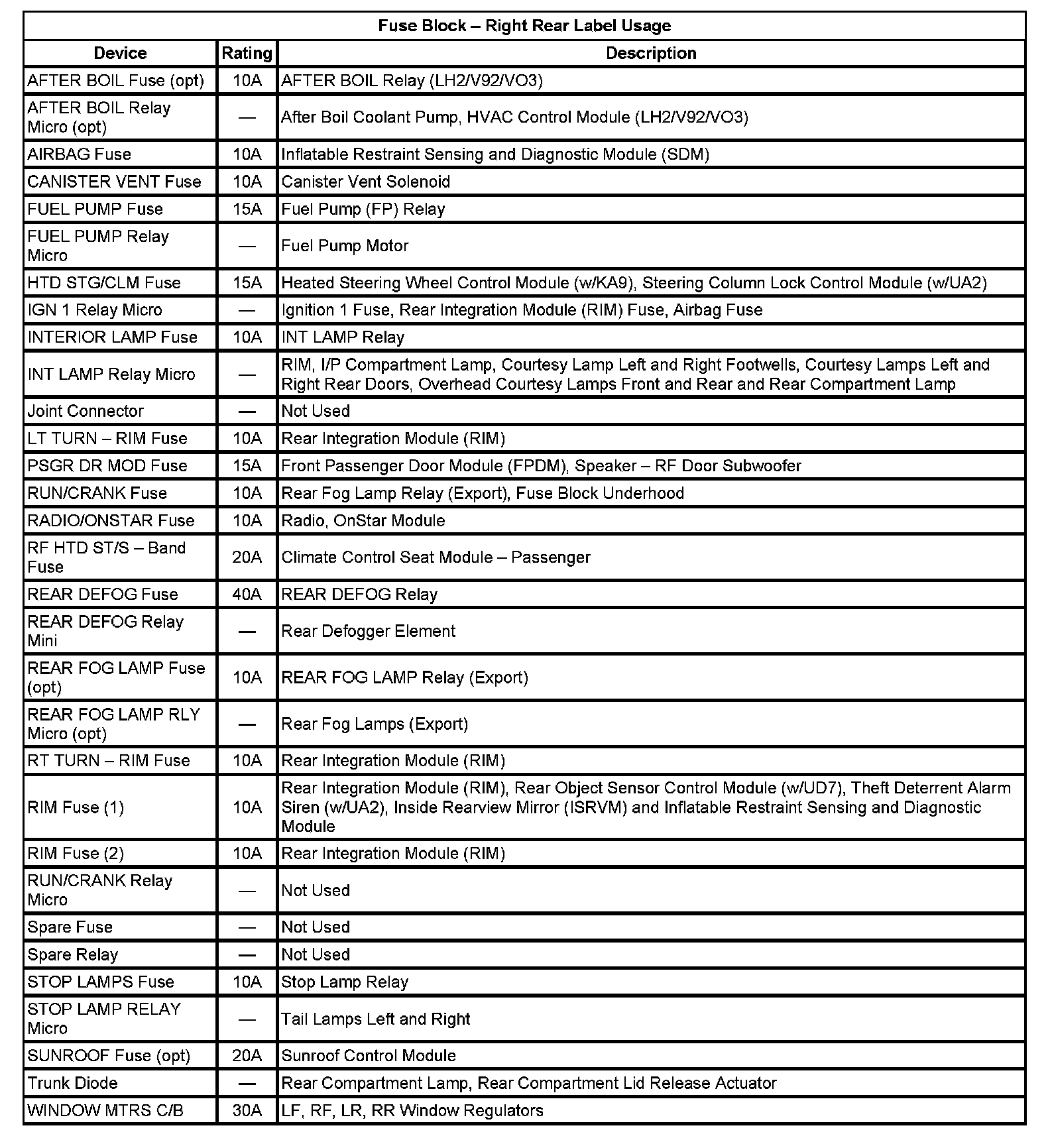

Application Table:
Location View:
Location View:
