Home >> Cadillac >> 2007 >> STS RWD V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Fuse Block >> Left Rear Fuse Block

Left Rear Fuse Block



Electrical Center Identification Views

Fuse Block - Left Rear Top View






Fuse Block - Left Rear Bottom View

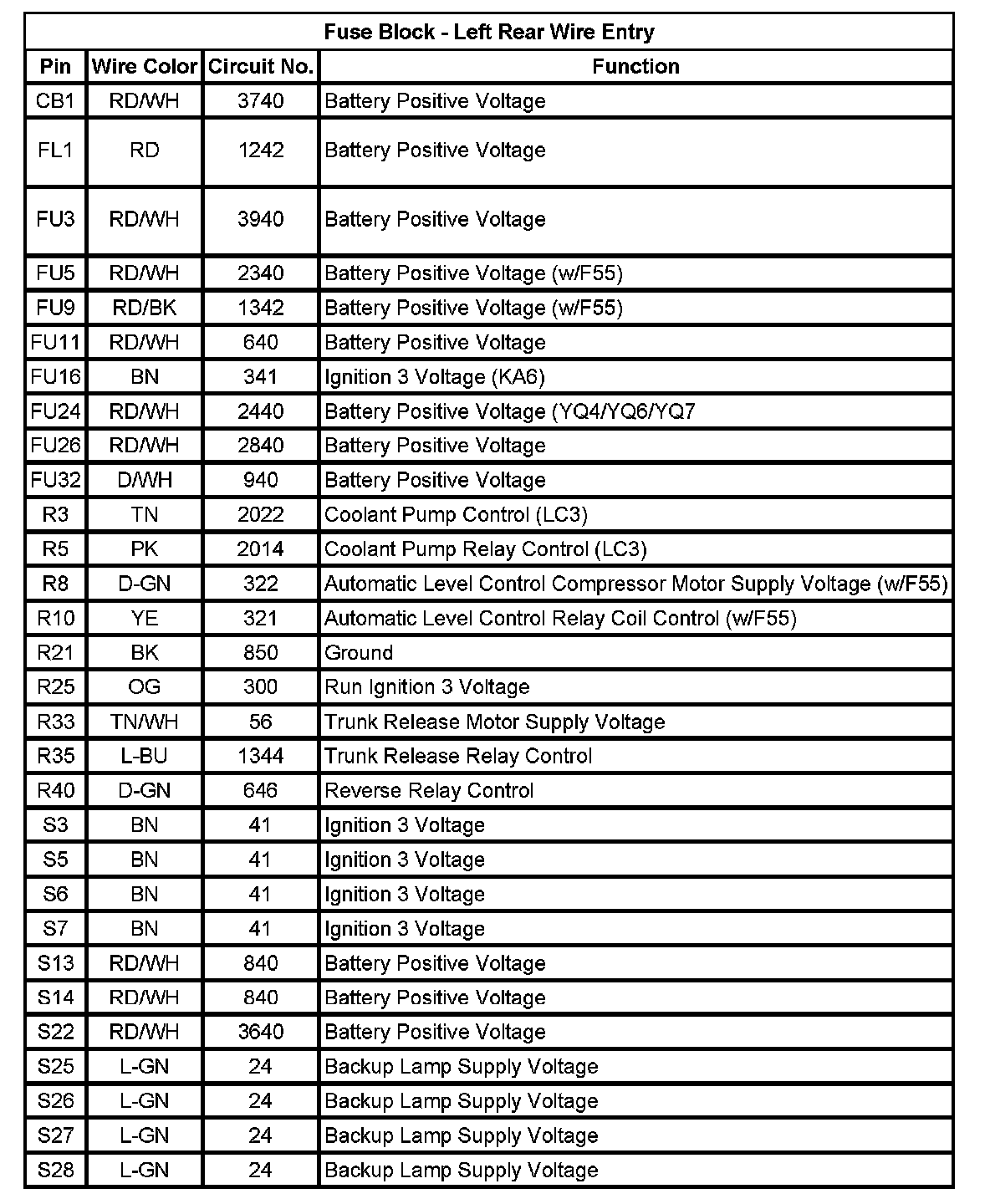

Fuse Block - Left Rear C1
