Home >> Cadillac >> 2006 >> STS AWD V8-4.6L VIN A >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations

Coolant Temperature Sensor/Switch (For Computer): Locations

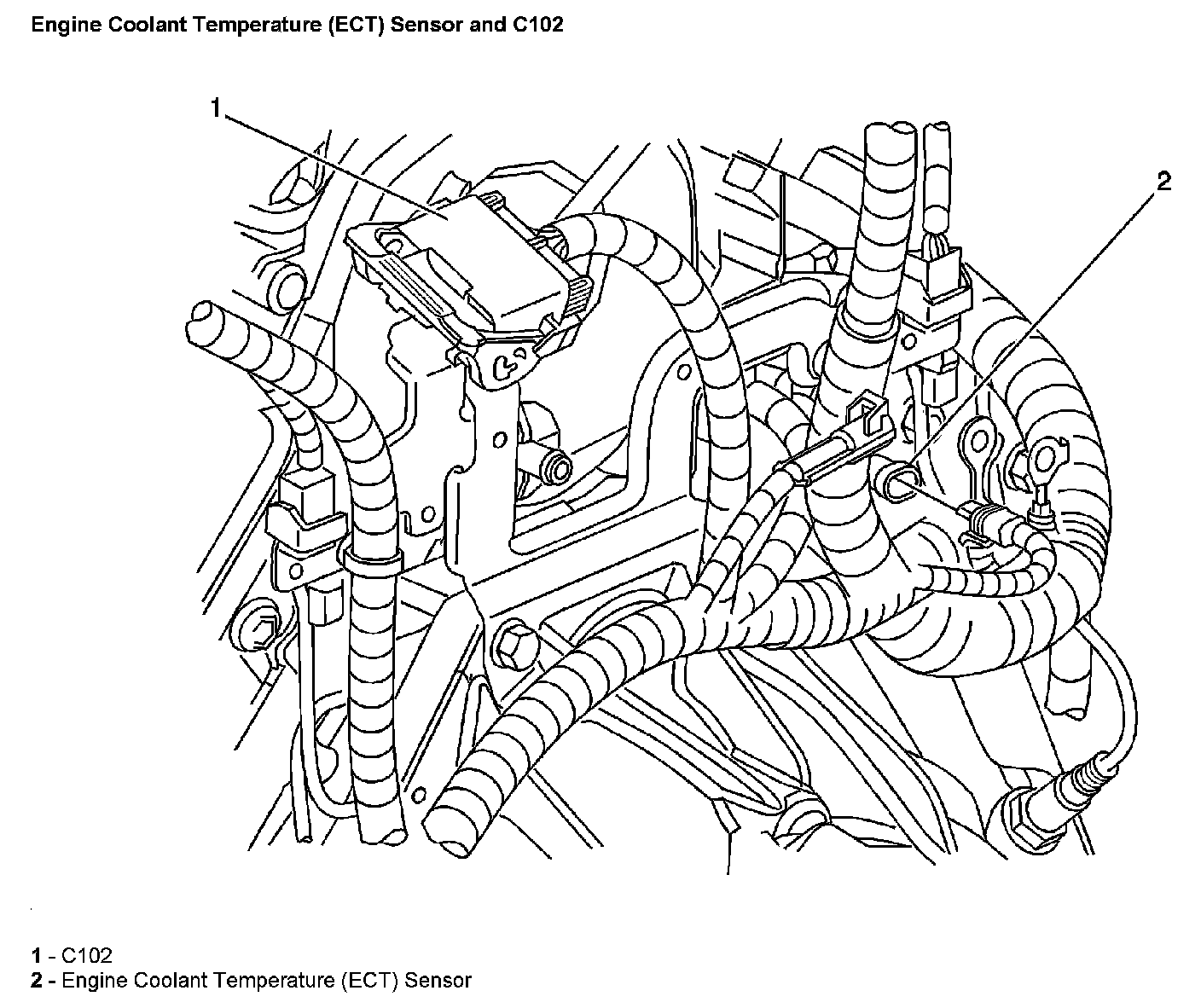

Engine Coolant Temperature (ECT) Sensor And C102:

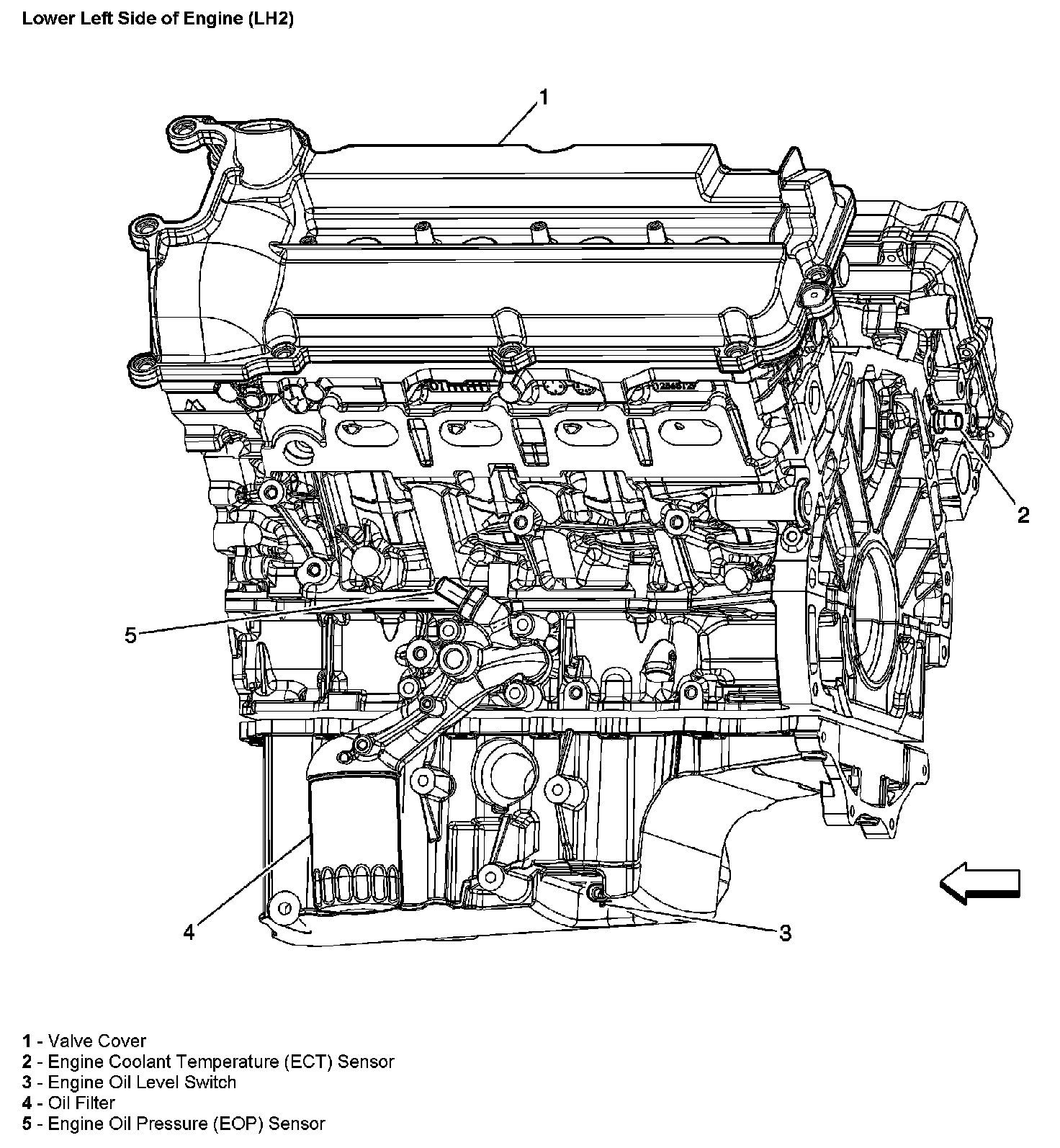

Lower Left Side Of Engine:
