Home >> Cadillac >> 2006 >> STS AWD V8-4.6L VIN A >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Driver Position Module

Driver Position Module

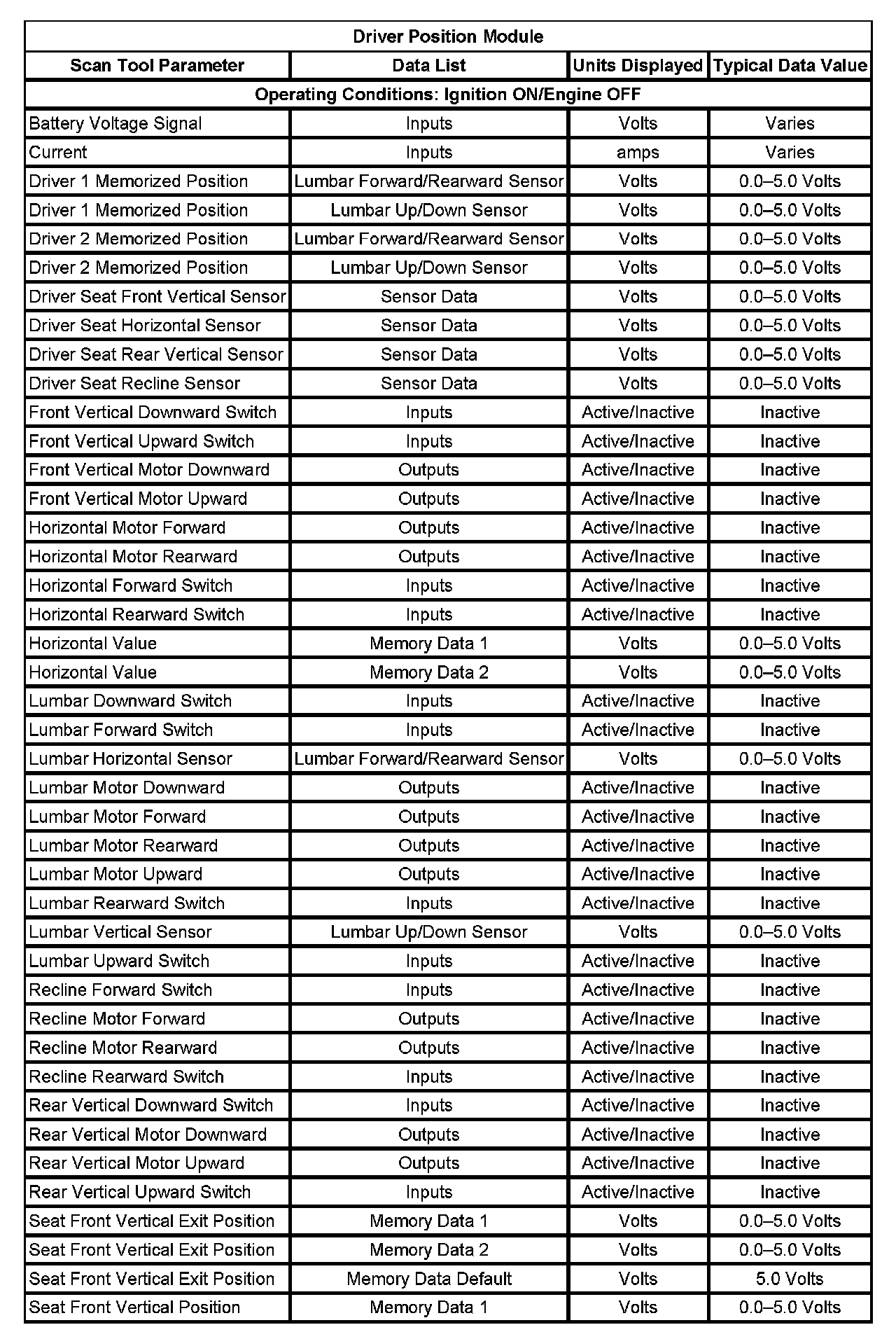

Driver Position Module (Part 1):

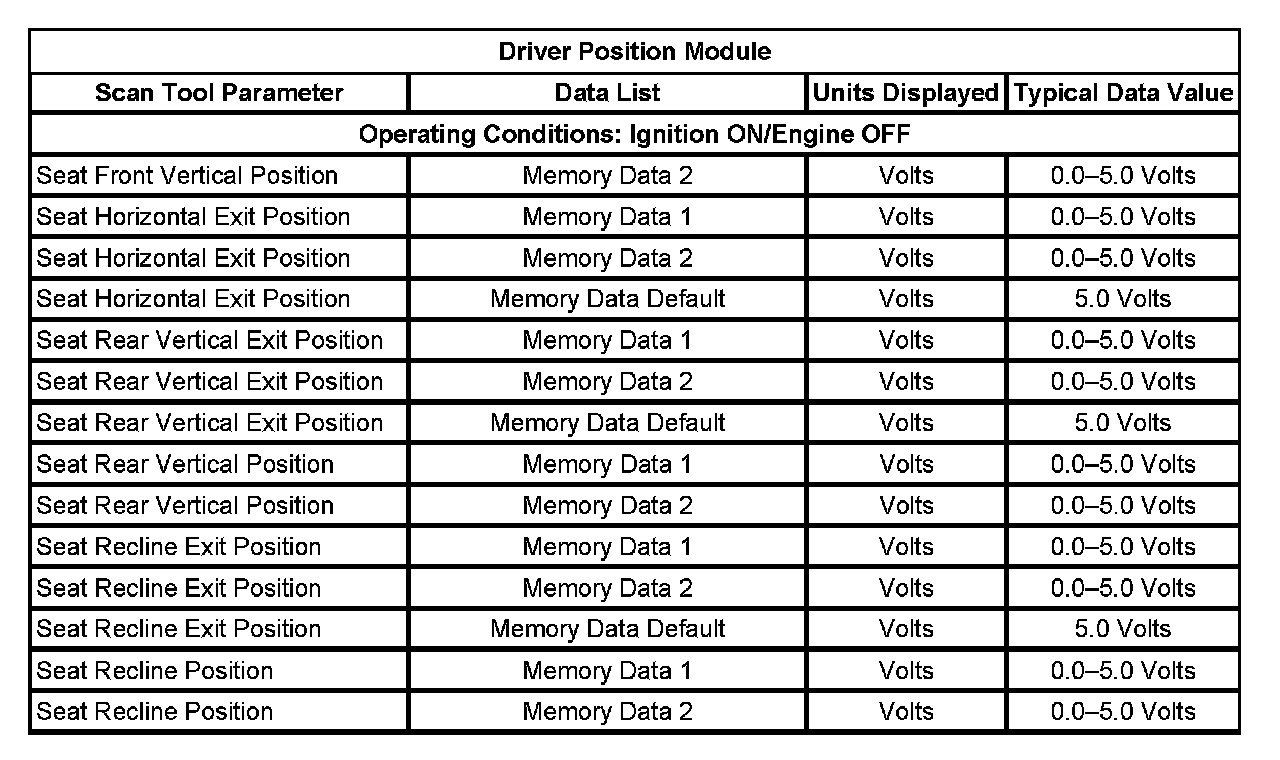

Driver Position Module (Part 2):
