Memory Positioning Module: Diagrams

Memory Seat Module (MSM) C1 (With RPO Code A45):

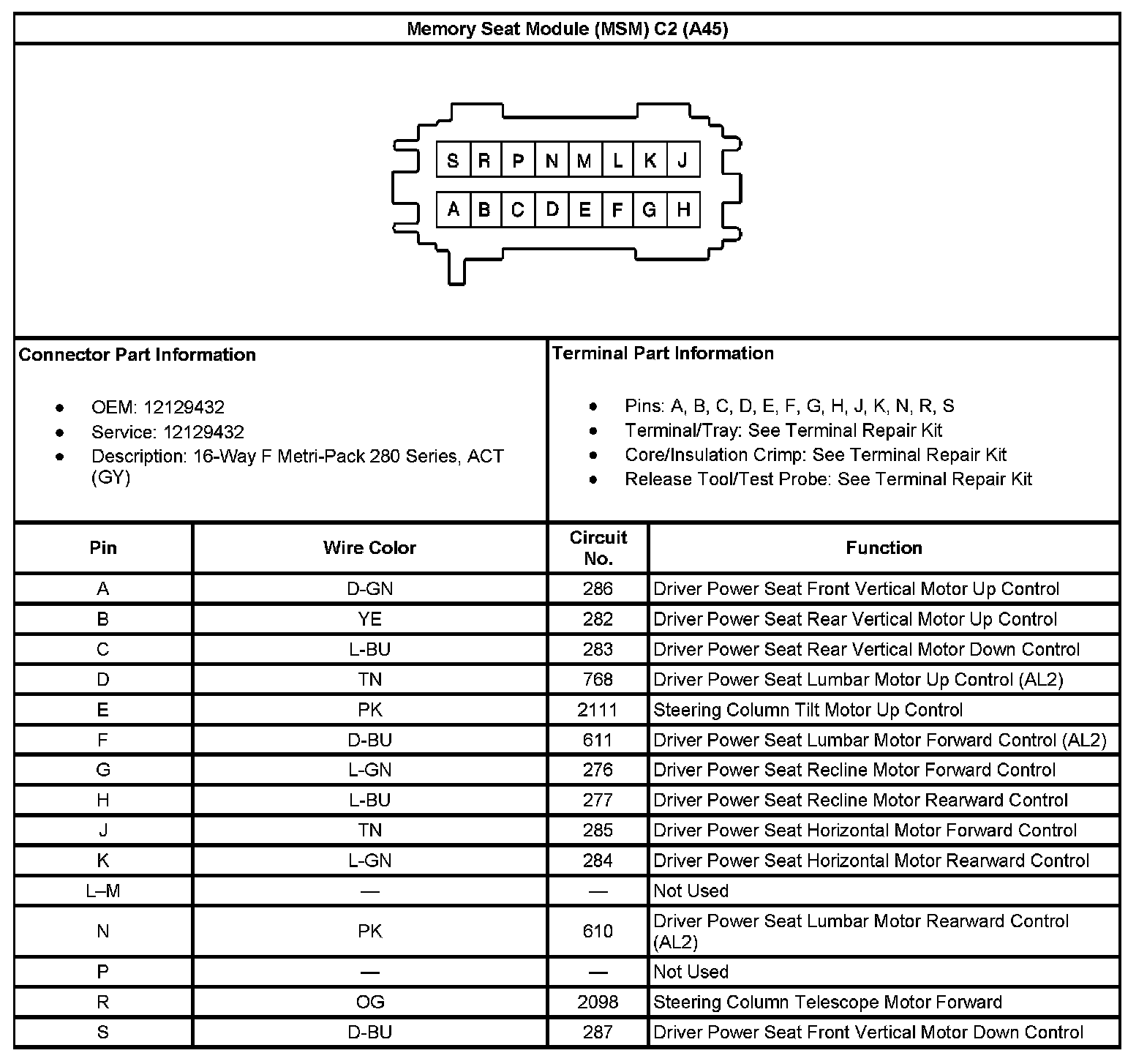

Memory Seat Module (MSM) C2 (With RPO Code A45):

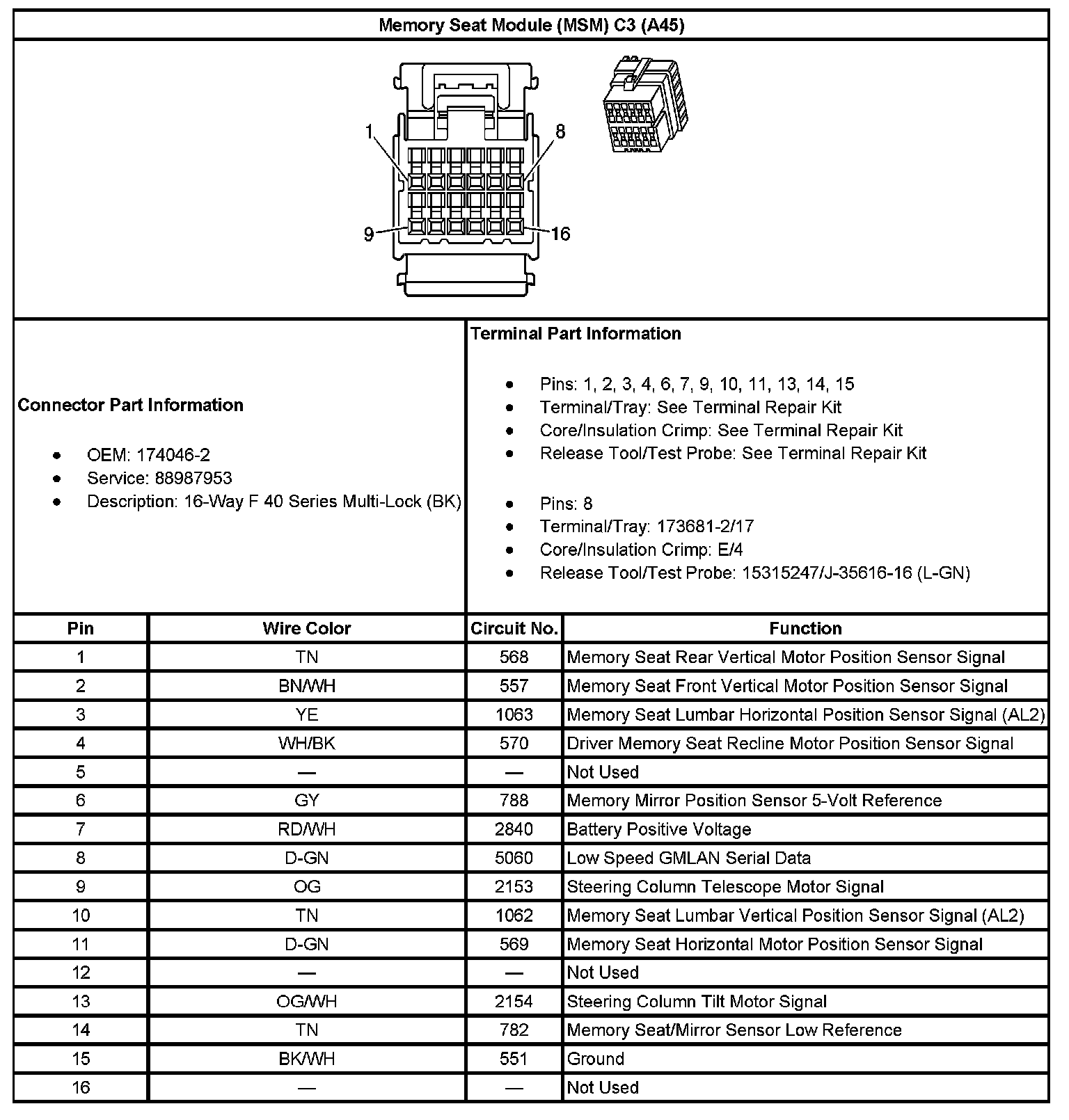

Memory Seat Module (MSM) C3 (With RPO Code A45):

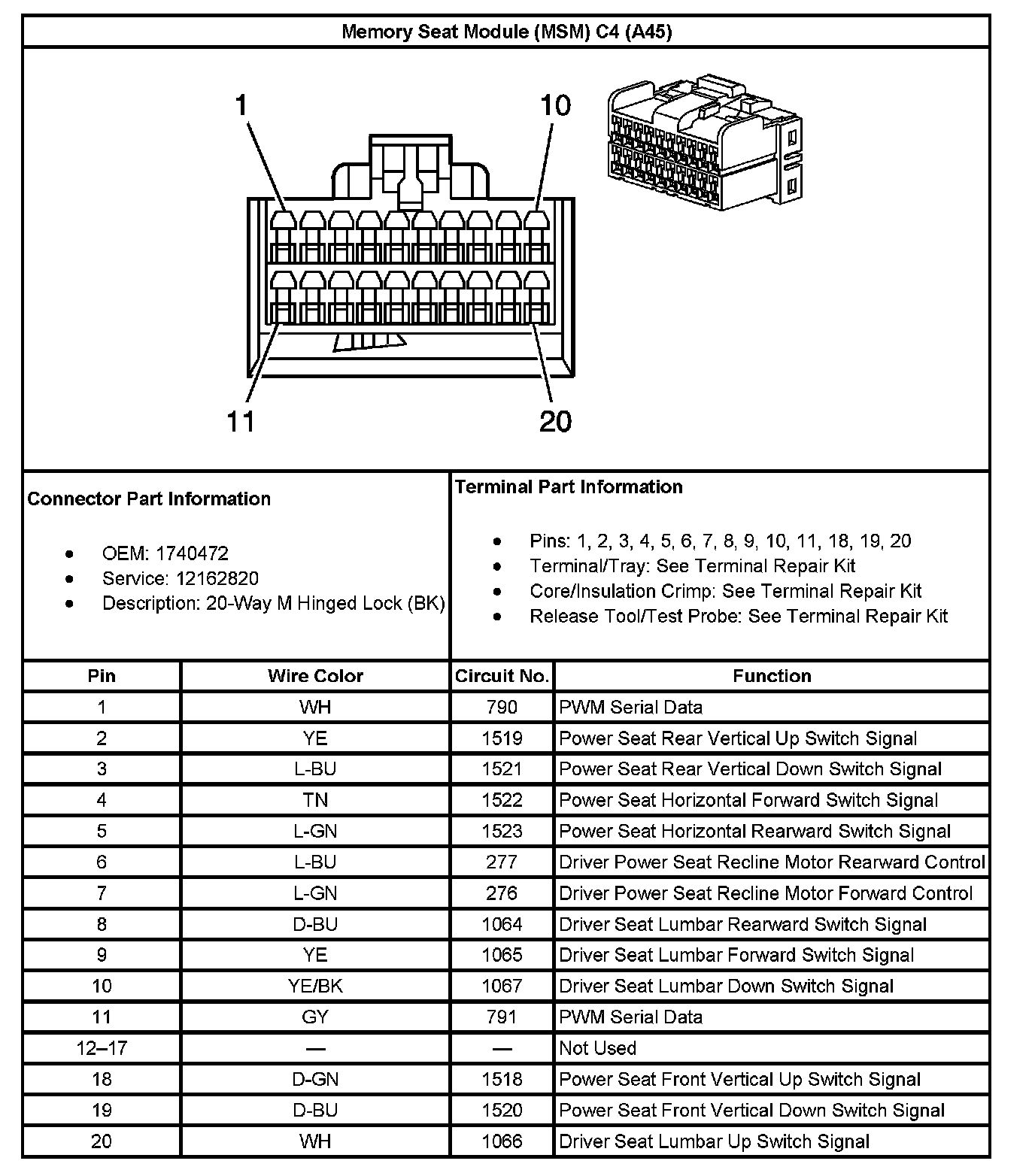

Memory Seat Module (MSM) C4 (With RPO Code A45):
