Home
>>
Cadillac
>>
2006
>>
STS AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Fuel Level Sensor
>>
Diagrams
>>

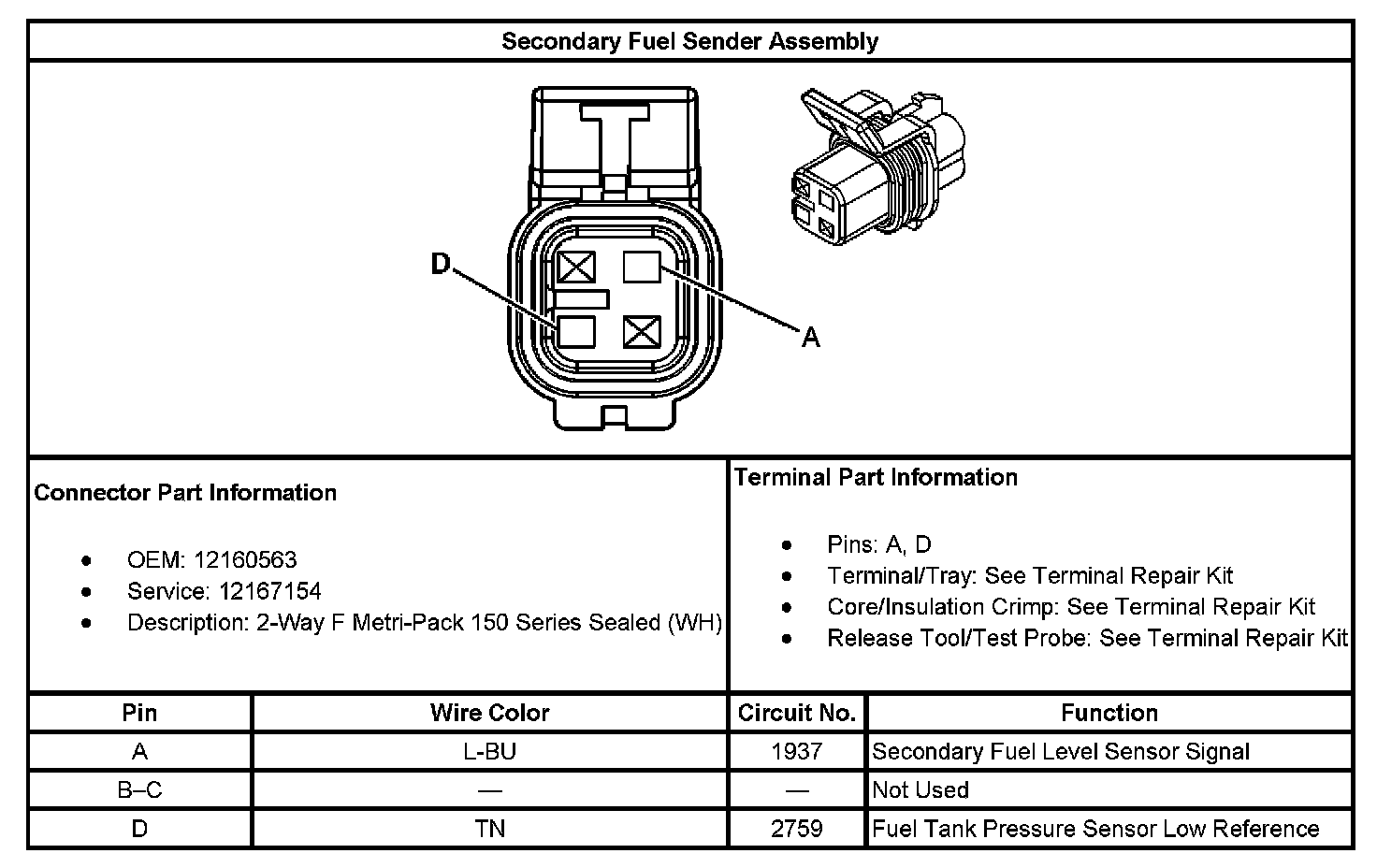

Secondary Fuel Sender Assembly
Secondary Fuel Sender Assembly
Secondary Fuel Sender Assembly:
