Heated Seat Module - Front Passenger

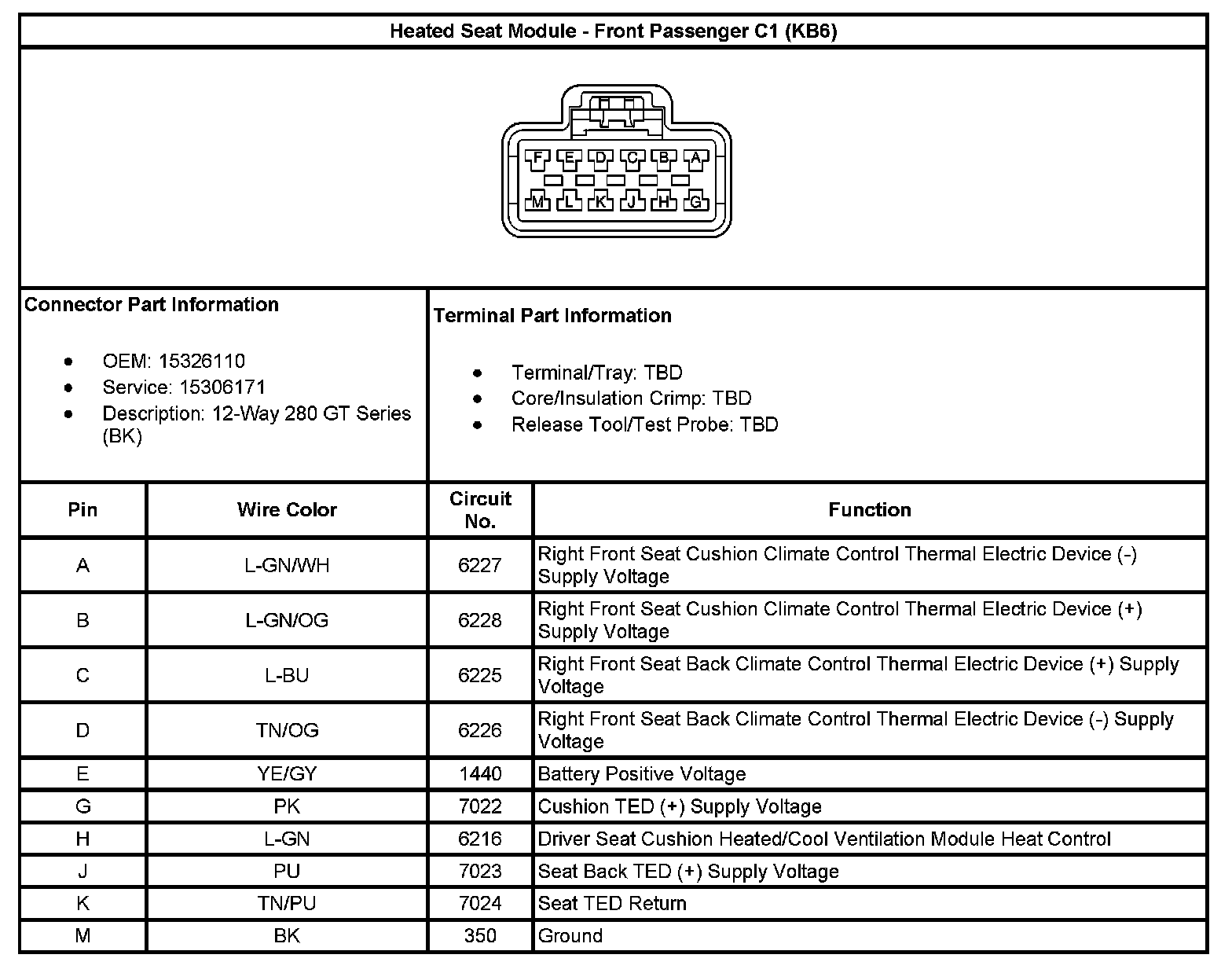

Heated Seat Module - Front Passenger C1 (With RPO Code KB6):

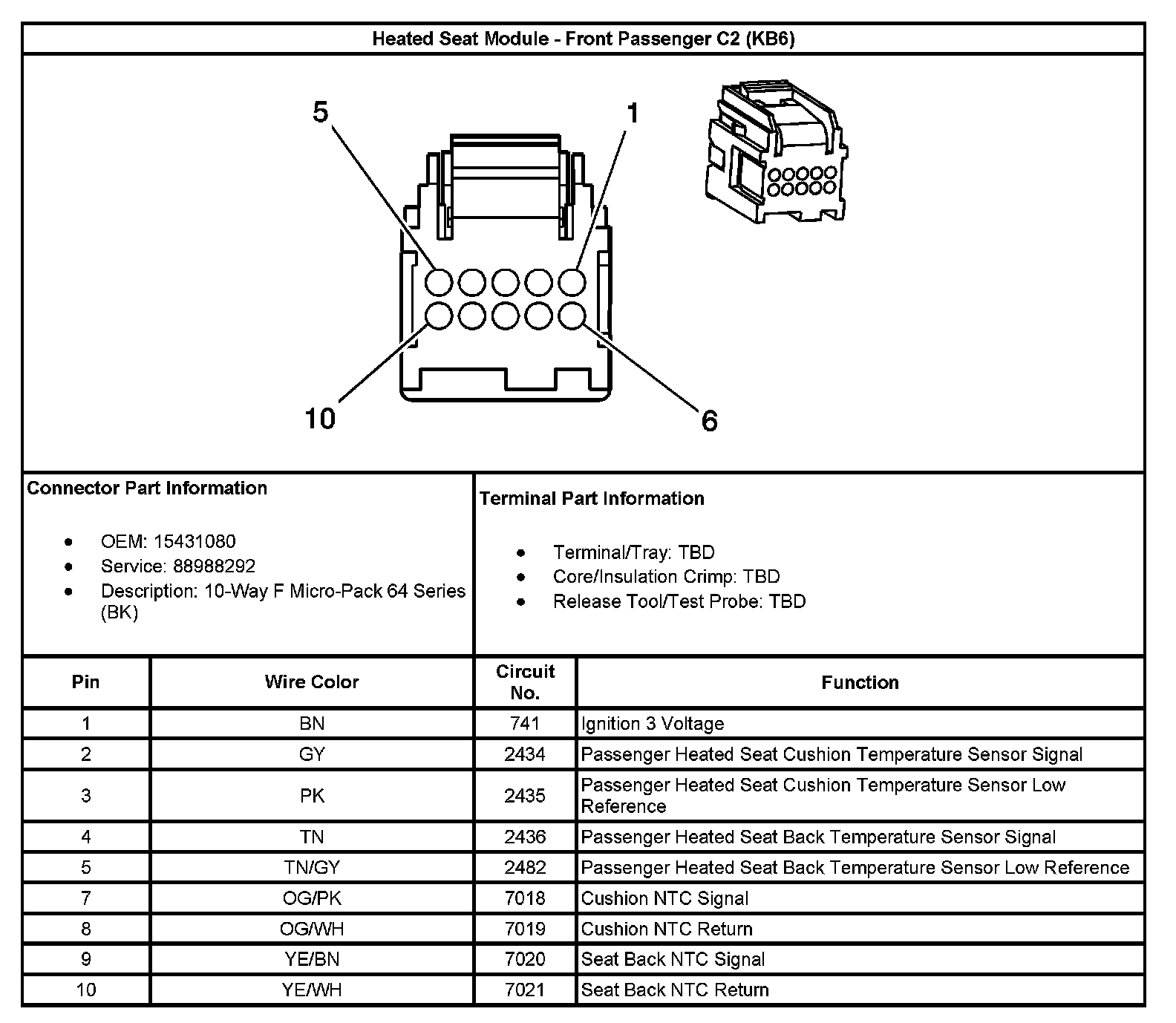

Heated Seat Module - Front Passenger C2 (With RPO Code KB6):

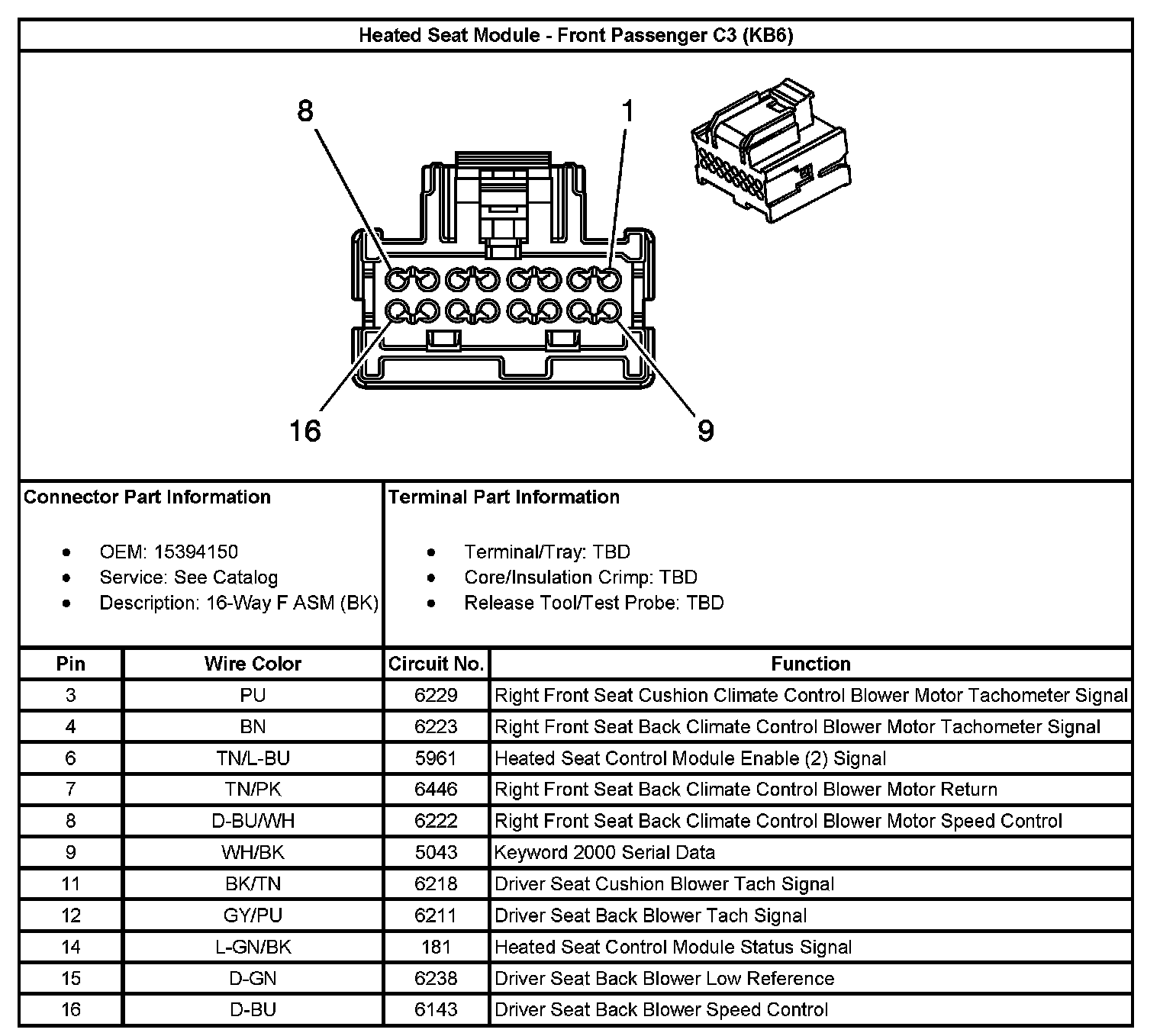

Heated Seat Module - Front Passenger C3 (With RPO Code KB6):
