Seat Temperature Control Module: Diagrams

Heated Seat Module - Driver C1:

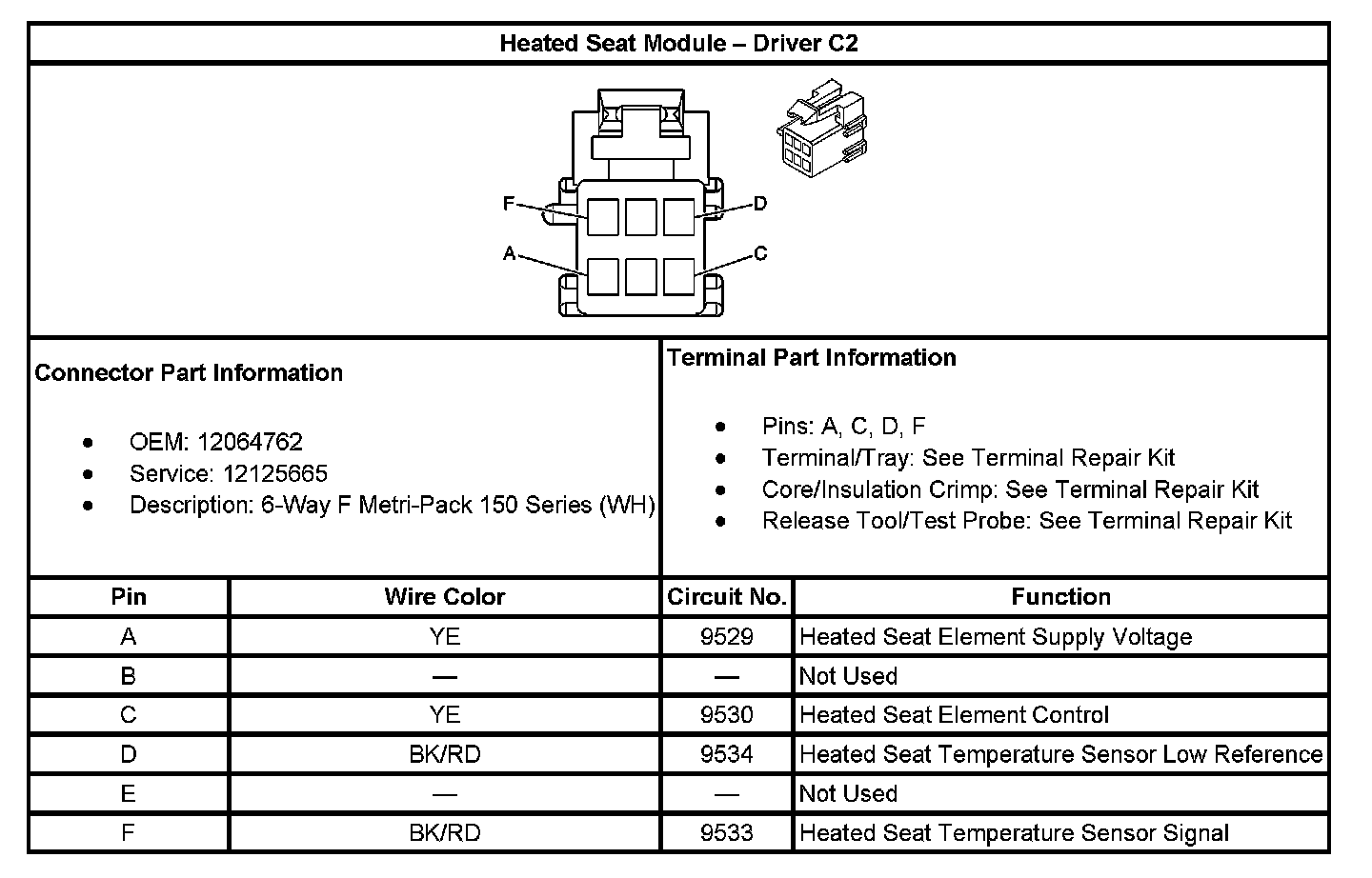

Heated Seat Module - Driver C2:

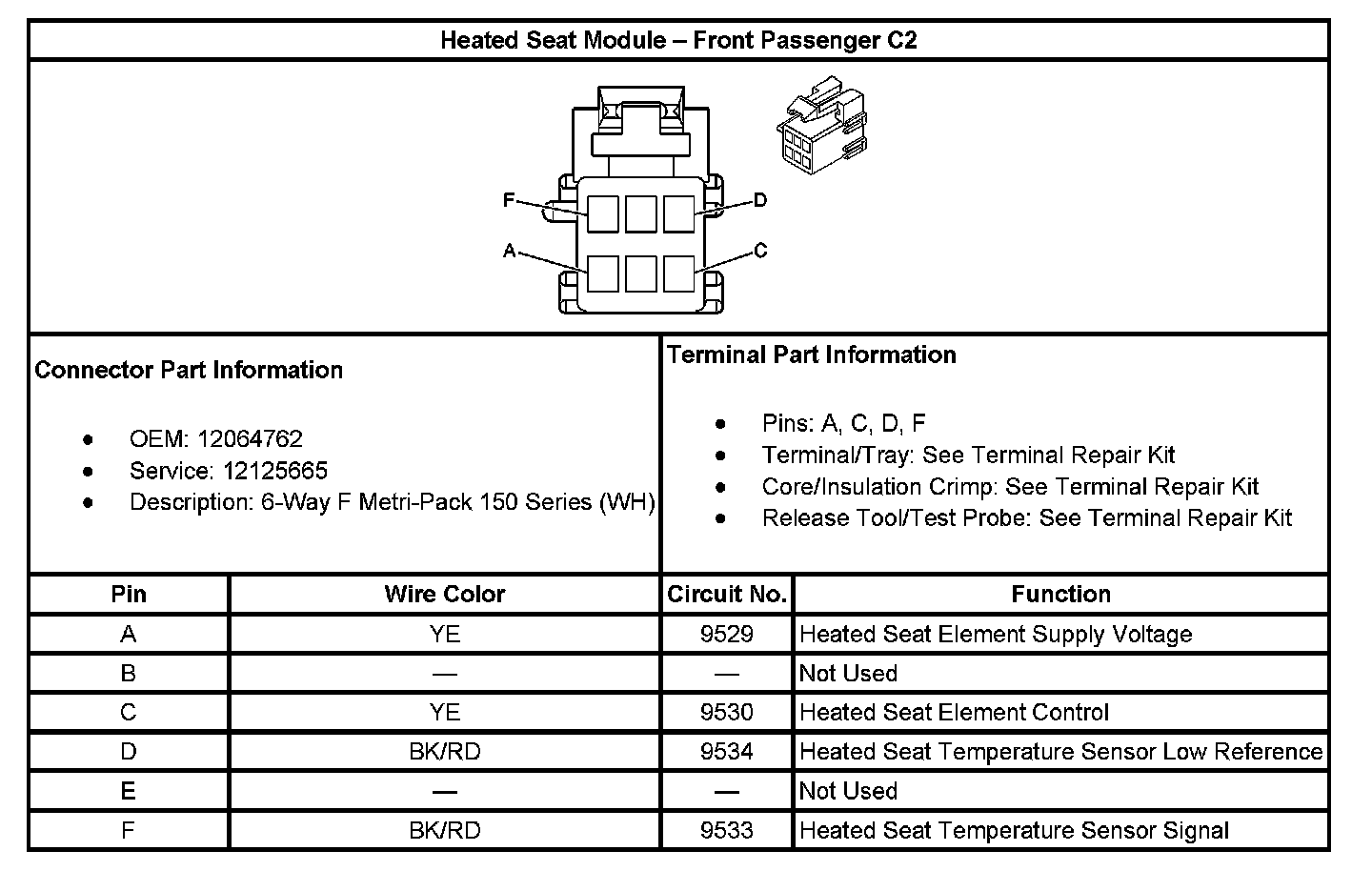

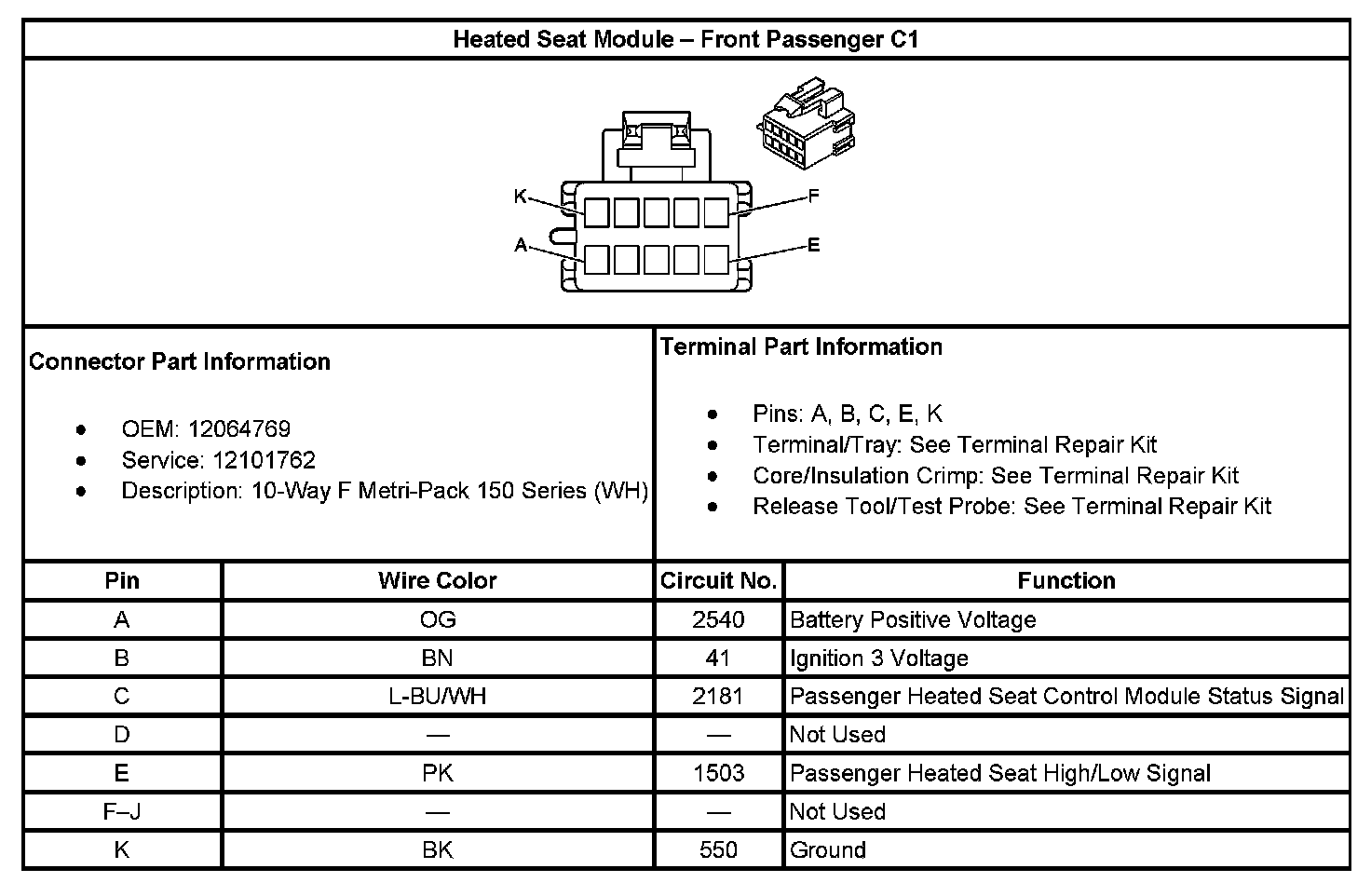

Heated Seat Module - Front Passenger C1:



Heated Seat Module - Front Passenger C2:
