Home >> Cadillac >> 2006 >> CTS V6-3.6L VIN 7 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values

Normal Scan Data Values

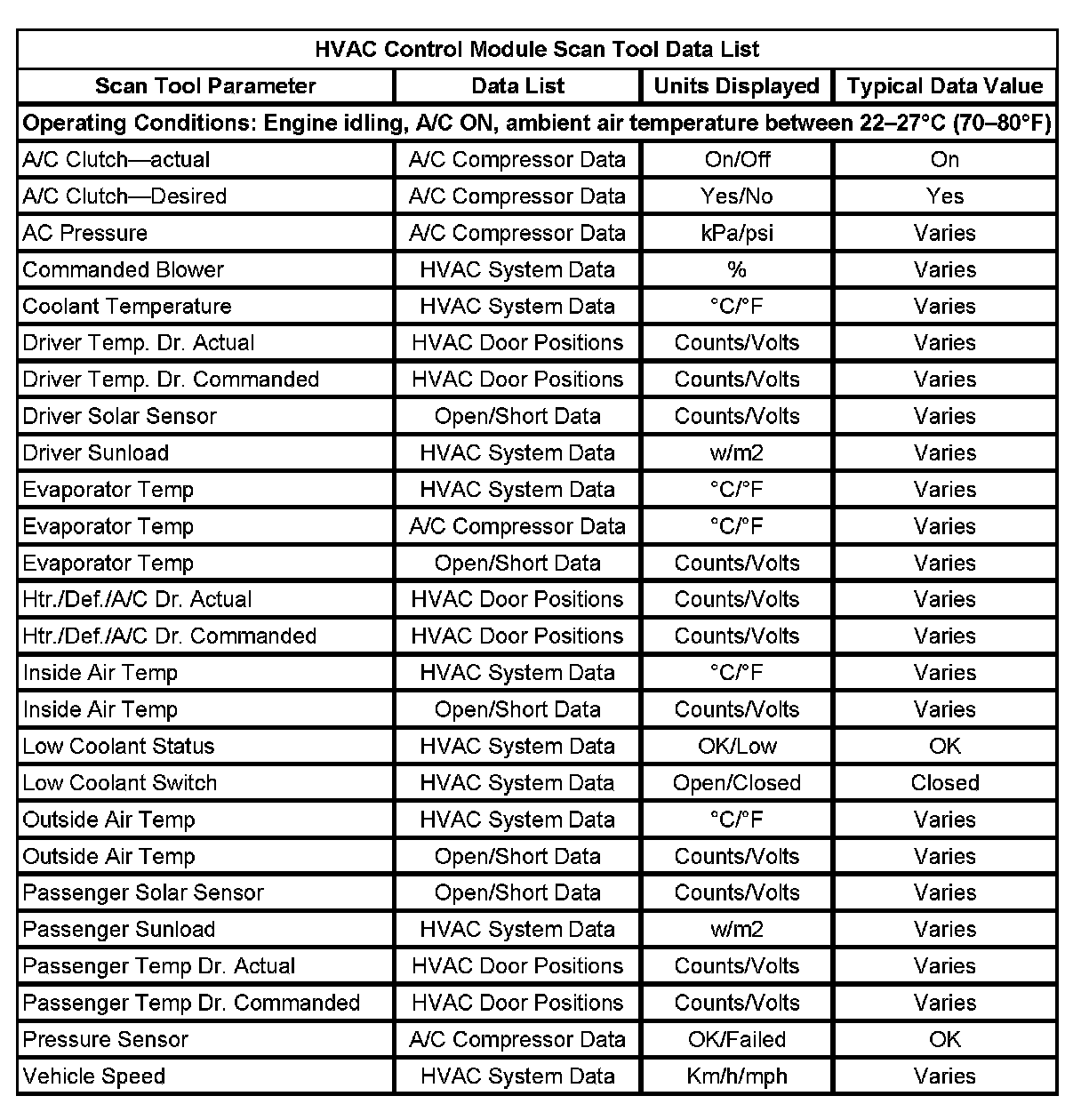

HVAC Control Module Scan Tool Data List:



ECM Scan Tool Data List:
