Data Link Connector: Locations

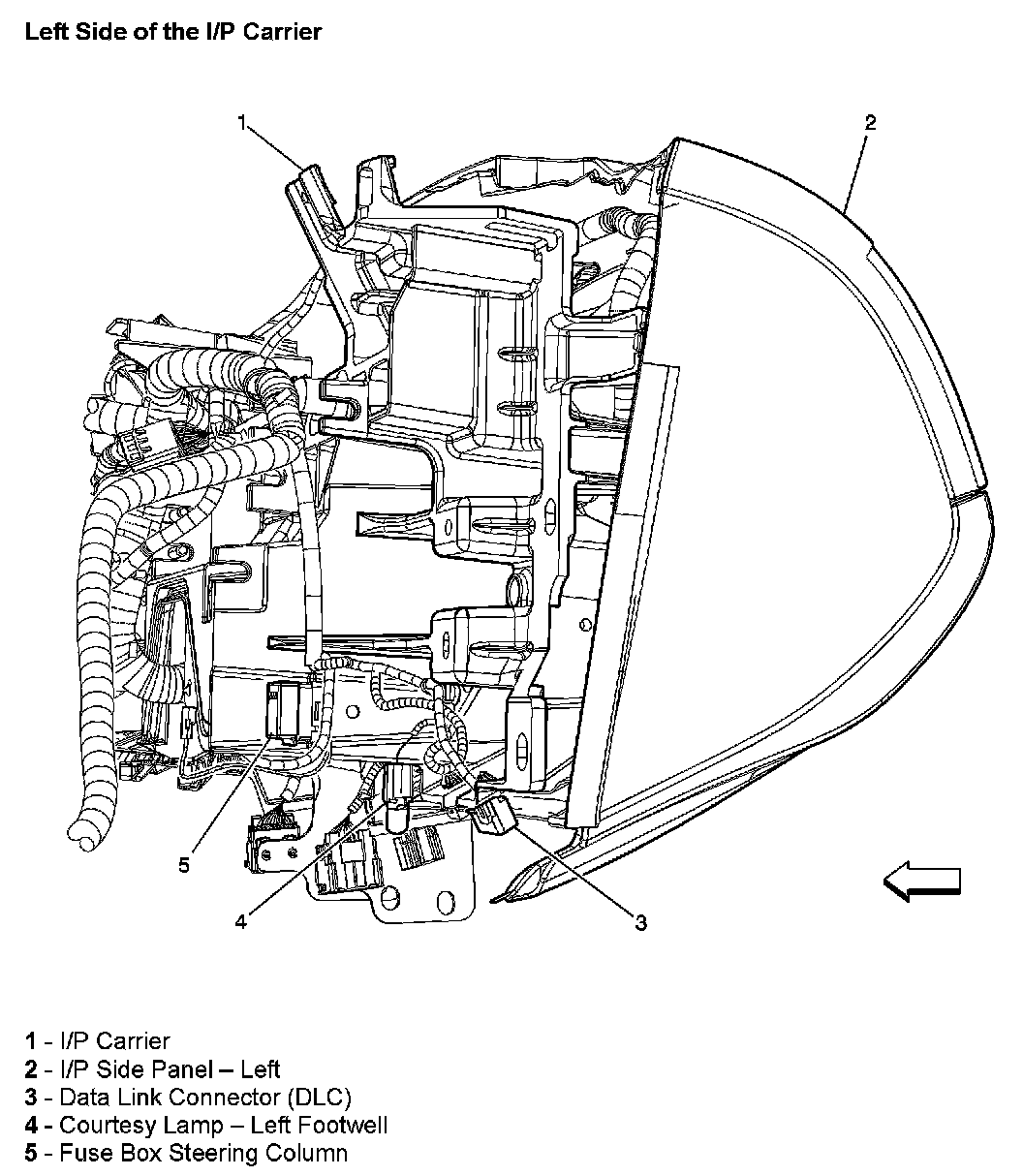

Left Side Of The I/P Carrier:

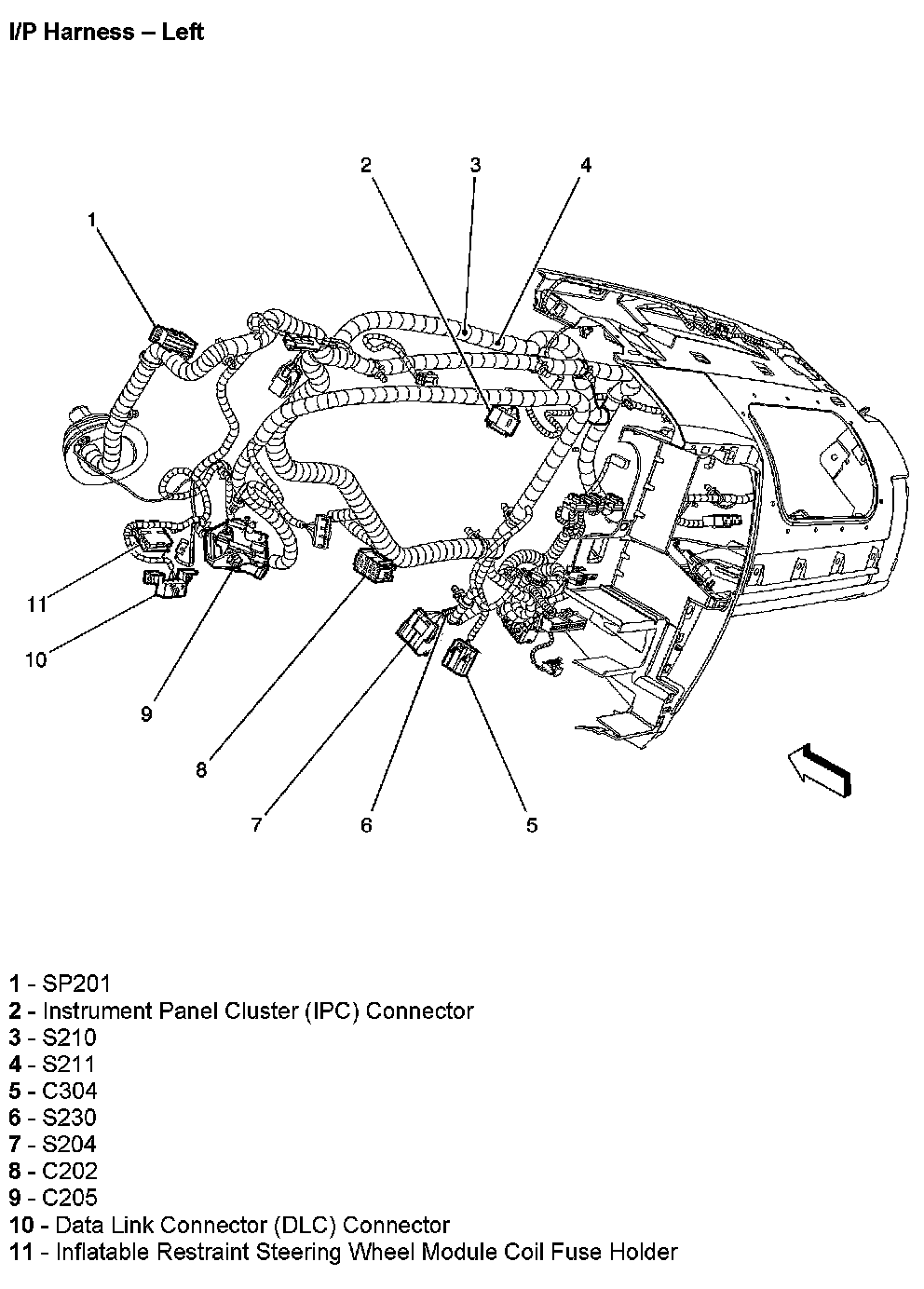

I/P Harness - Left:

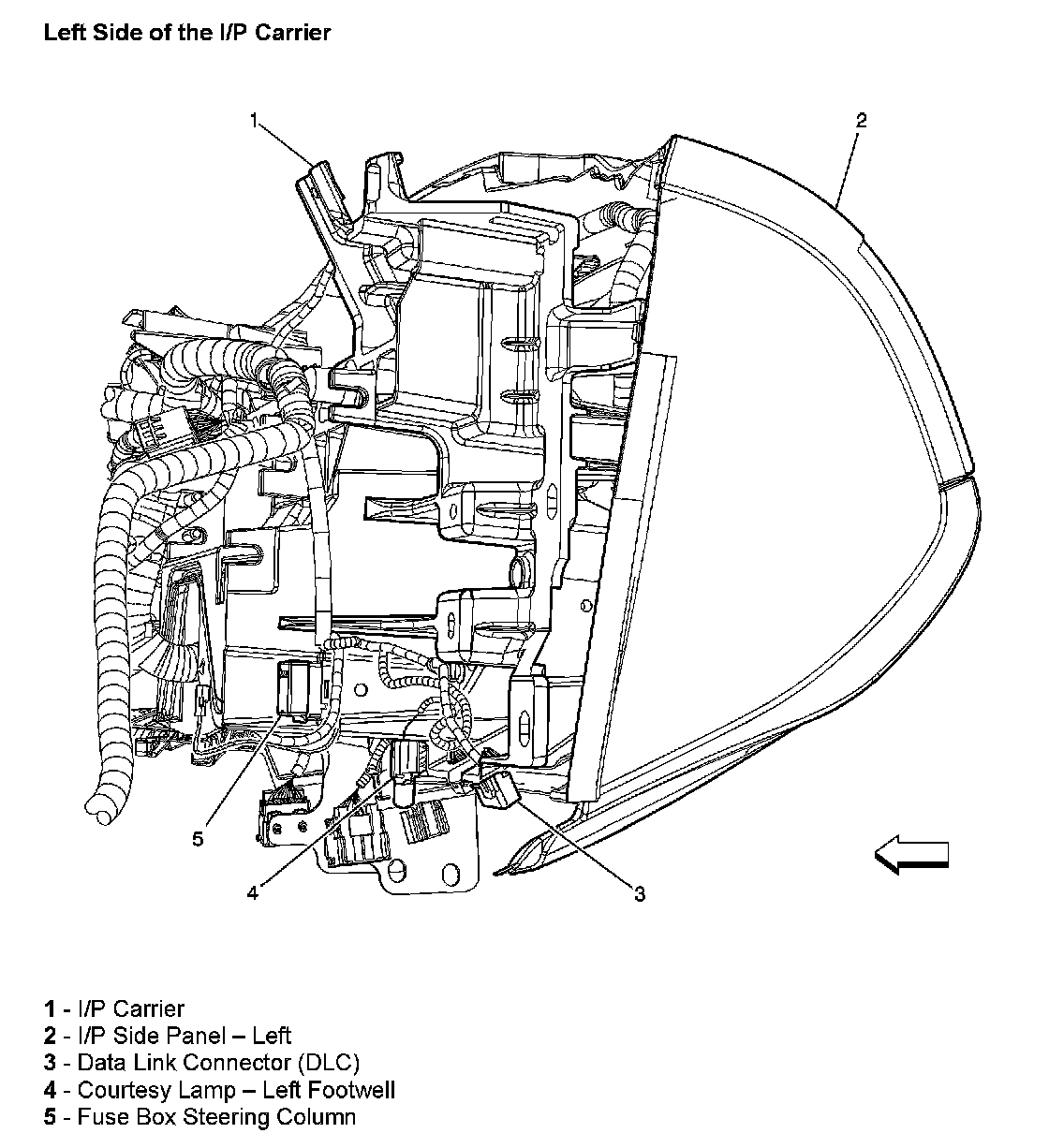

Left Side of the I/P Carrier:
