STS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heads Up Display Unit
Heads Up Display Unit

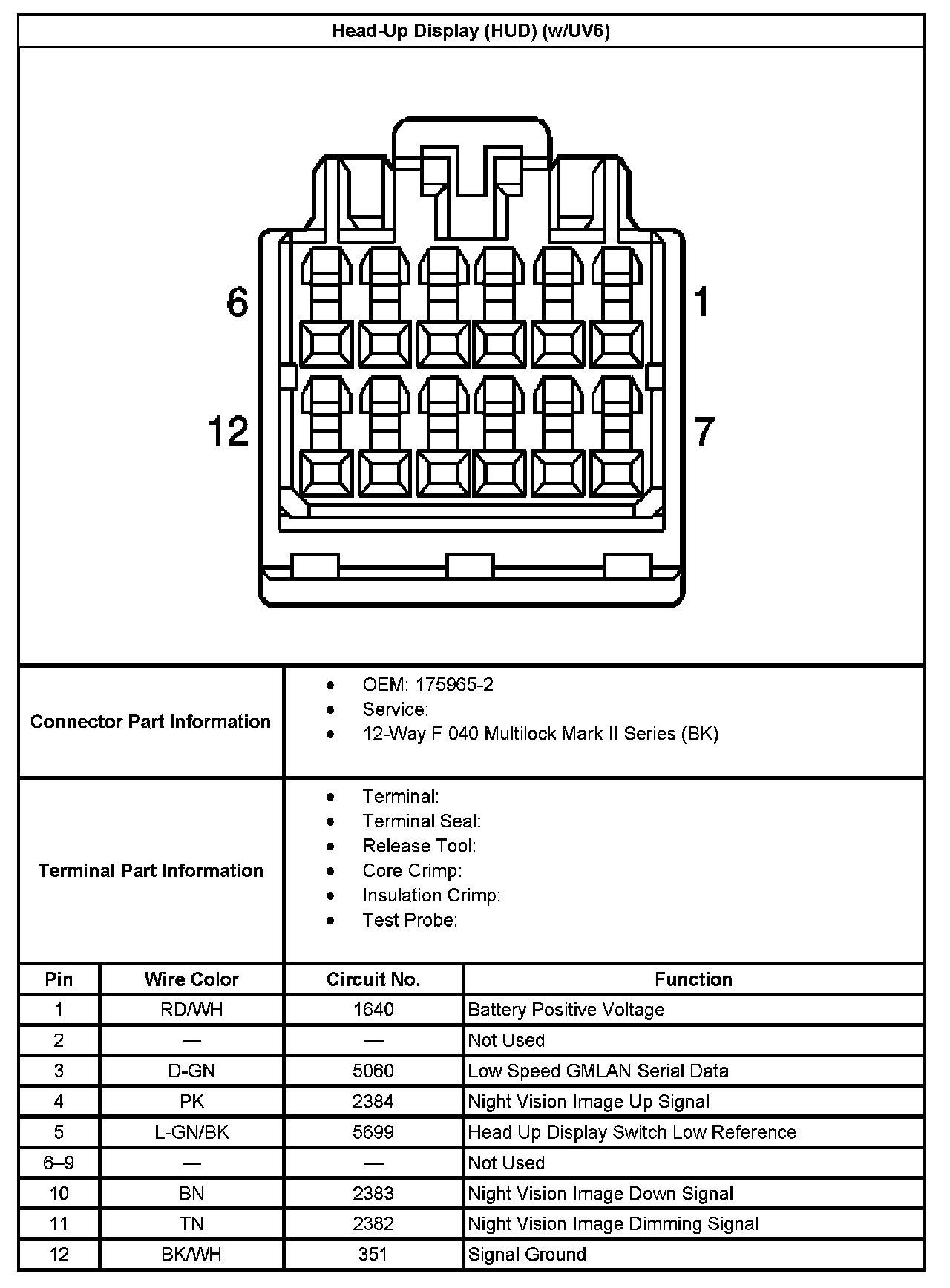

Head-Up Display (HUD) (with RPO Code UV6):
