Headlamp
>>
Headlamp Alignment Control Module
Headlamp Alignment Control Module

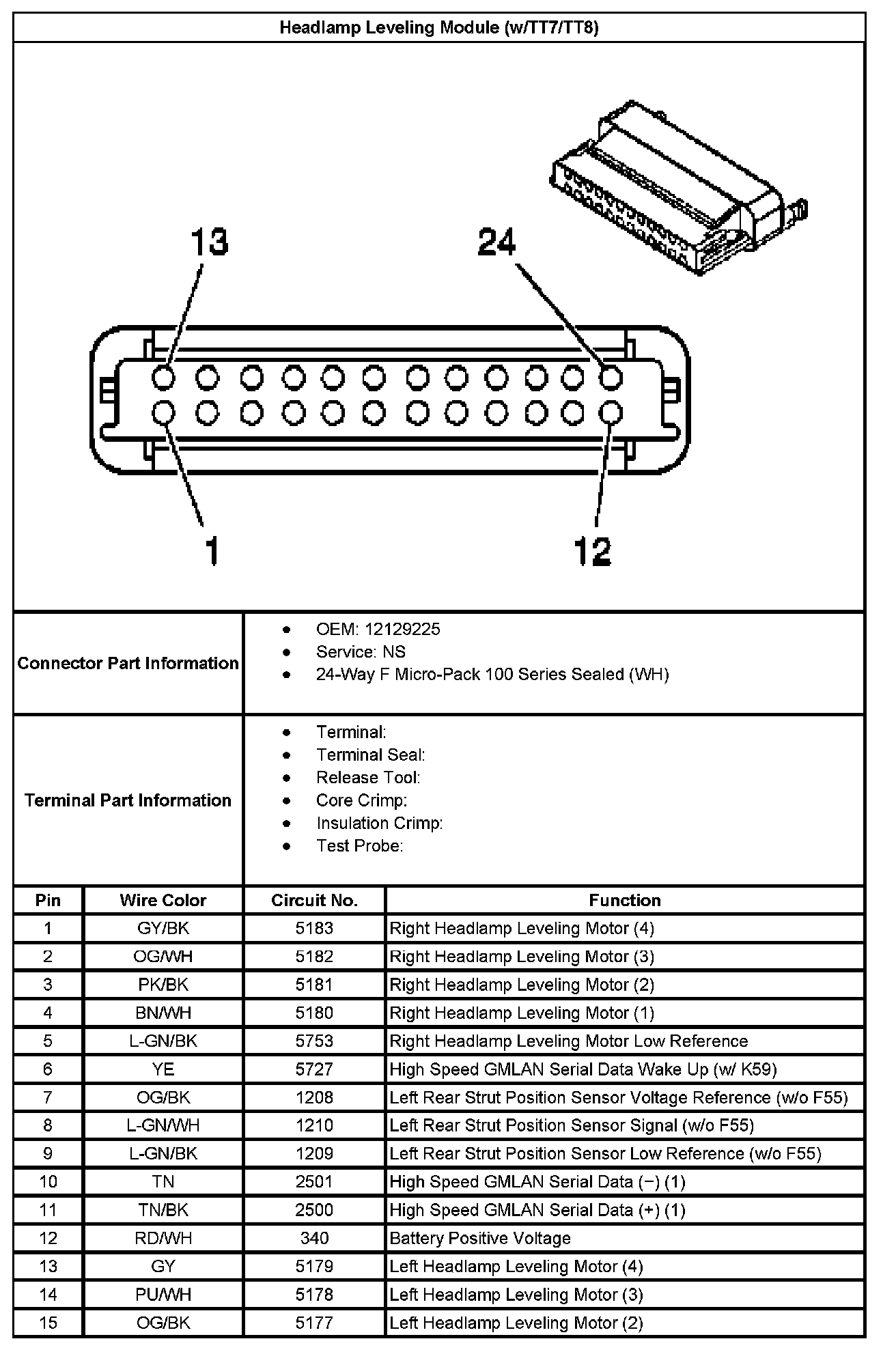

Headlamp Leveling Module (With RPO Code TT7/TT8) Part 1:

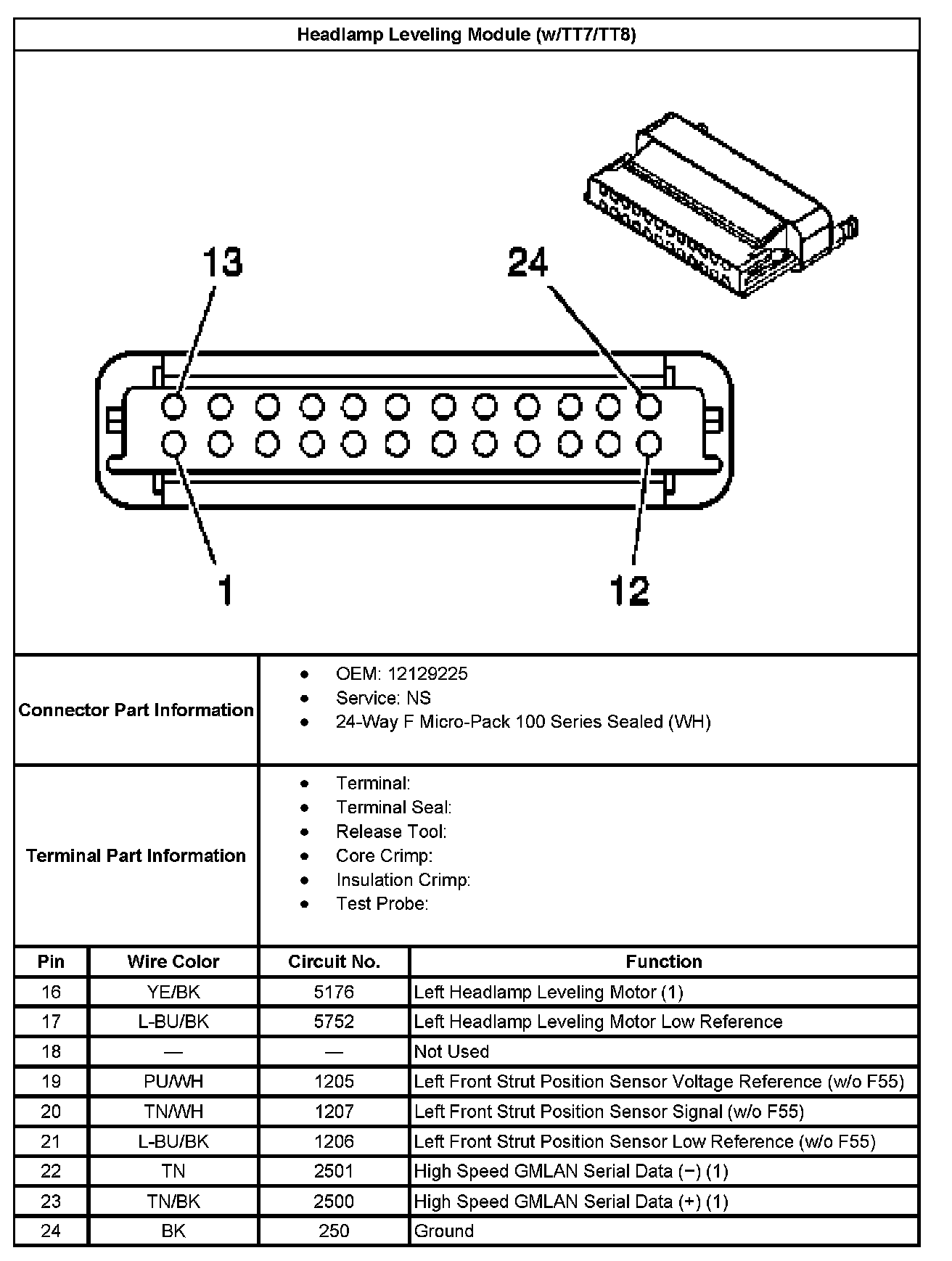

Headlamp Leveling Module (With RPO Code TT7/TT8) Part 2:
