Home >> Cadillac >> 2005 >> STS V6-3.6L VIN 7 >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Service and Repair

Seat Temperature Control Module: Service and Repair

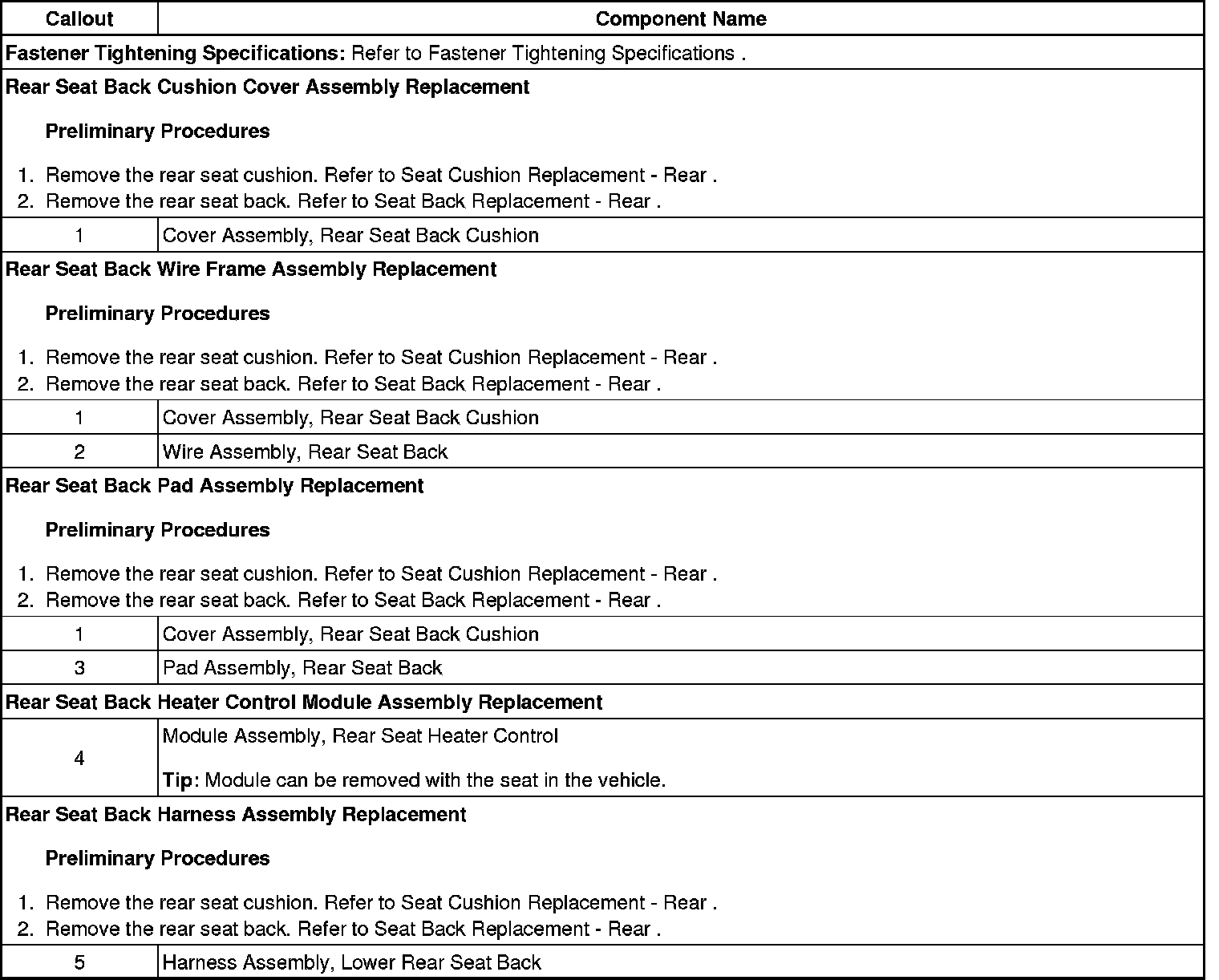

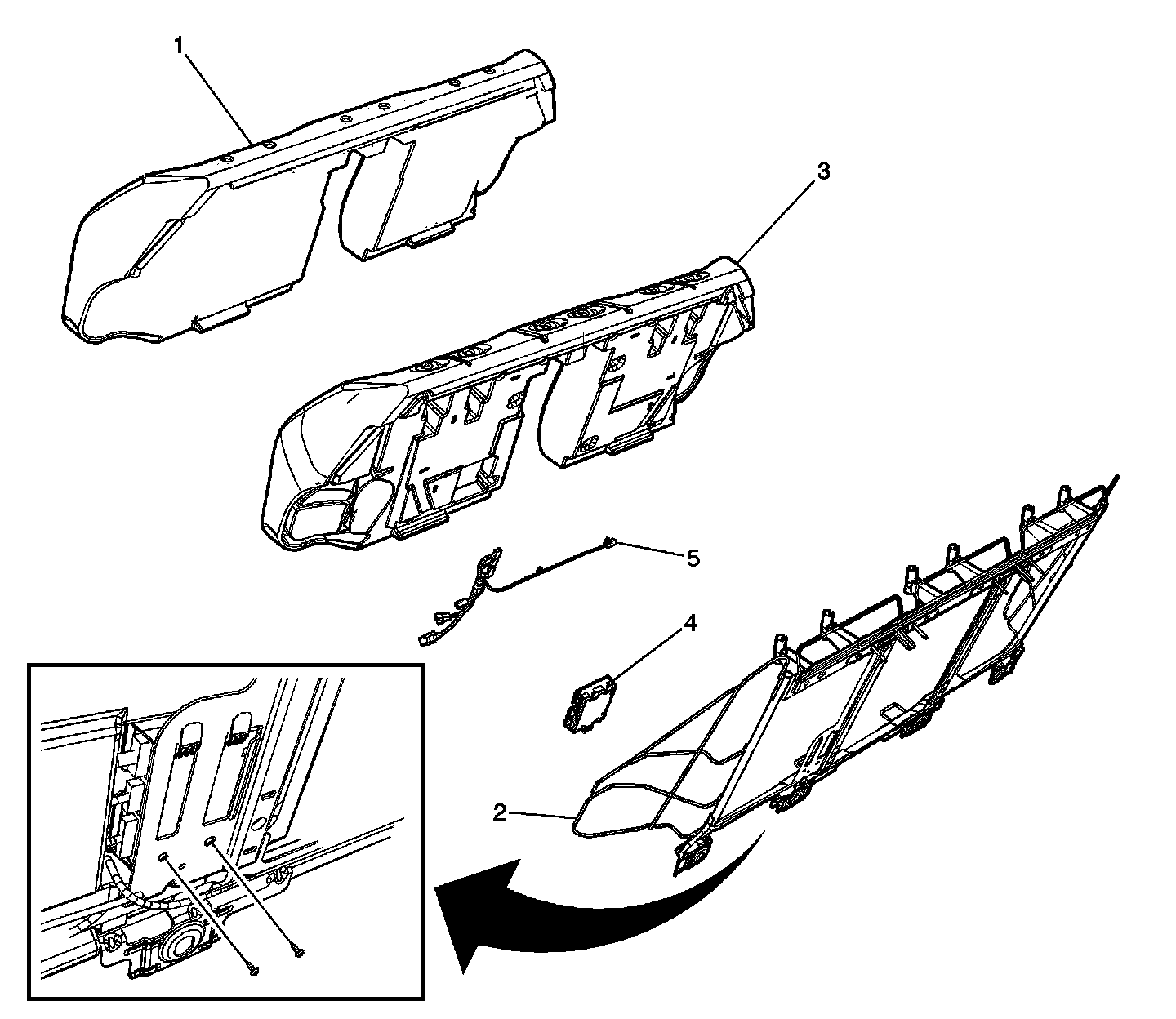

Seat Heater Control Module, Pad, Wire Harness, Frame Replacement - Rear Seat Back
