Home >> Cadillac >> 2004 >> Seville V8-4.6L VIN 9 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Door Module >> Locations

Door Module: Locations

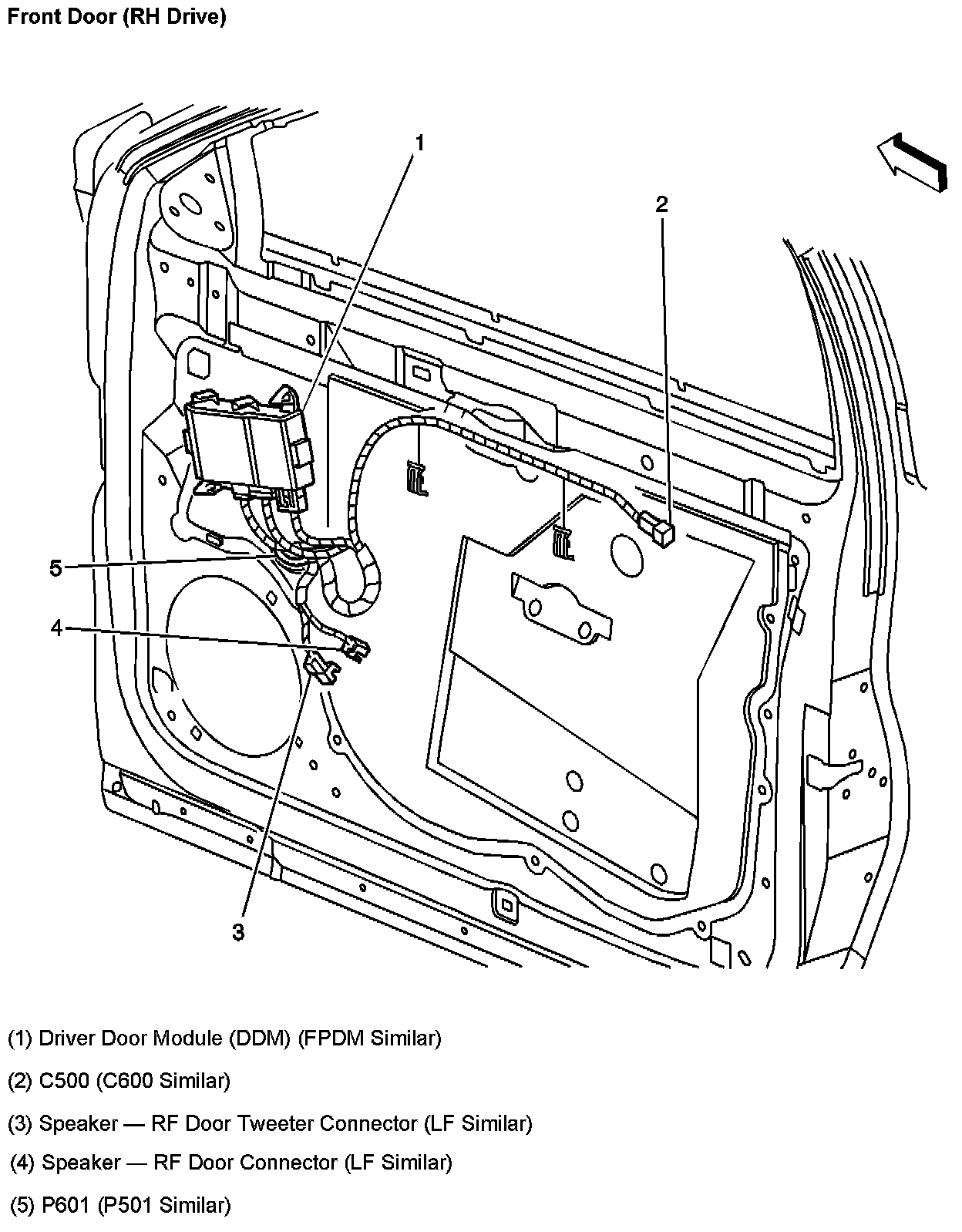

Front Door (RH Drive):

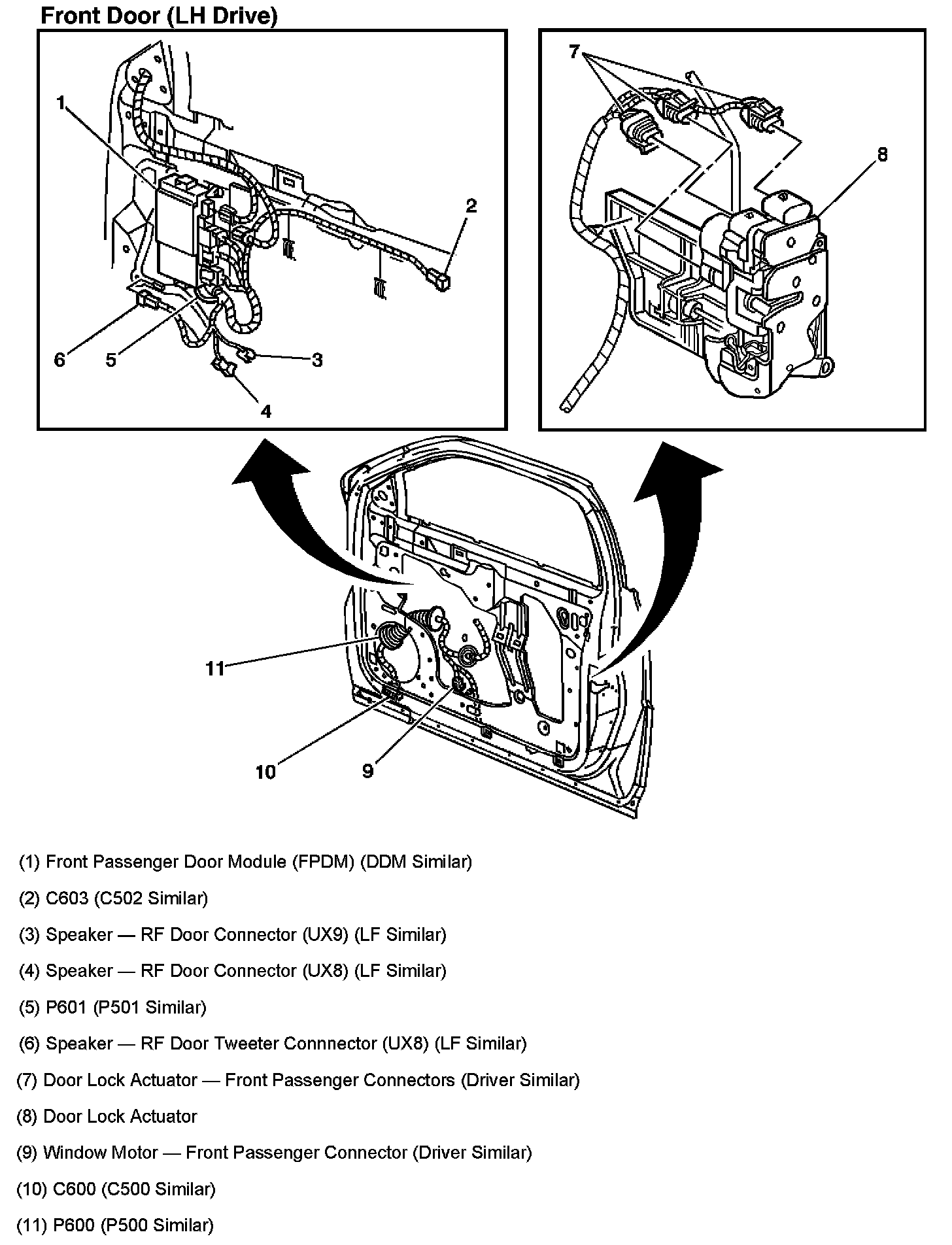

Front Door (LH Drive):

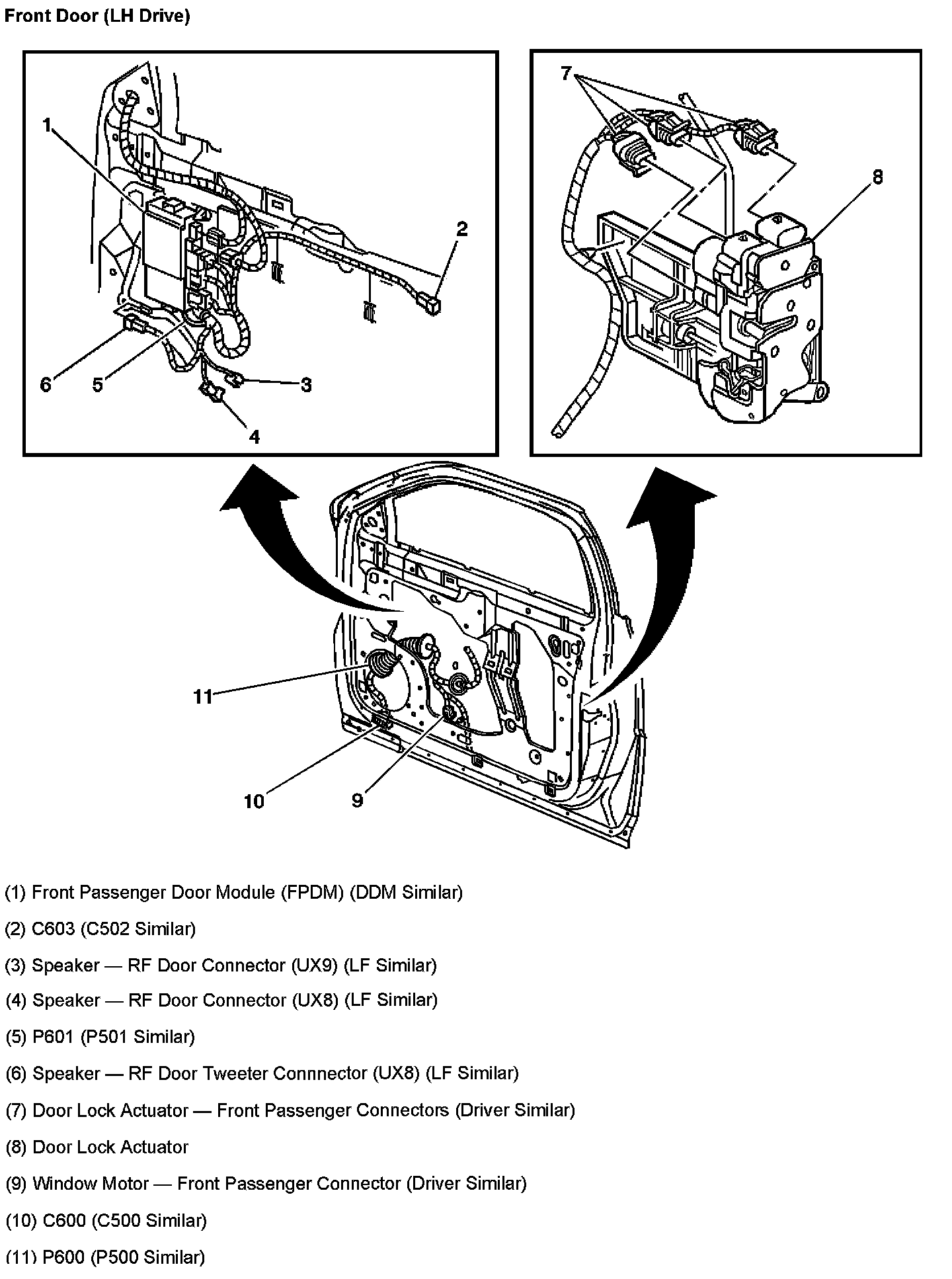

Front Door (LH Drive):

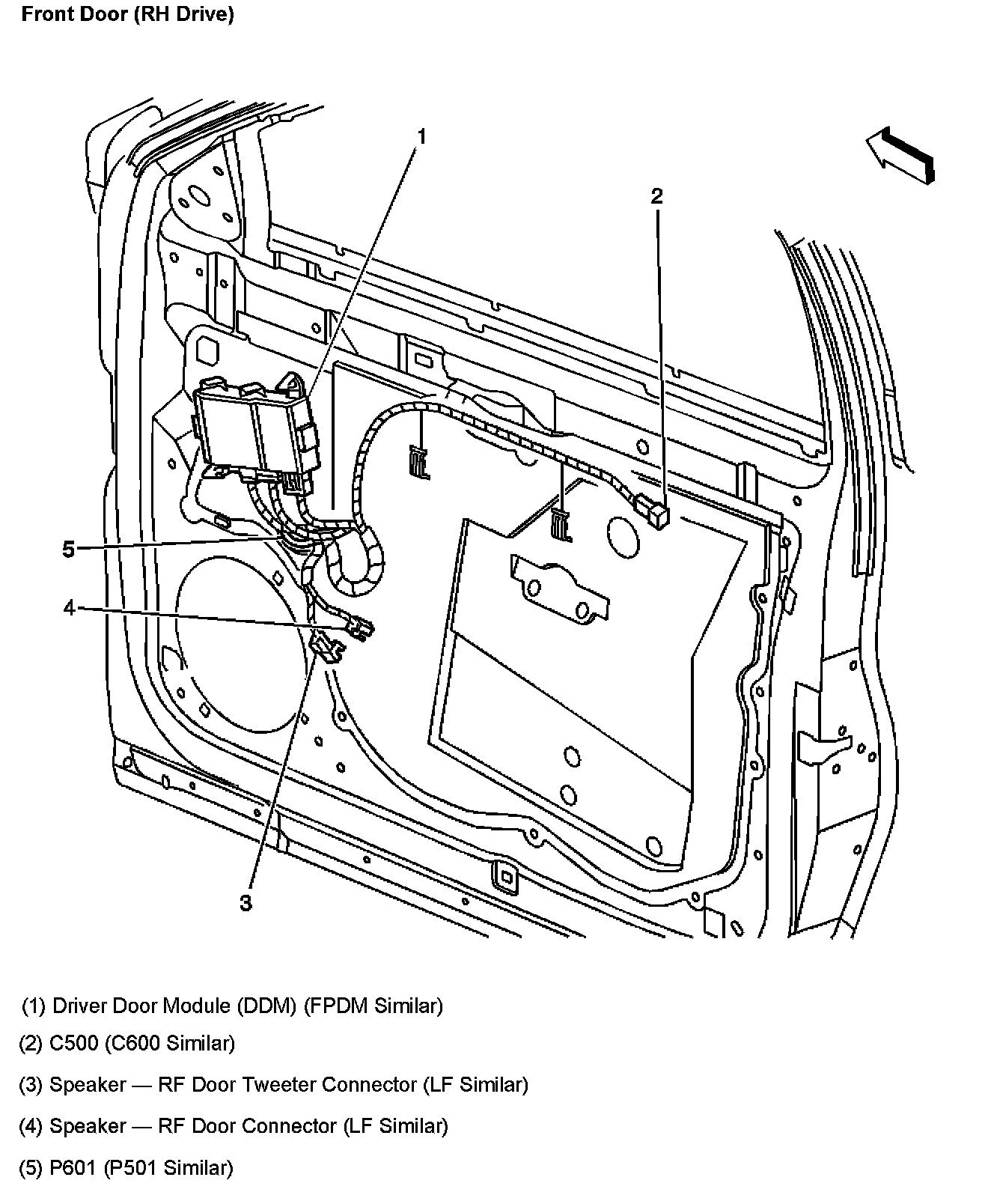

Front Door (RH Drive):
