Home >> Cadillac >> 2004 >> DeVille V8-4.6L VIN Y >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Mechanical Specifications >> Thread Repair Specifications >> Engine Block Front

Engine Block Front

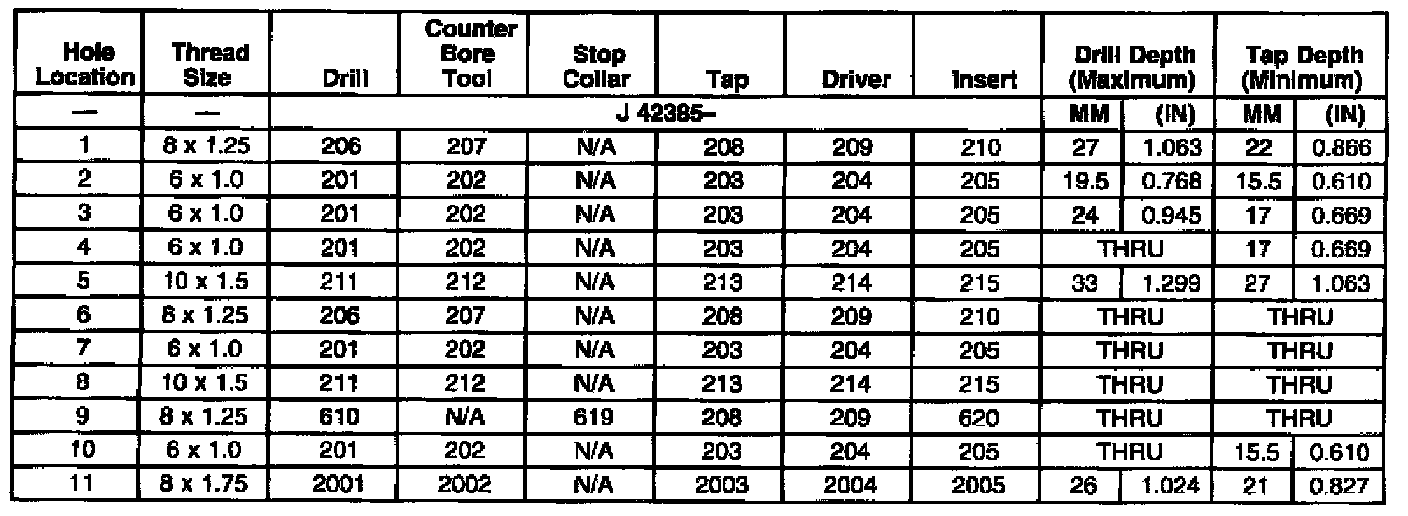

Engine Block Front Part 1:

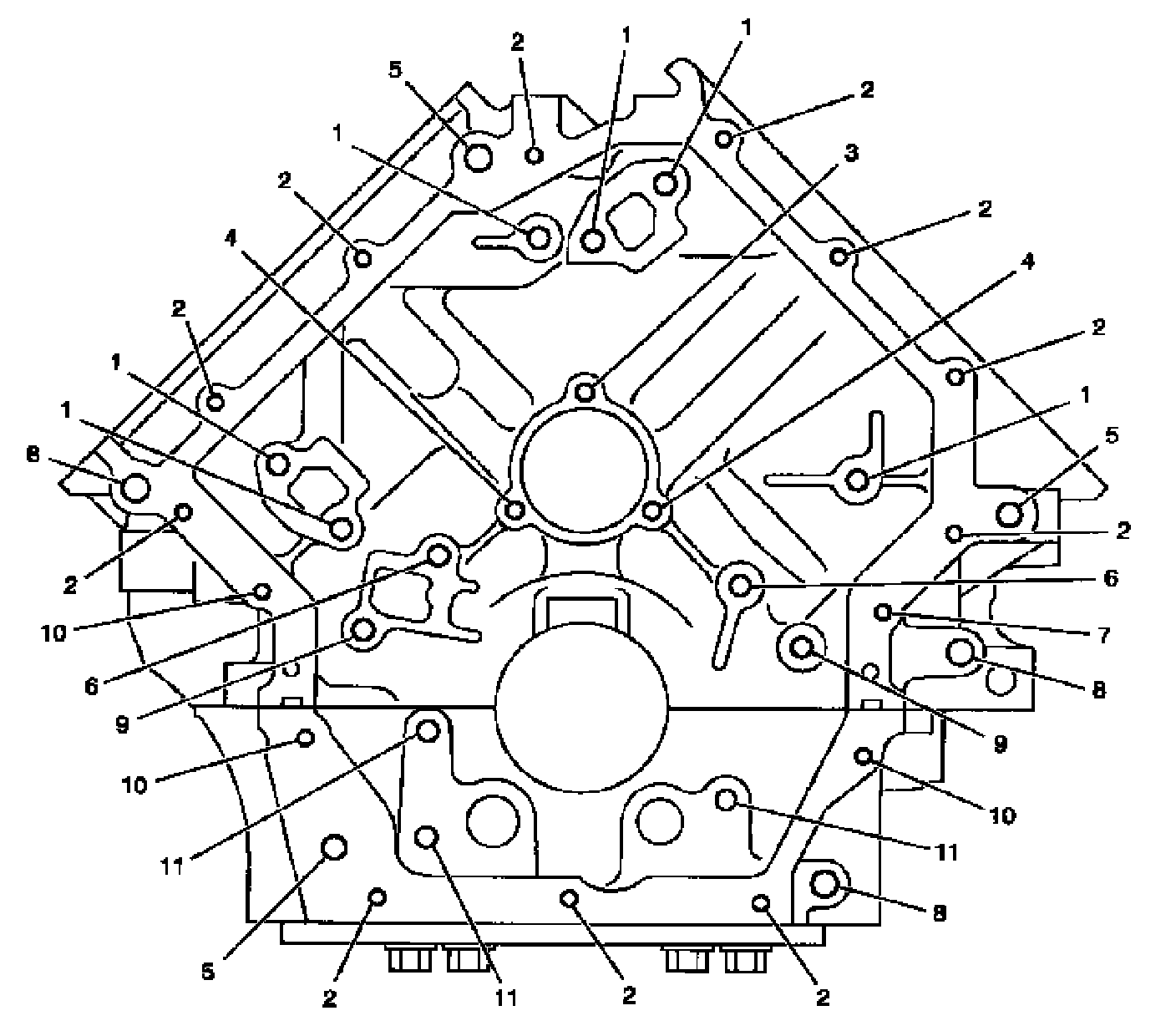

Engine Block Front Part 2:
