FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Cadillac
>>
2004
>>
CTS V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
System Specifications
>>
Rear Drive Axle
>>

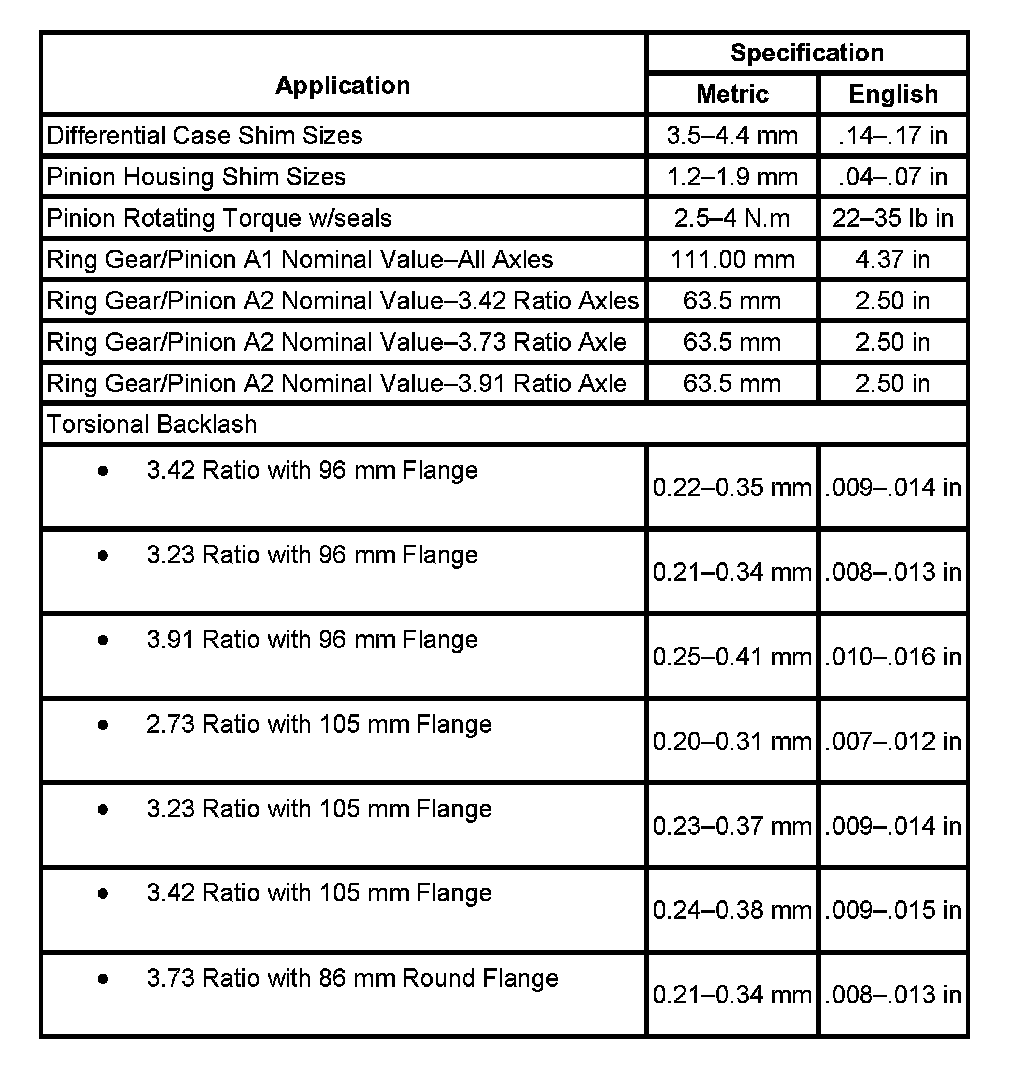

Rear Axle Specifications
Rear Axle Specifications
Rear Axle Specifications
