Home >> Cadillac >> 2004 >> CTS V8-5.7L VIN P >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly

Axle Shaft Assembly

Component Locator

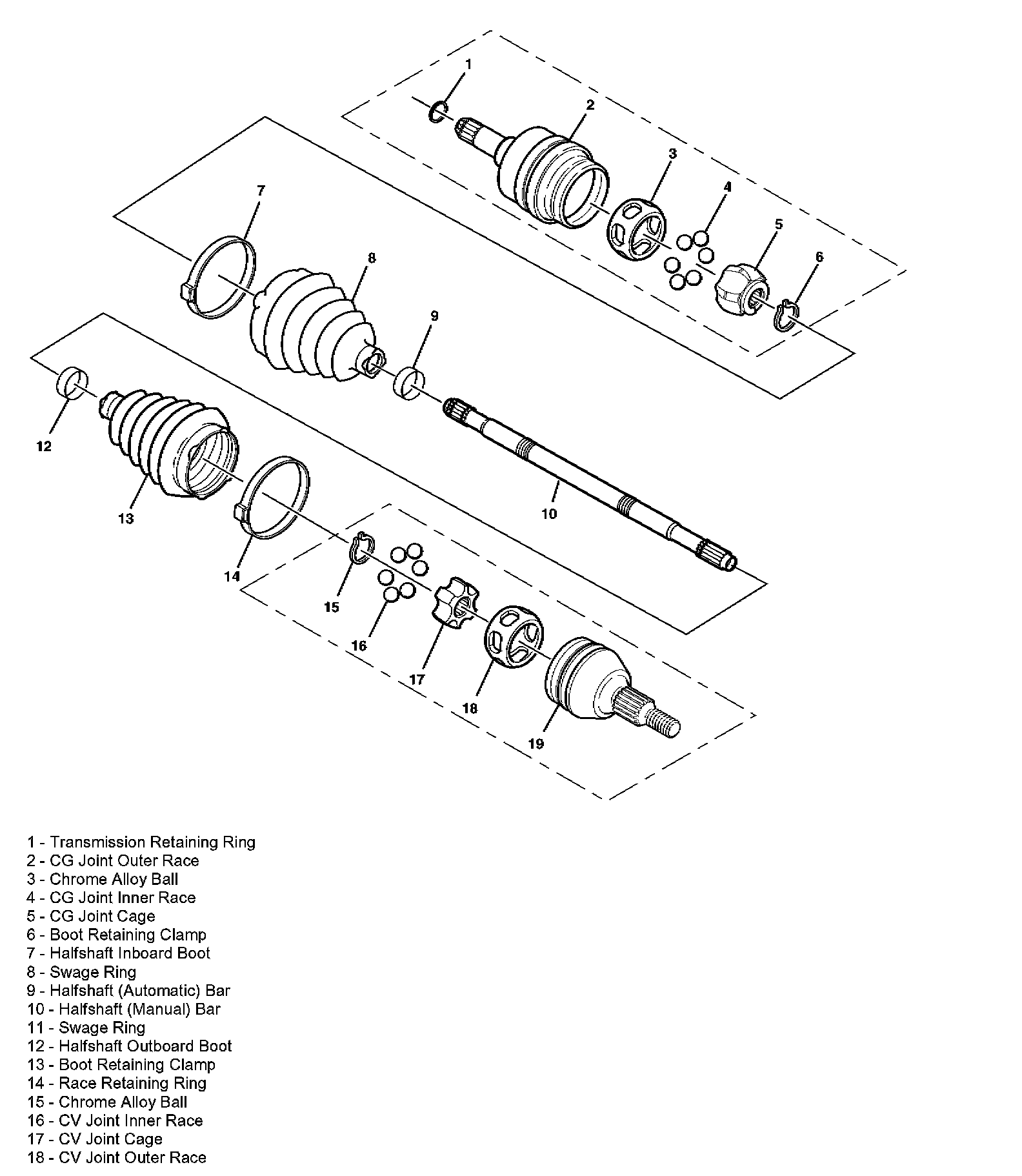

Wheel Drive Shafts Disassembled Views
