Exploded Views
>>
Automatic Transmission/Transaxle
>>

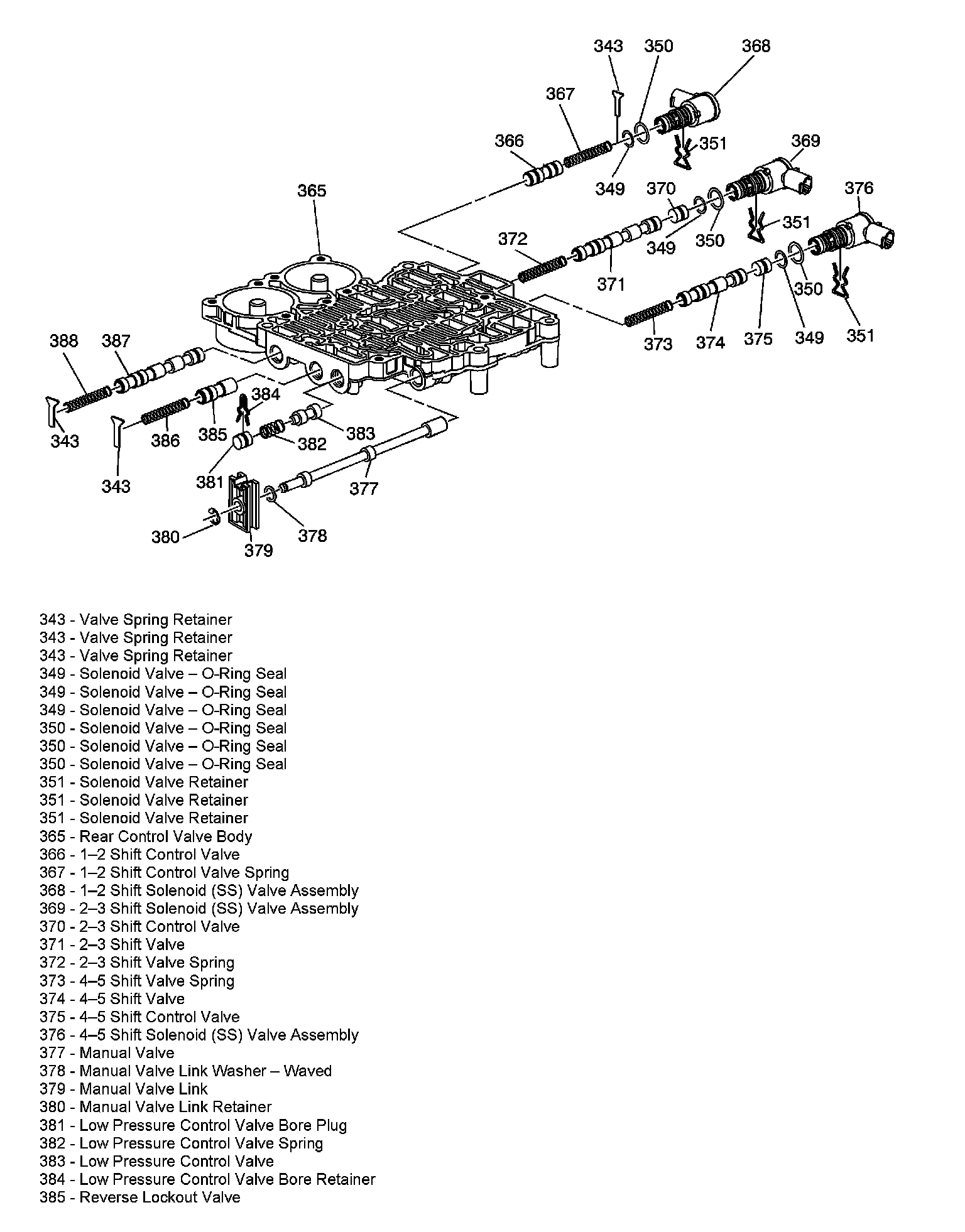

Rear Control Valve Body
Rear Control Valve Body
Rear Control Valve Body
