Home >> Cadillac >> 2004 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations

Oxygen Sensor: Locations

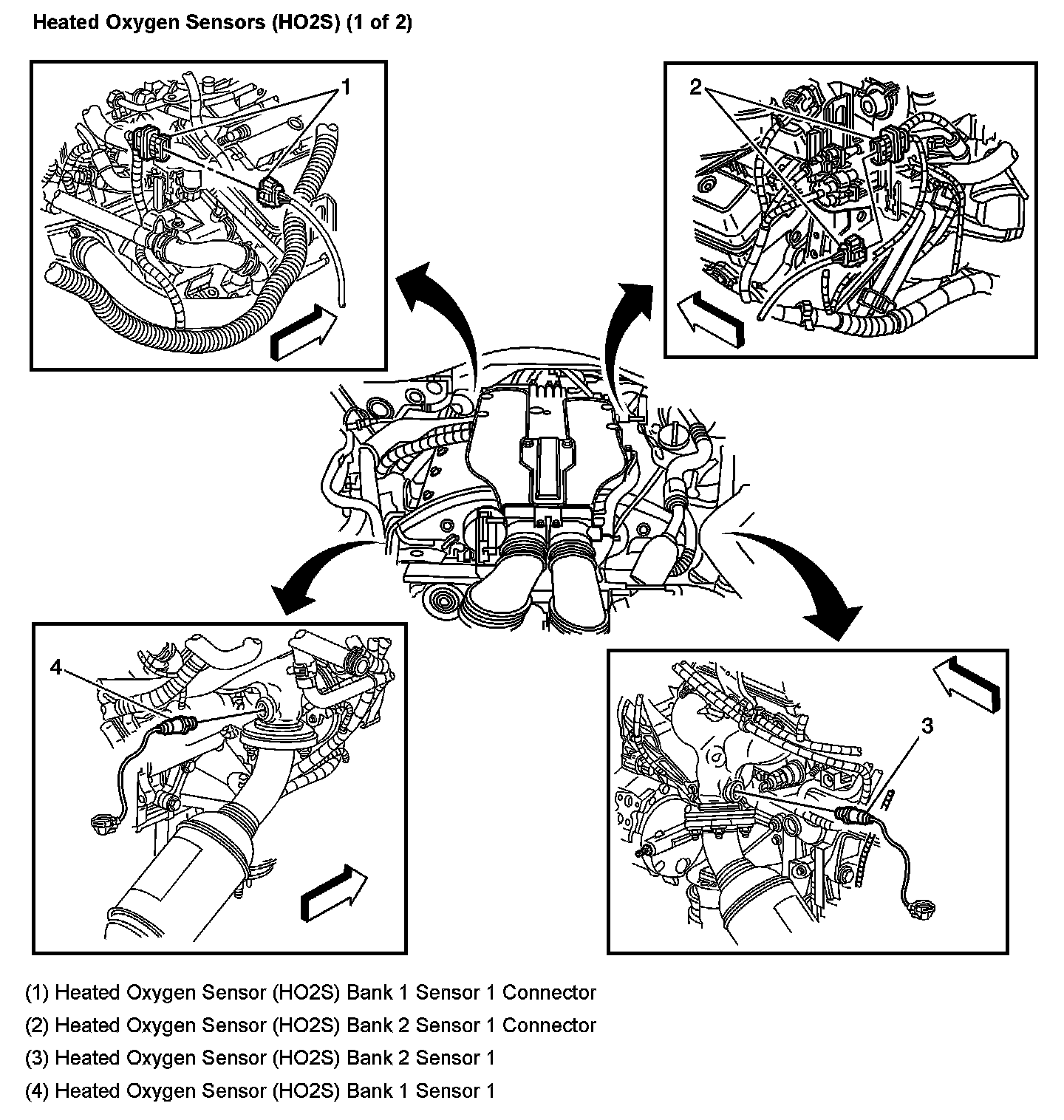

Heated Oxygen Sensors (HO2S) (1 Of 2):

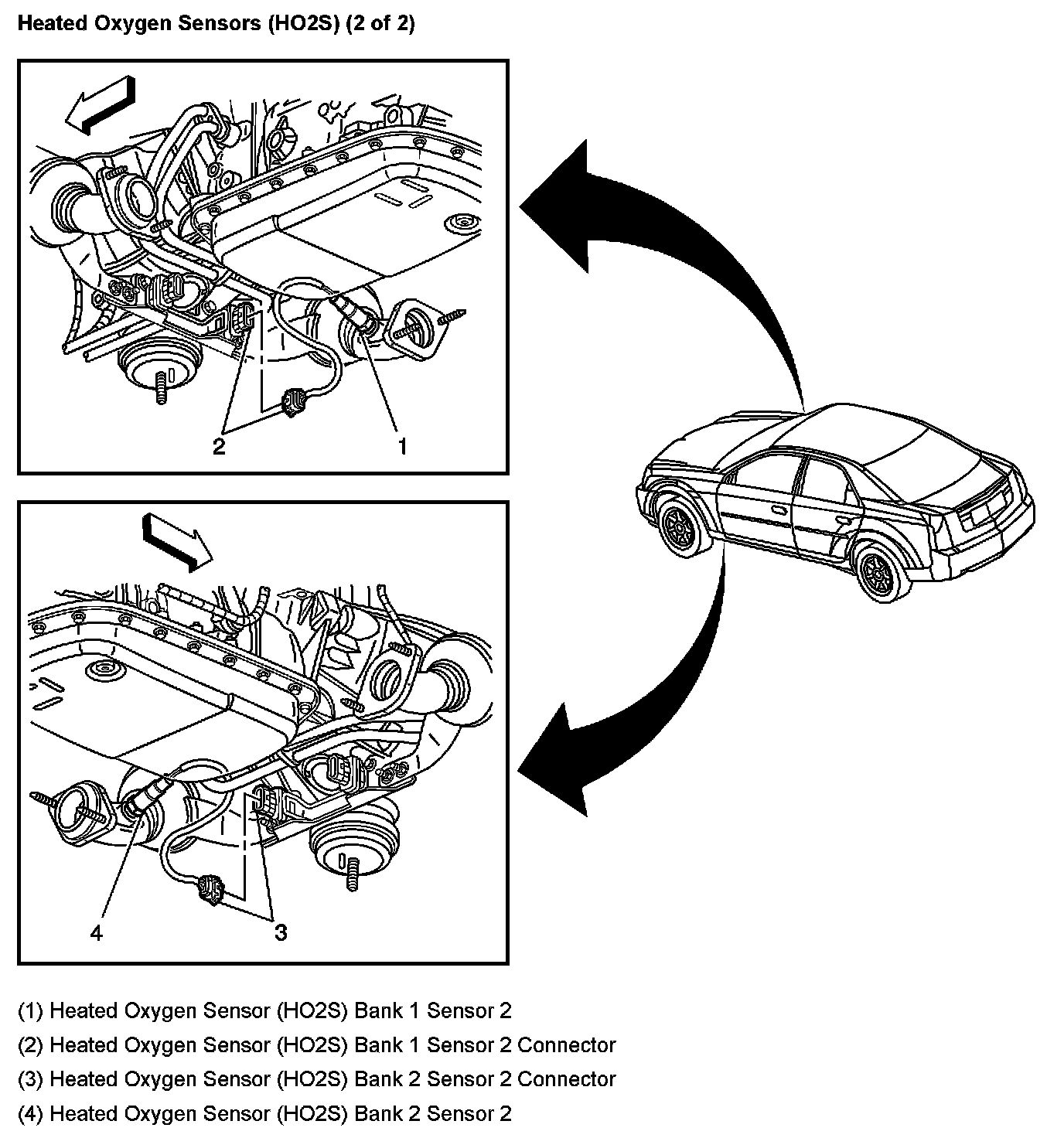

Heated Oxygen Sensors (HO2S) (2 Of 2):
