Home >> Cadillac >> 2003 >> DeVille V8-4.6L VIN Y >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations

Coolant Temperature Sensor/Switch (For Computer): Locations

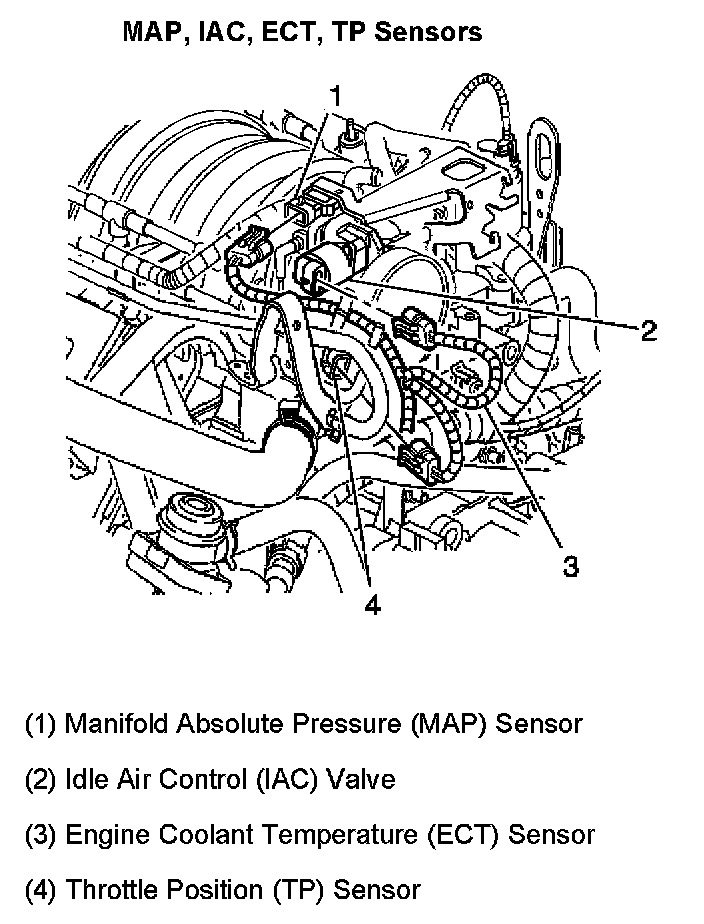

MAP, IAC, ECT, TP Sensors:



IAC Valve And TP Sensor:
