Rear Integration Module (RIM)

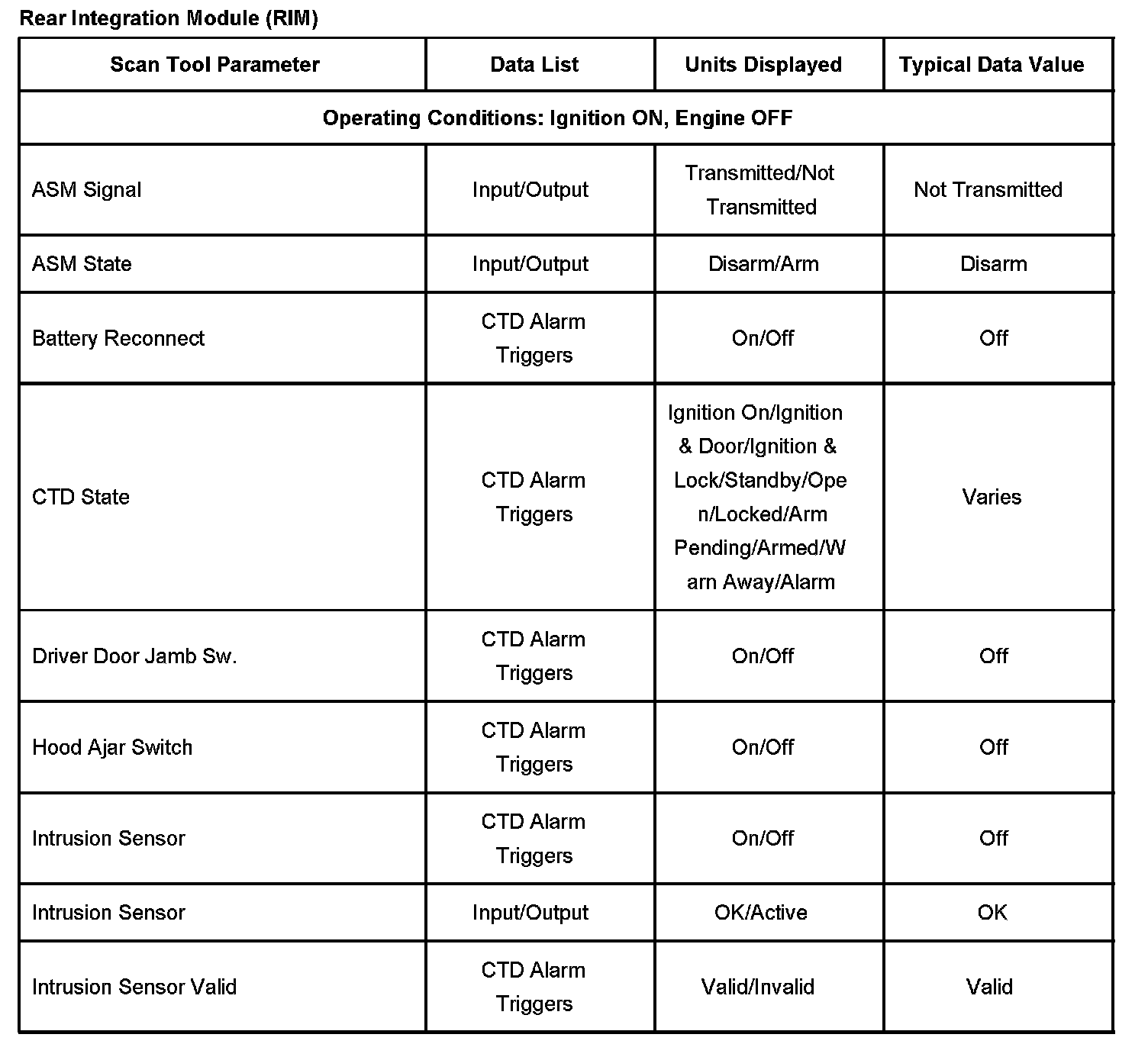

Rear Integration Module (RIM) Part 1:



Rear Integration Module (RIM) Part 2:
