Fuse/Relay Block - Rear

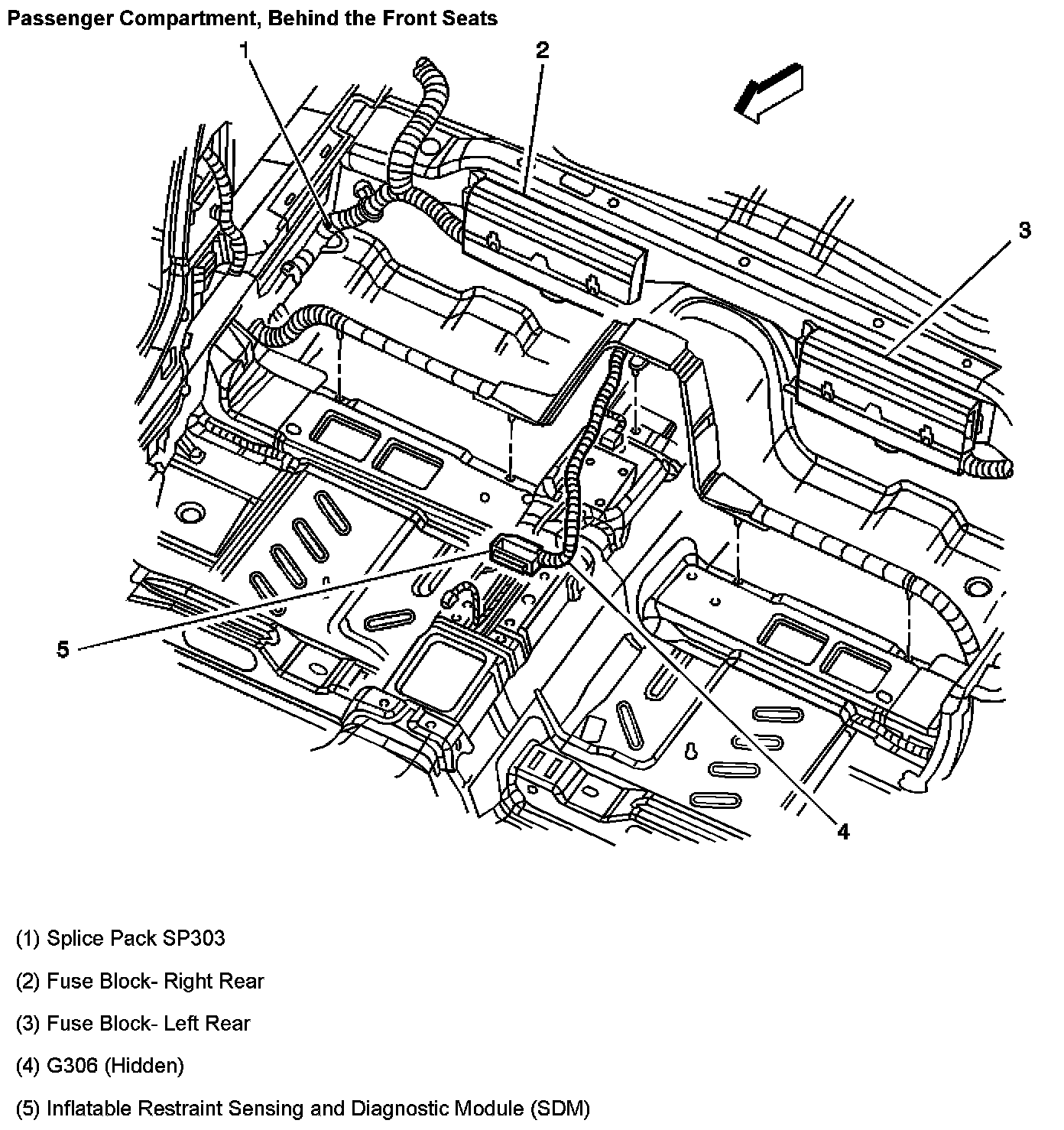

Passenger Compartment, Behind The Front Seats:

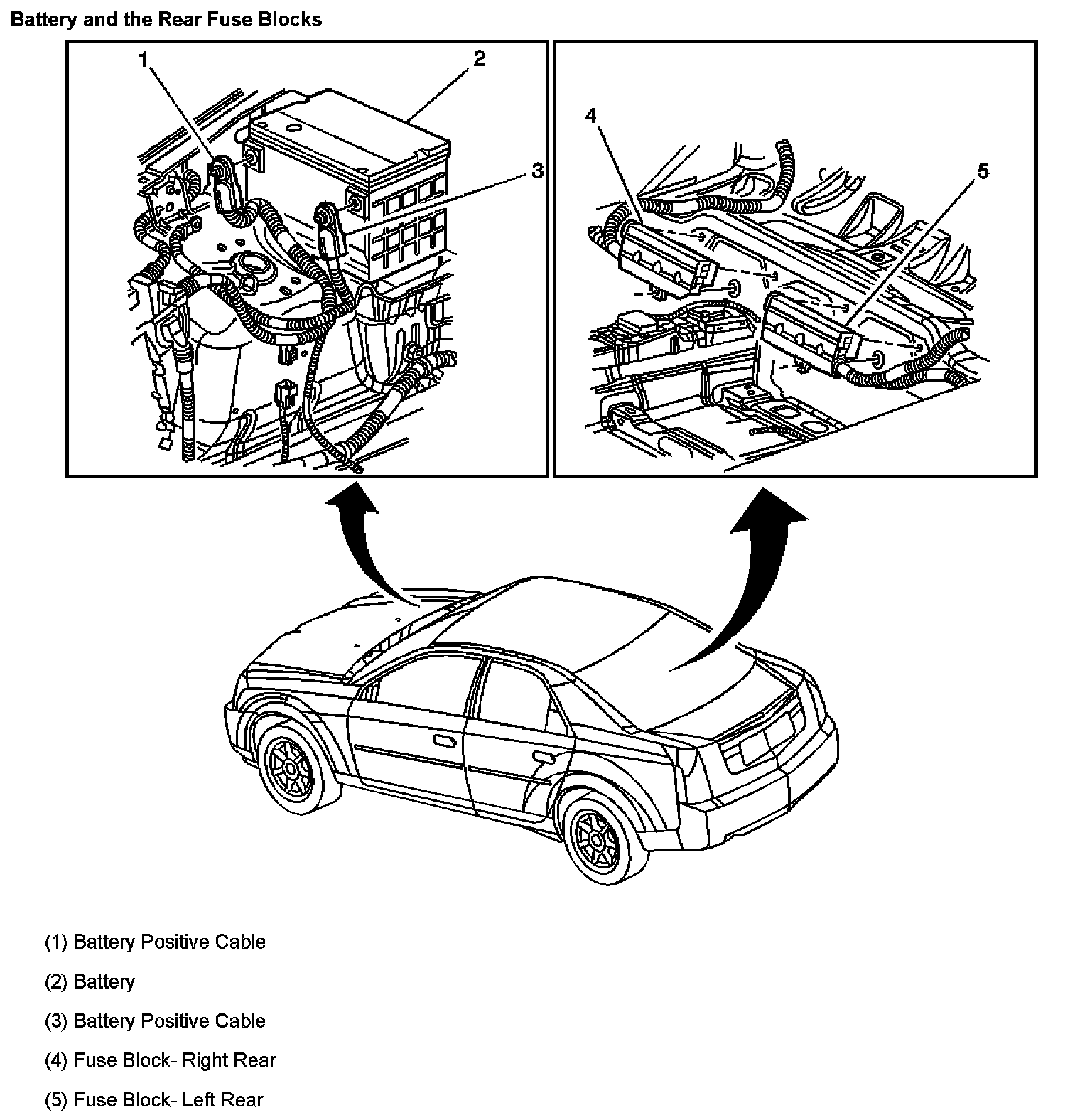

Battery And The Rear Fuse Blocks:
