Home >> Cadillac >> 2003 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls

Scan Tool Output Controls

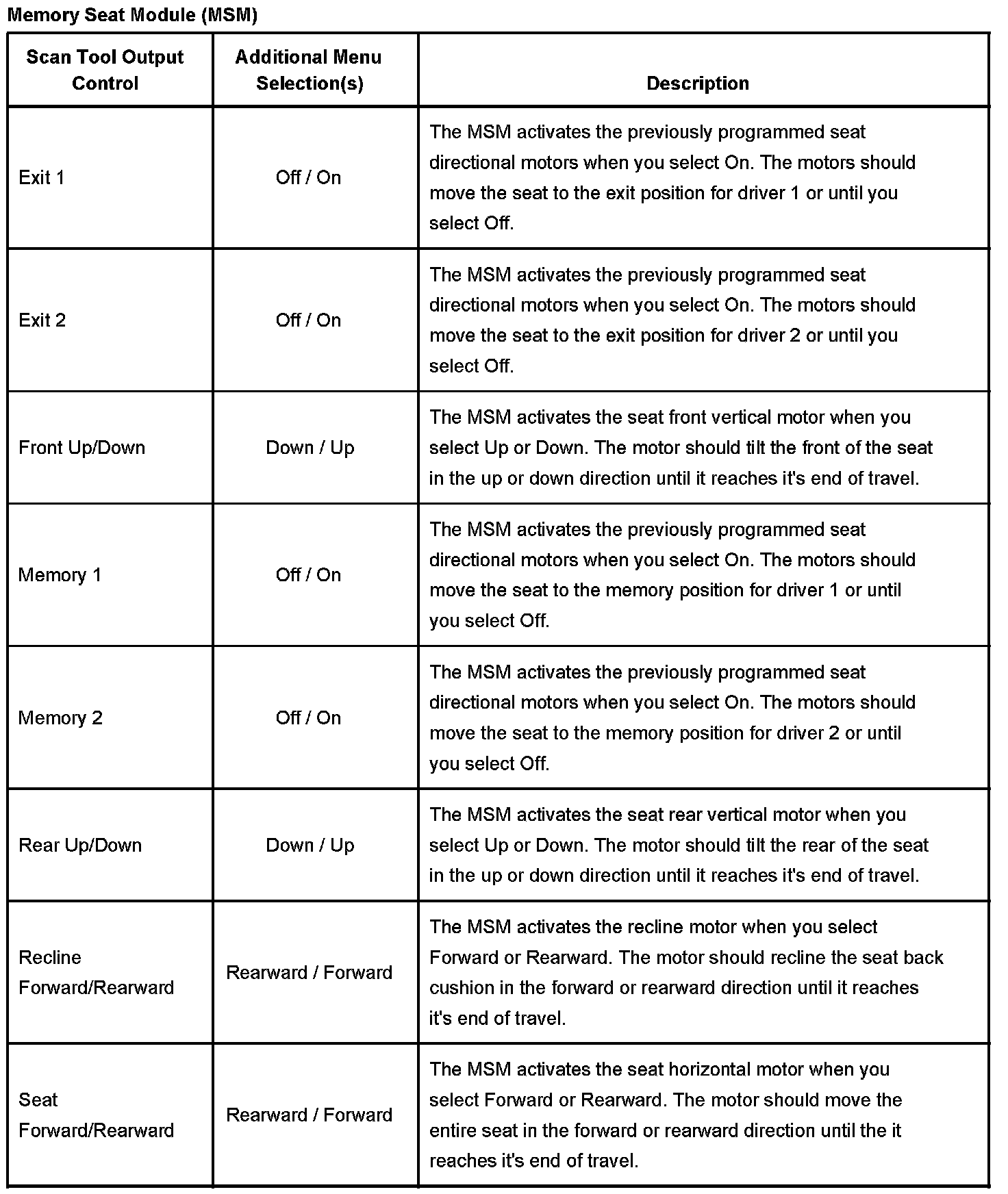

Memory Seat Module (MSM):



Rear Integration Module (RIM):
