Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Memory Seats Schematics
>>
Memory/Personalization Function SW
Memory/Personalization Function SW

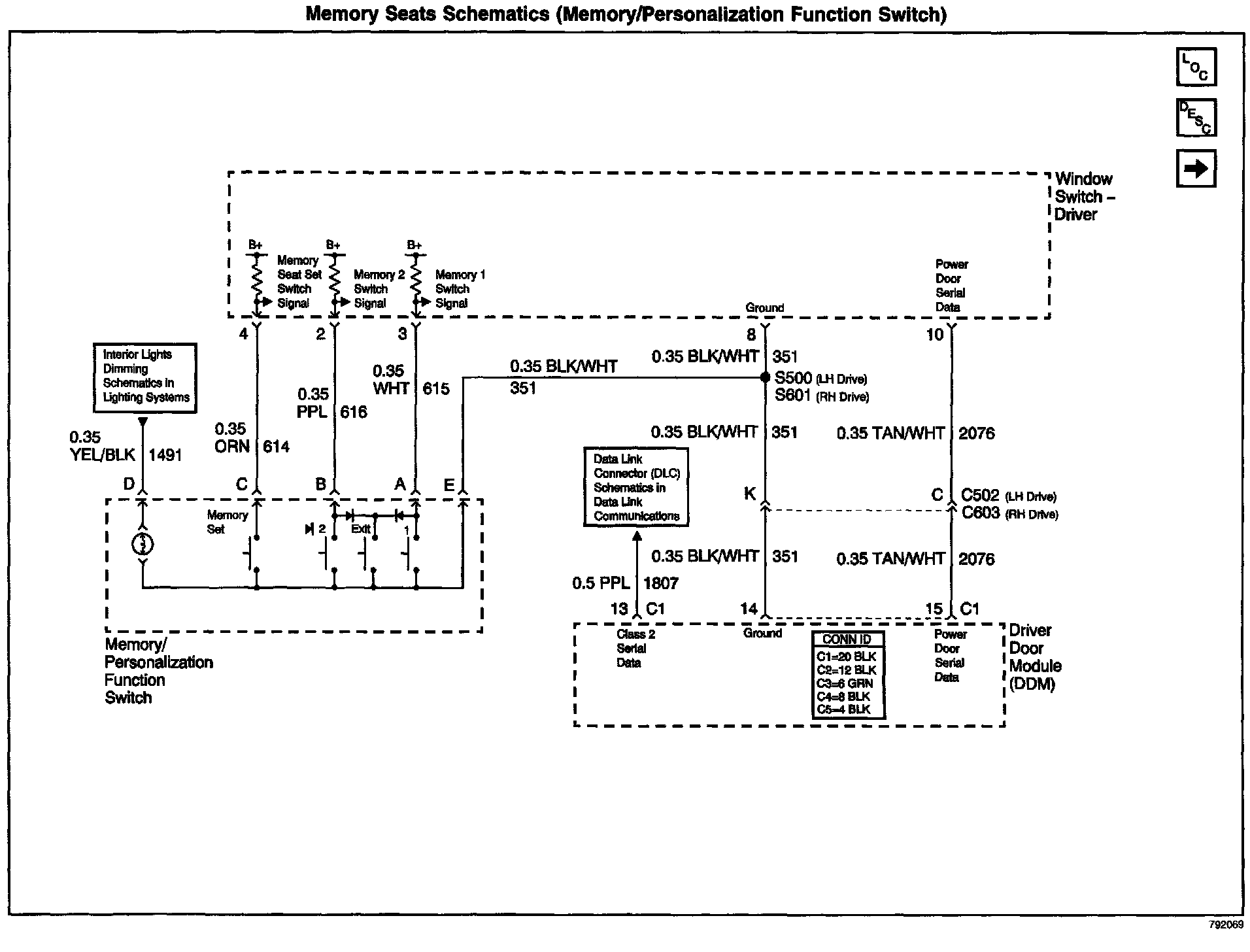

Memory Seats Schematics: Memory/Personalization Function Switch:
