Heated Seat Cushion Element

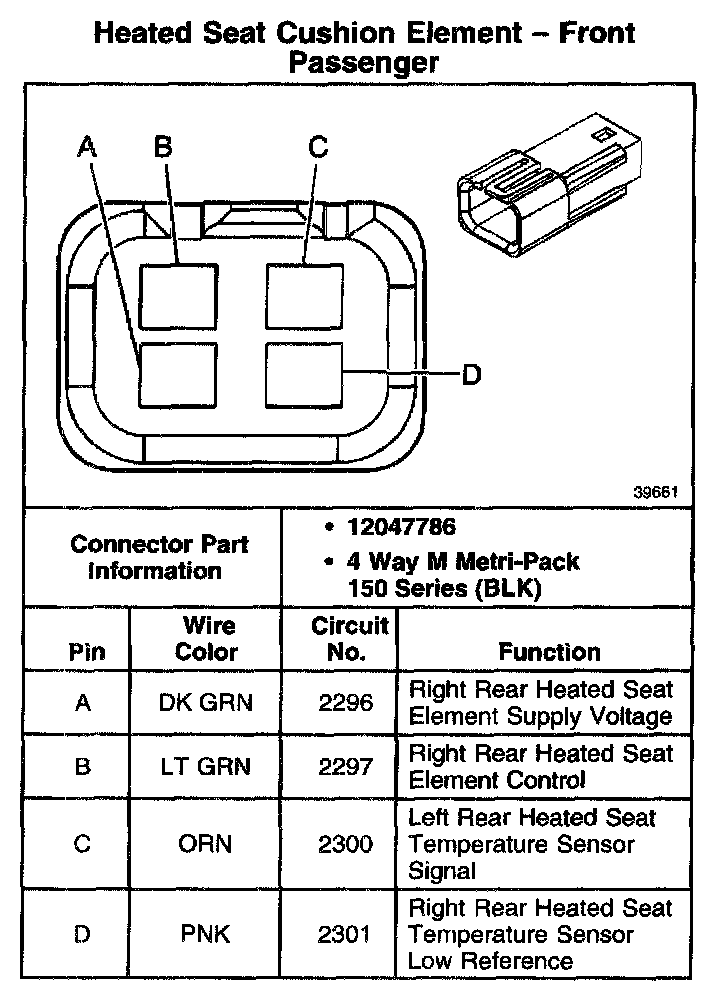

Heated Seat Cushion Element - Front Passenger:

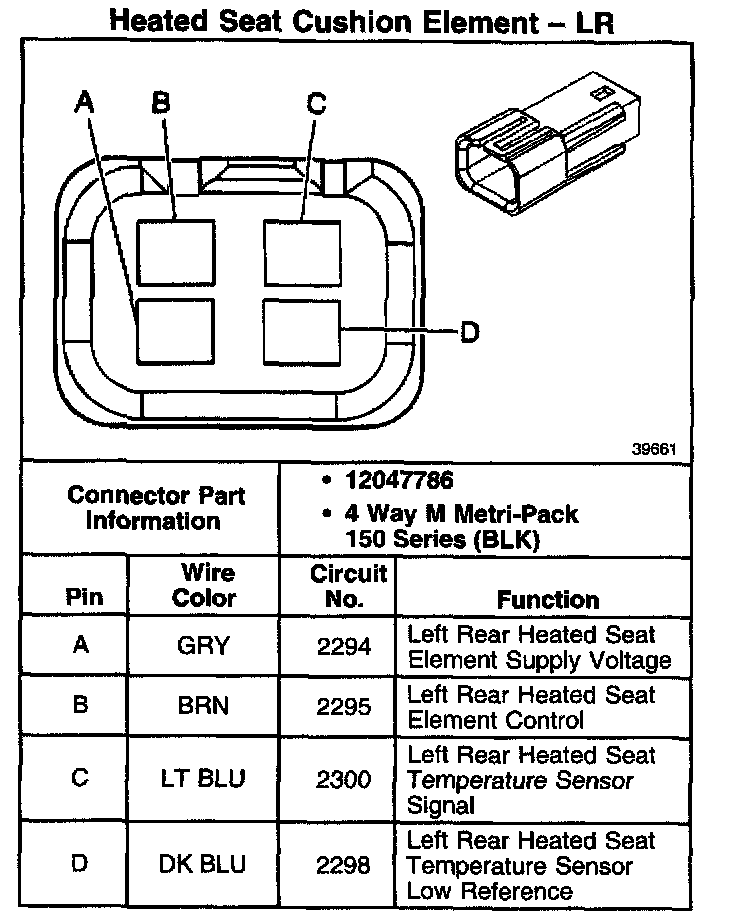

Heated Seat Cushion Element - LR:

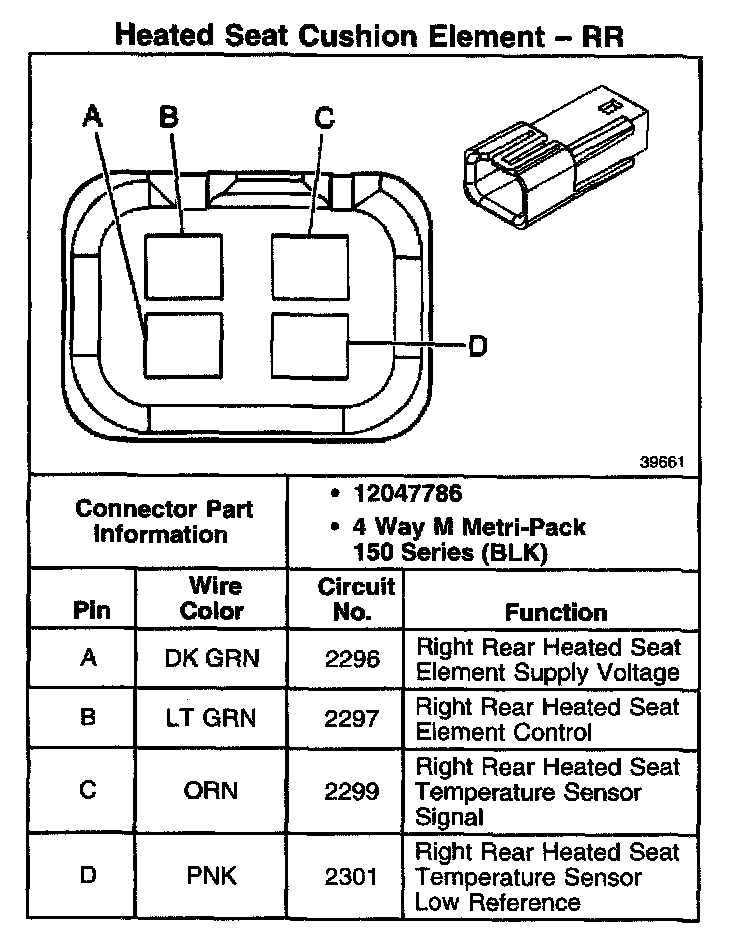

Heated Seat Cushion Element - RR:
