Home >> Cadillac >> 2002 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Diagrams >> Heated Seat Module >> RR

RR

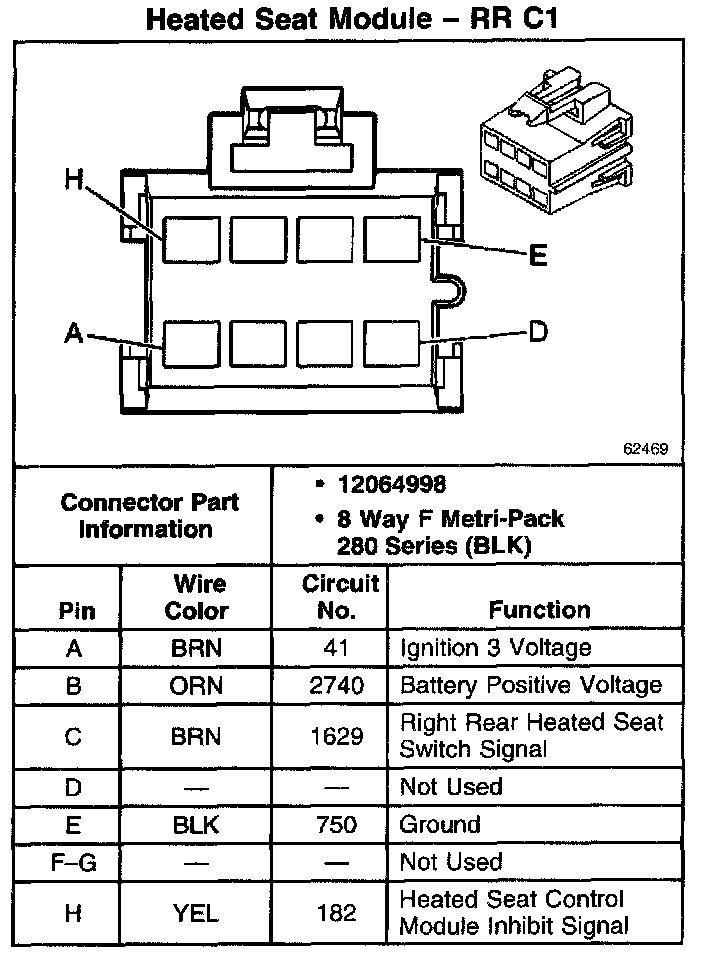

Heated Seat Module - RR C1:

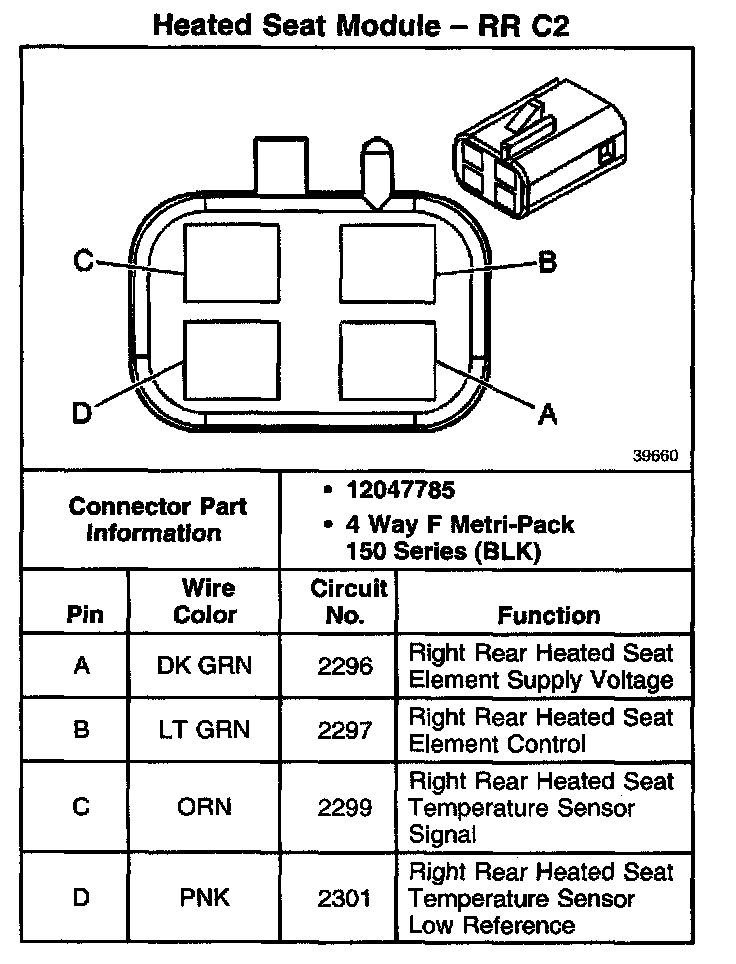

Heated Seat Module - RR C2:



Heated Seat Module - RR C3:
