Steering Gear
Steering Gear

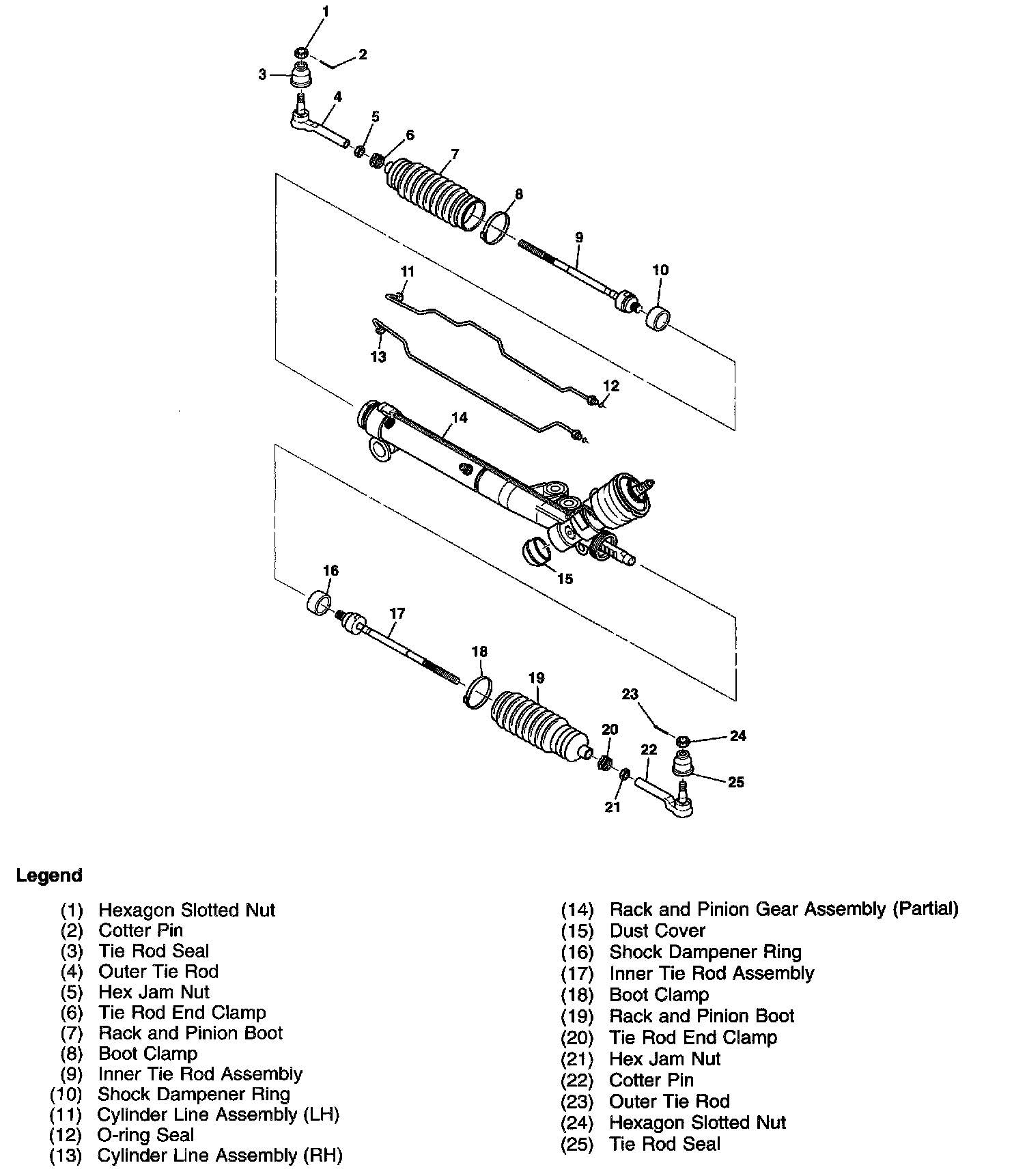

Power Rack and Pinion-End Take Off (Left Hand)

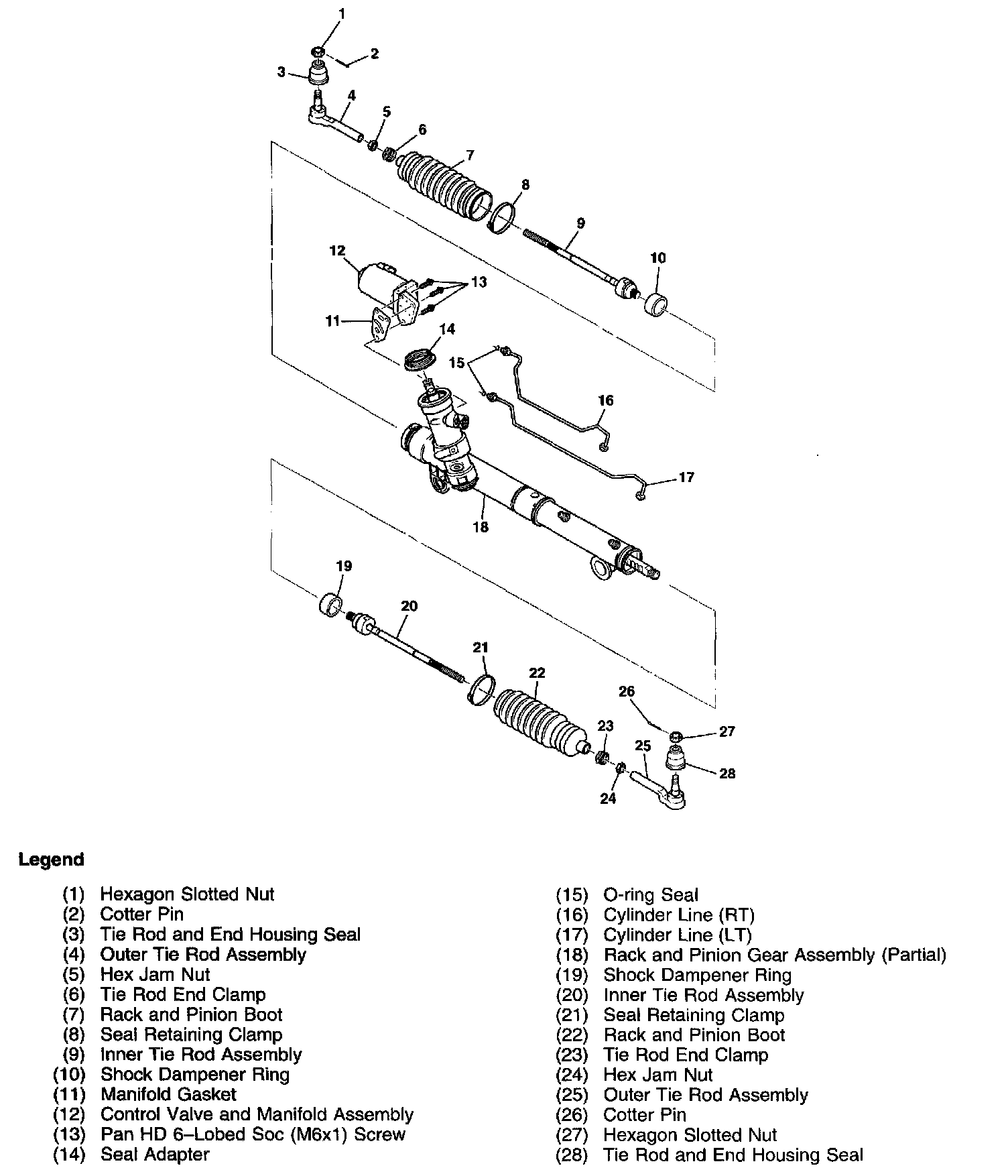

Power Rack and Pinion-End Take Off (Right Hand)
