Steering Column

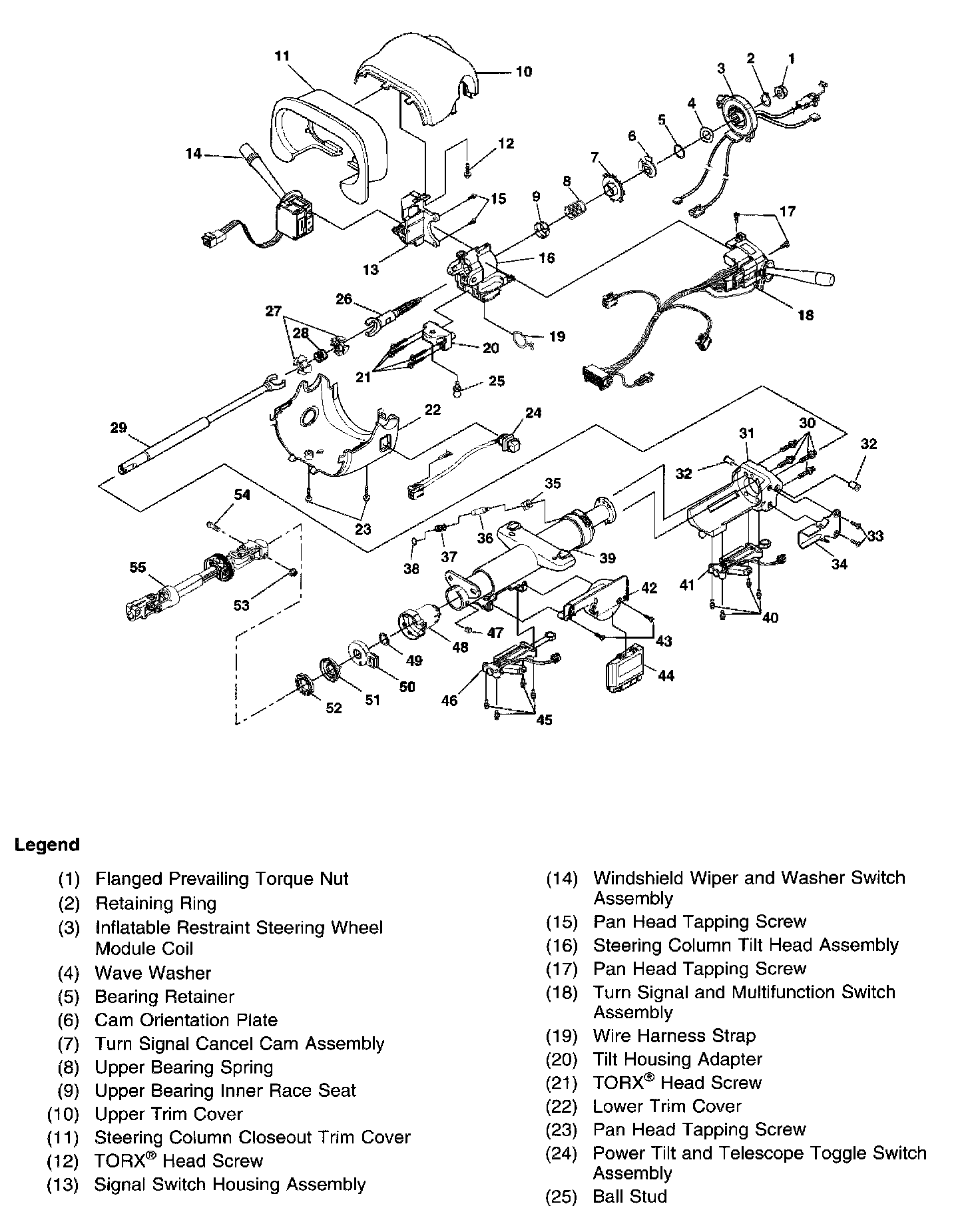

Steering Column Disassembled View (Right Hand)

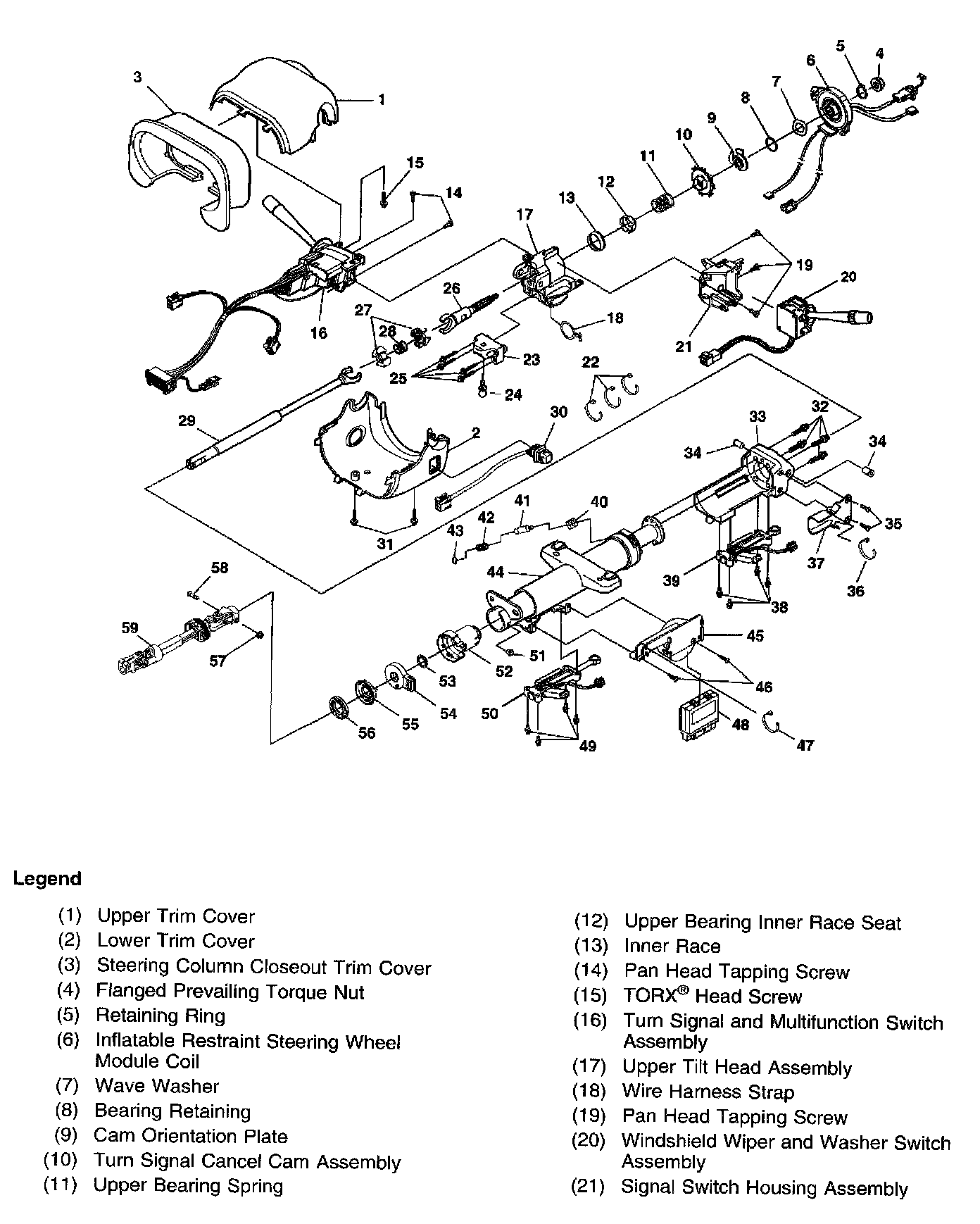

Steering Column Disassembled View (Power Tilt and Telescope)

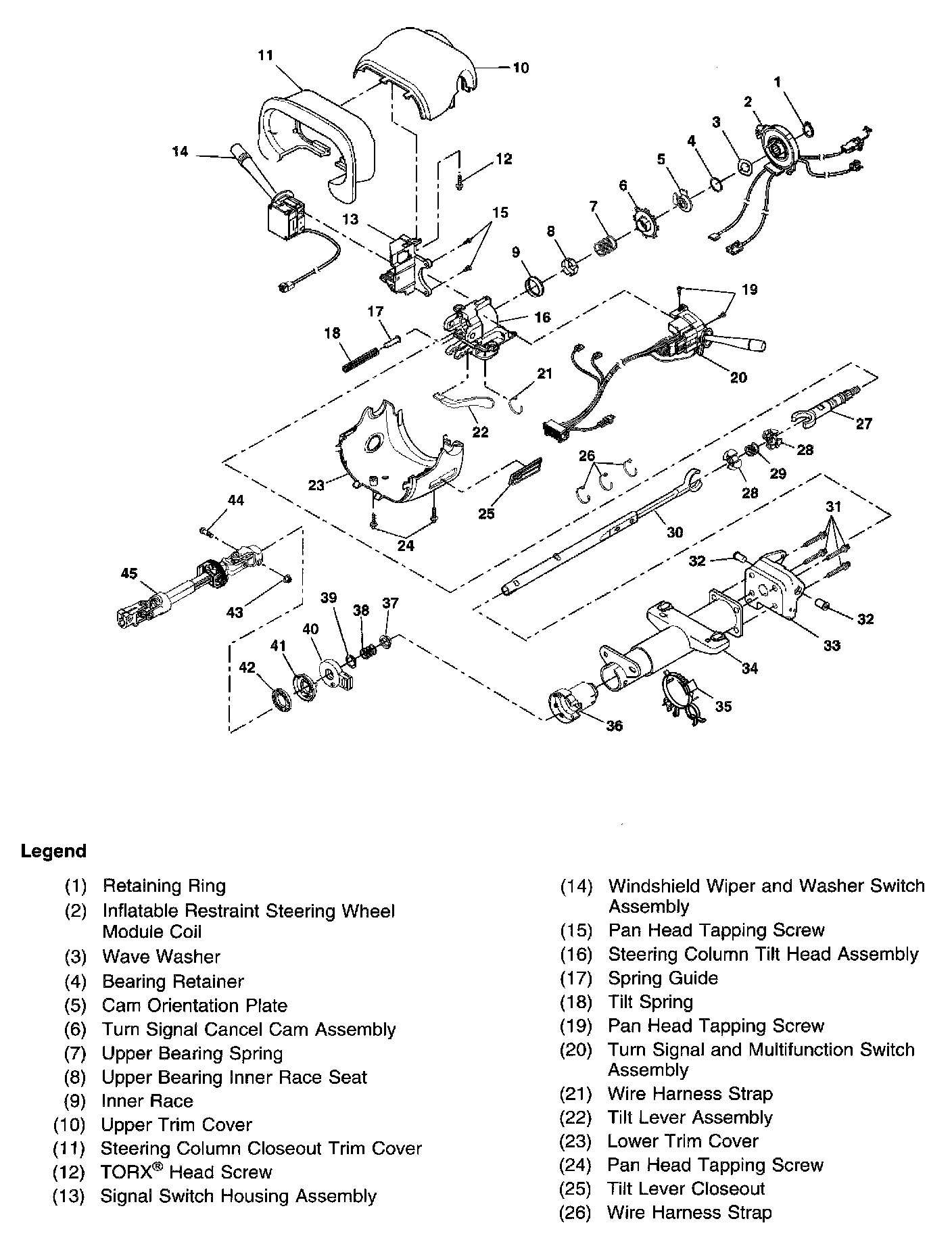

Steering Column Disassembled View (Manual Column)
