Home >> Cadillac >> 2001 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module >> Continuously Variable Road Sensing Suspension (CVRSS) Module >> Connector C1

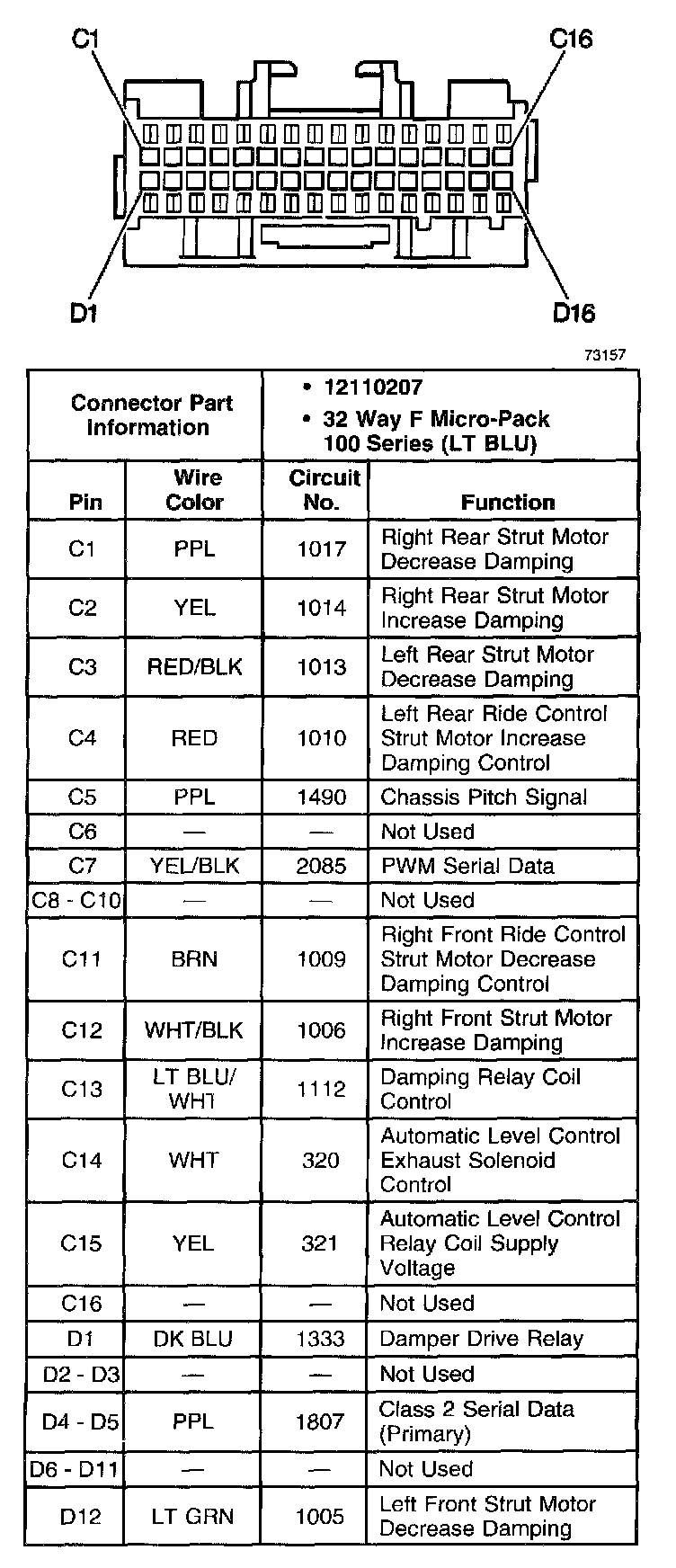

Connector C1




Part 1 of 2




Part 2 of 2
