Home >> Cadillac >> 2001 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Adaptive Seat Lumbar Module - Front Passenger

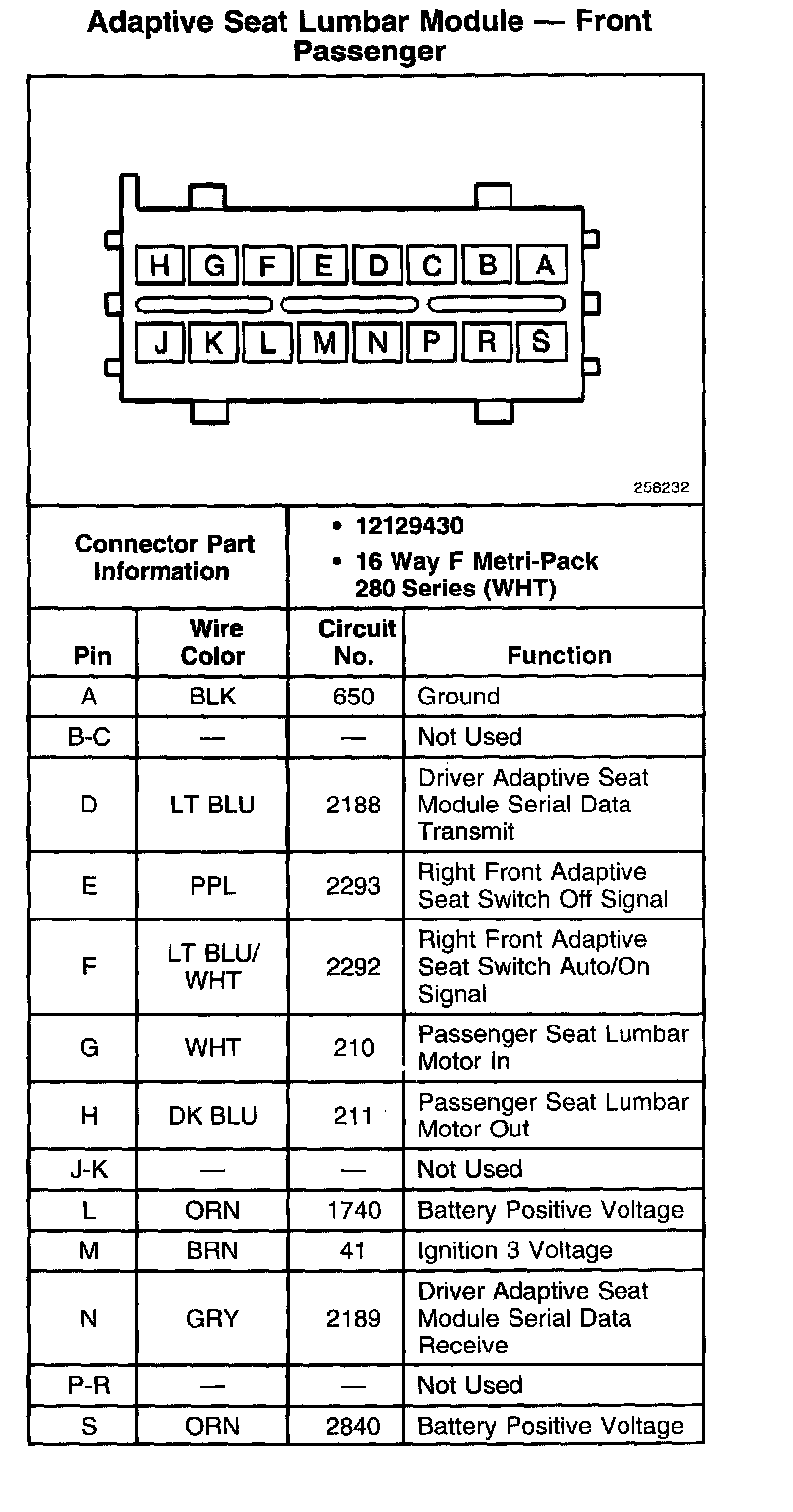

Adaptive Seat Lumbar Module - Front Passenger

Adaptive Seat Lumbar Module - Front Passenger:
